Discontinuation type

Functions at a glance

  • 2-wire connection (neutral conductor not required)
  • For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101.
  • For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M.
  • For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
  • Combinable with Busch-Watchdog extension insert 6805 U.
  • Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • suitable for: 230 V incandescent lamps, 230 V halogen lamps and low-voltage halogen lamps with conventional transformers or Busch Electronic Transformer.
    • Rated output: 60 - 420 W/VA
  • Temperature range (device): 0 °C - 35 °C
    • In case of electronic transformers, 5 % transformer losses.
    • In the case of conventional transformers, take ~20% transformer loss into account.
    • Not suitable for the activation of energy-saving lamps, conventional and electronic ballast units and LED lamps.
    • Not suitable for activating the staircase time delay.
    • Cannot be used to control relais.

      Order details

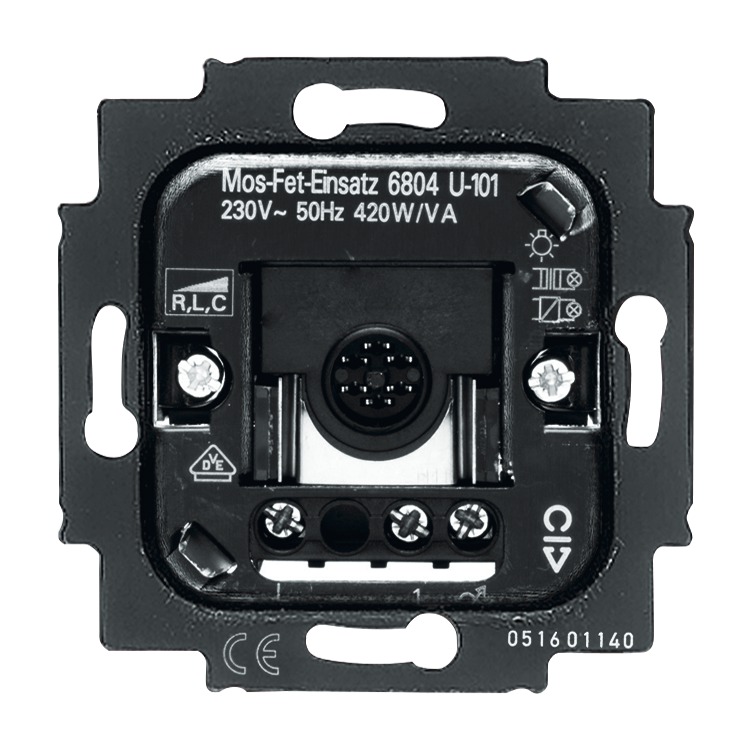

      Article No.:6804 U-101
      Order No.:2CKA006800A2218
      Customs tariff number:85365080
      Price group:19
      Price:67,00 EUR plus VAT
      Info sheet:Download PDF
      Compatible with
