Discontinuation type

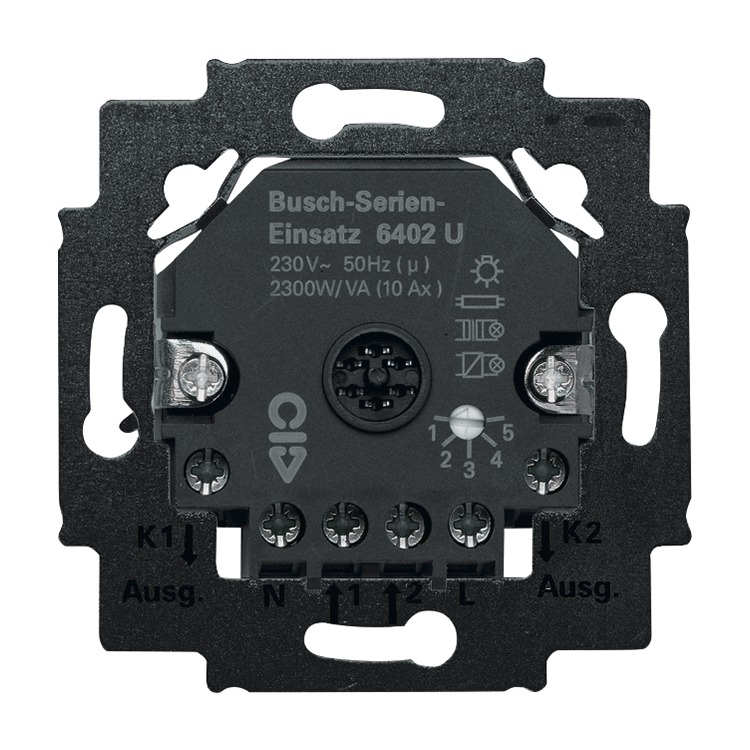

Busch-Universal 2gang 1way insert
Functions at a glance
- 3 wire connection (neutral conductor required).
- For the serial switch operating mode: 2 separate outputs, 2 separate extension inputs.
- For operation mode timer: output 1 (eg lighting), output 2: ON/Off delay in dependence of output 1 (eg fan control).

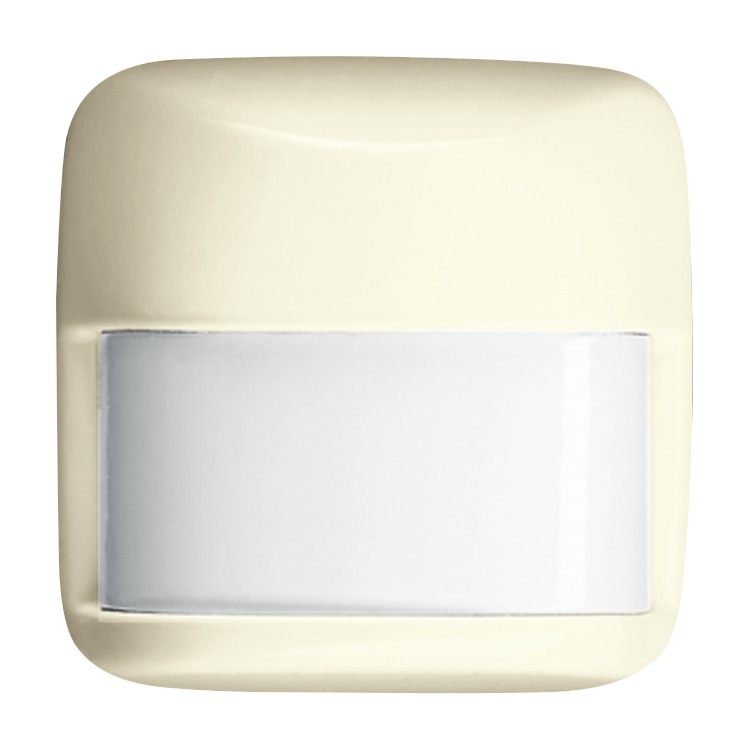

- For Busch-Watchdog 180 flush-mounted Sensor Standard 6810-21x-101.

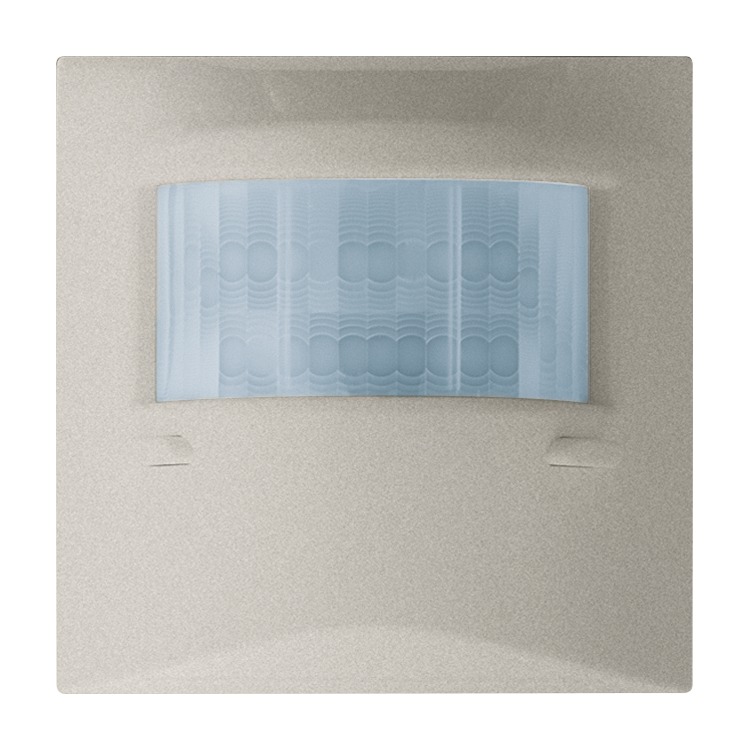

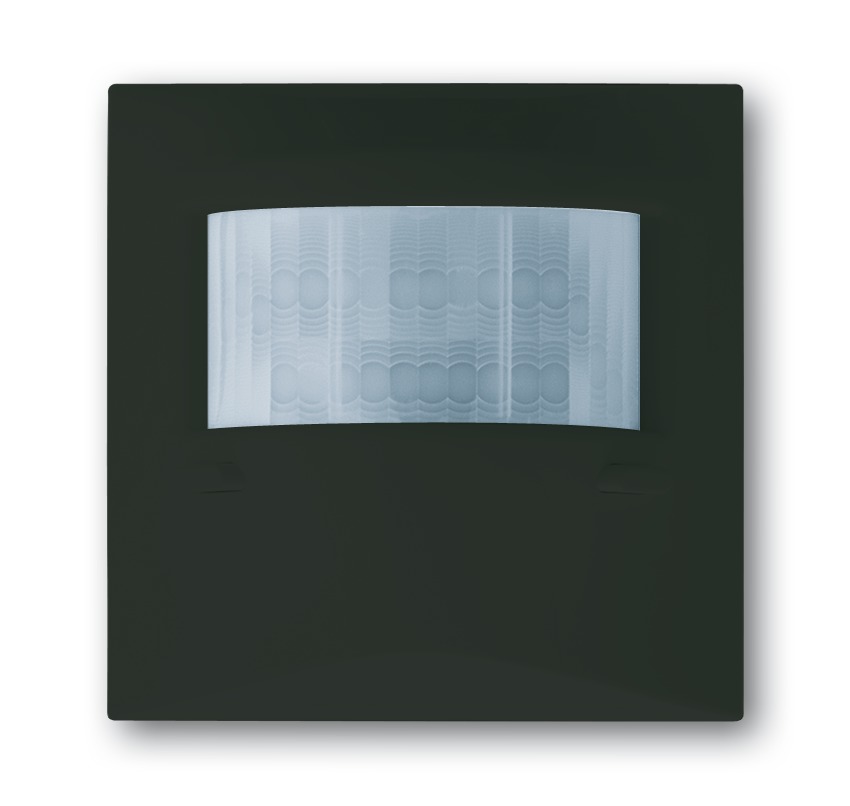

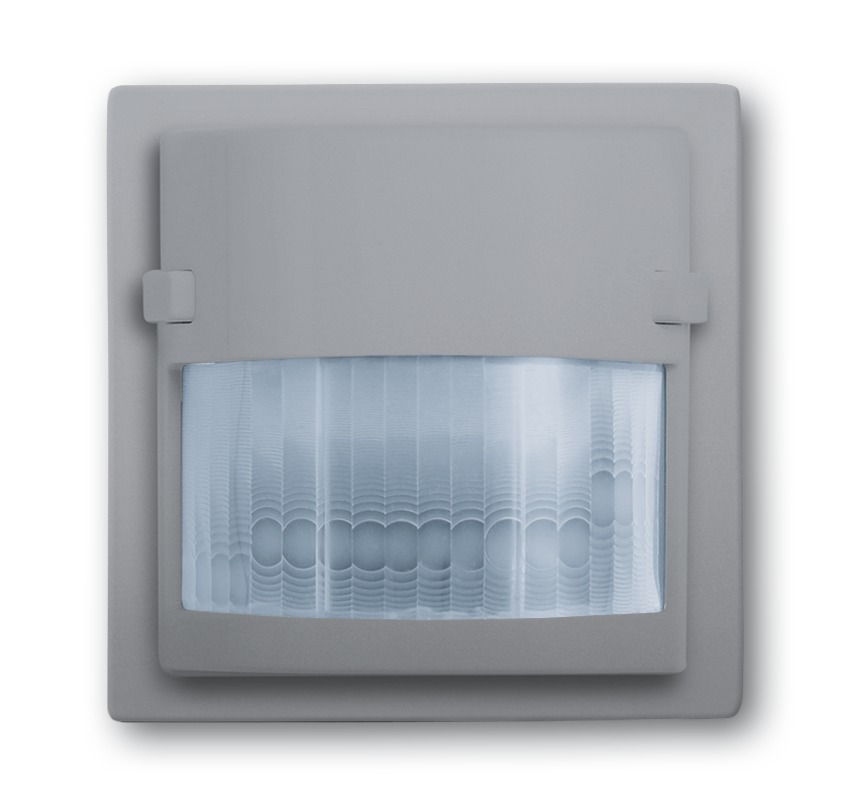

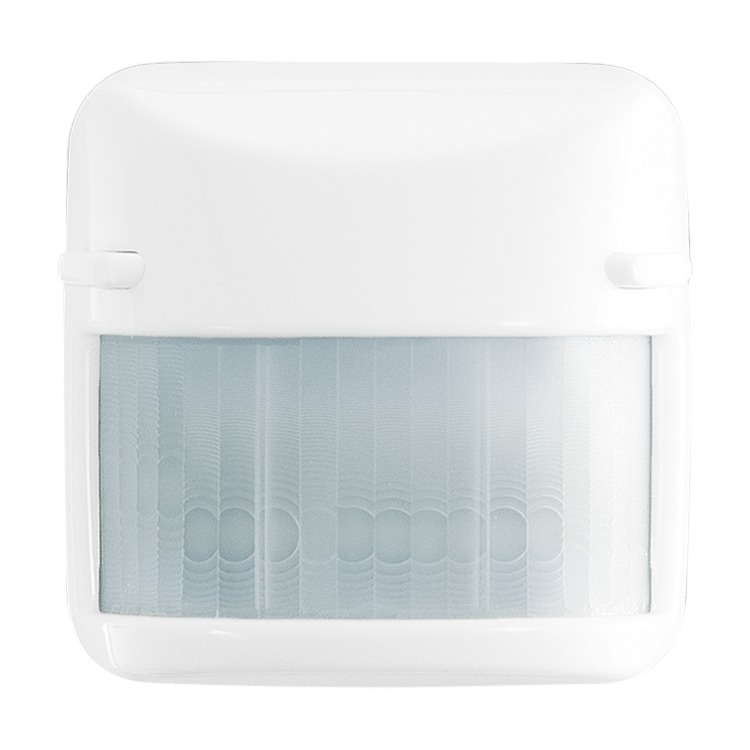

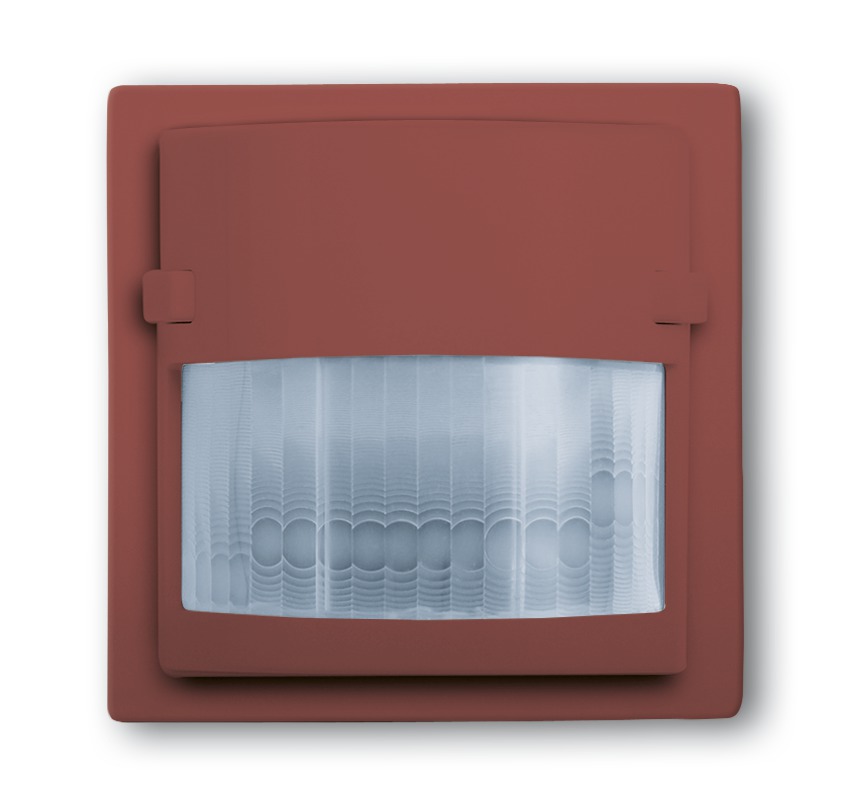

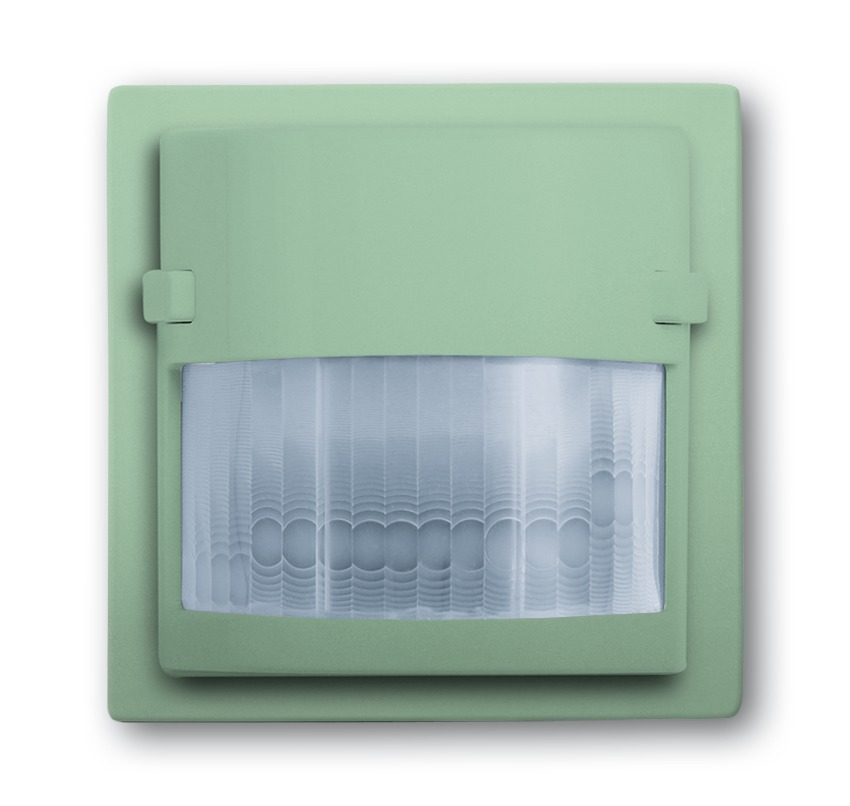

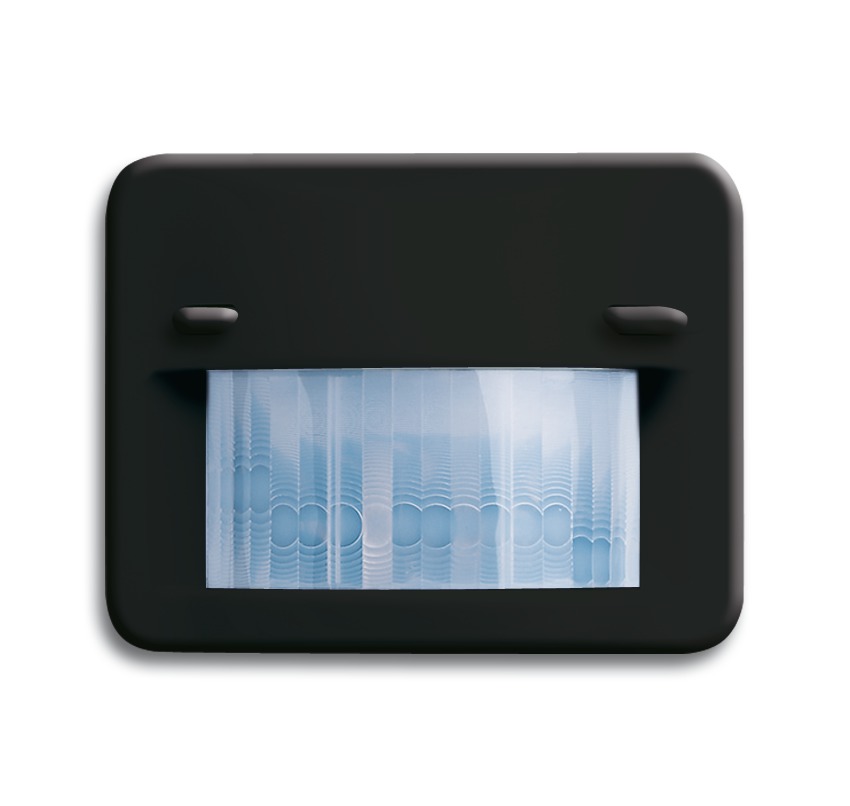

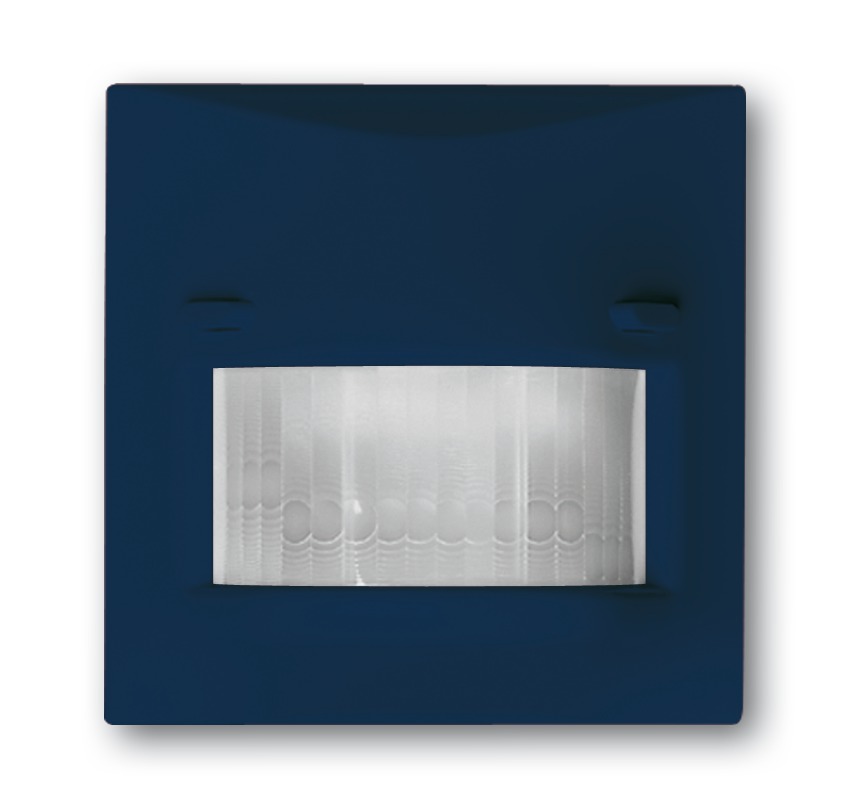

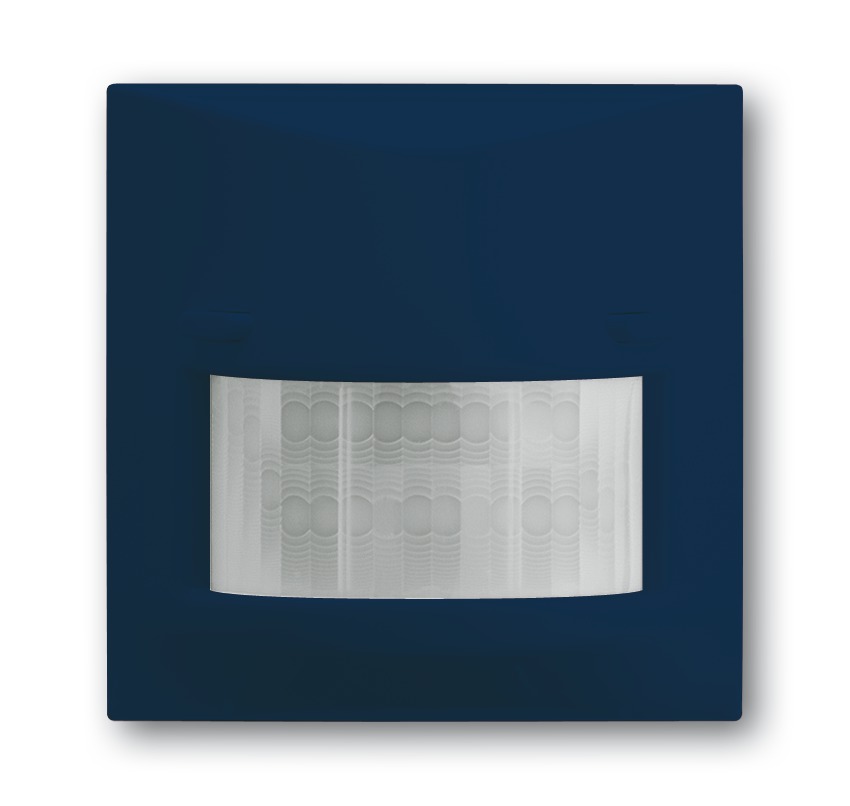

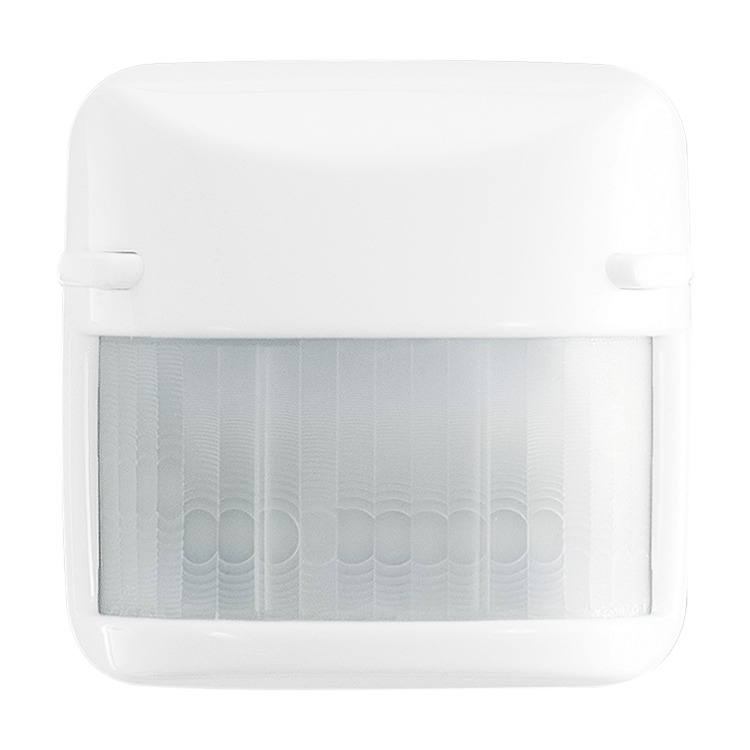

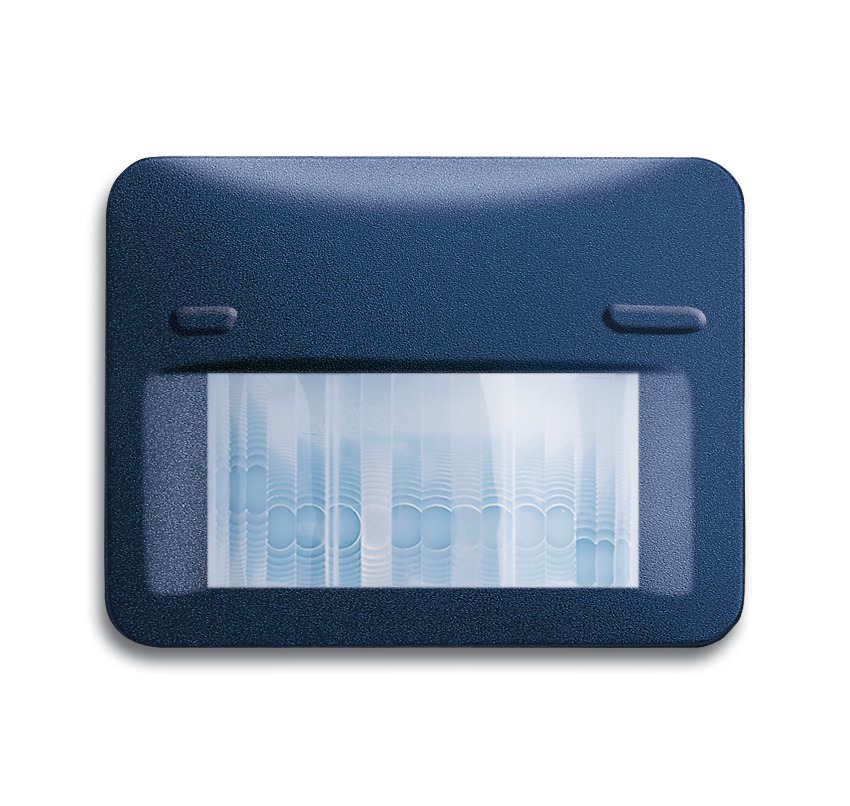

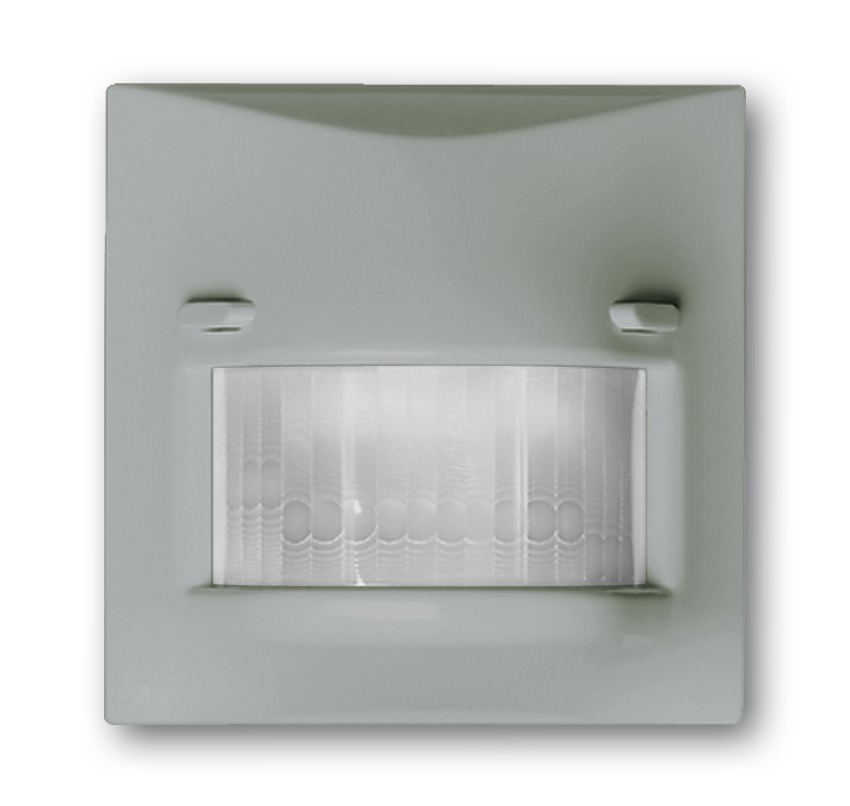

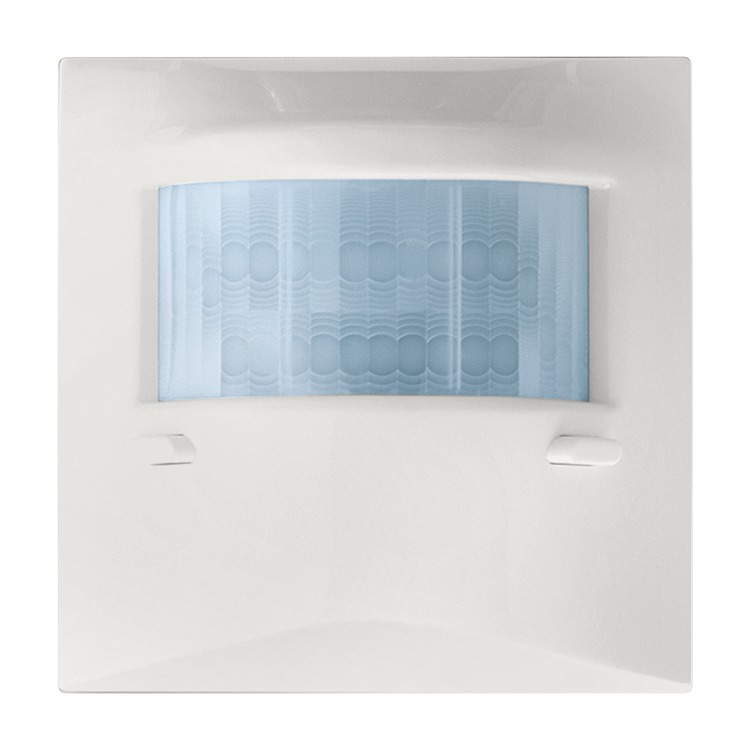

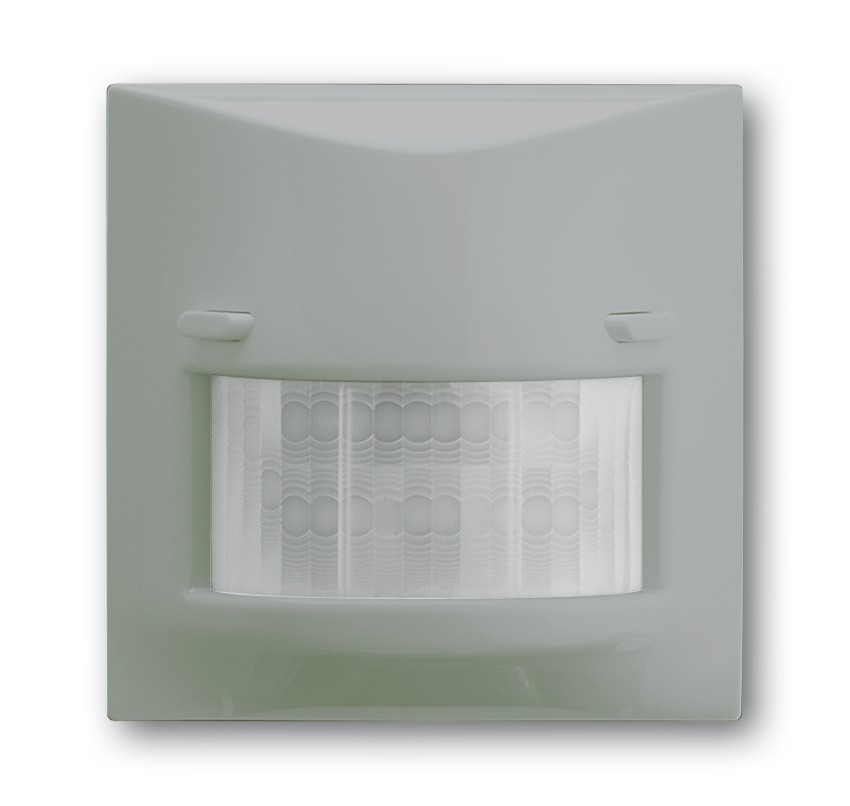

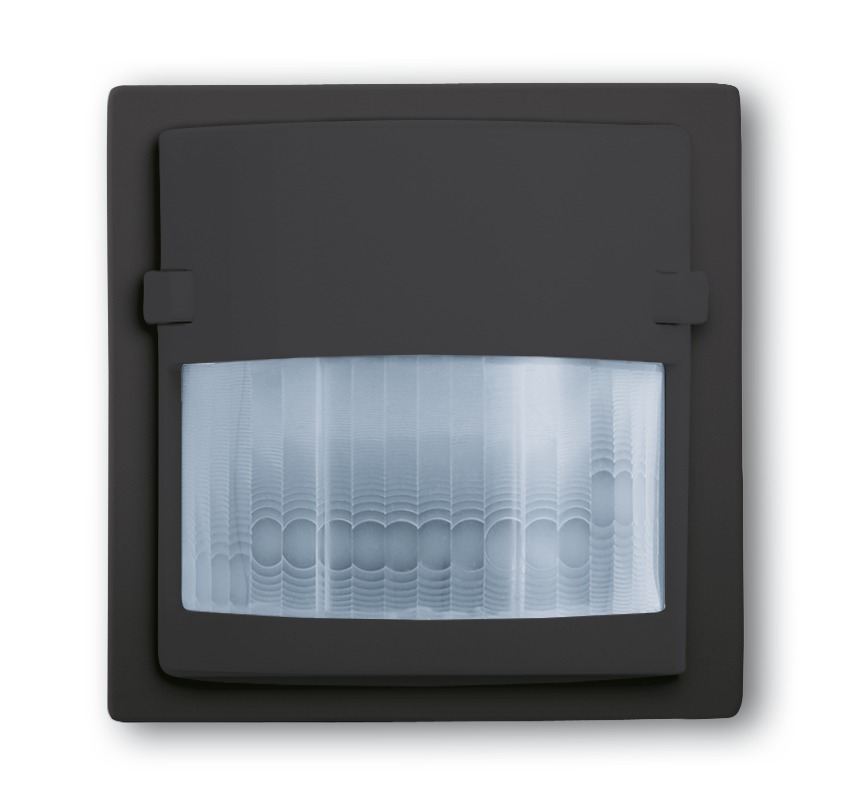

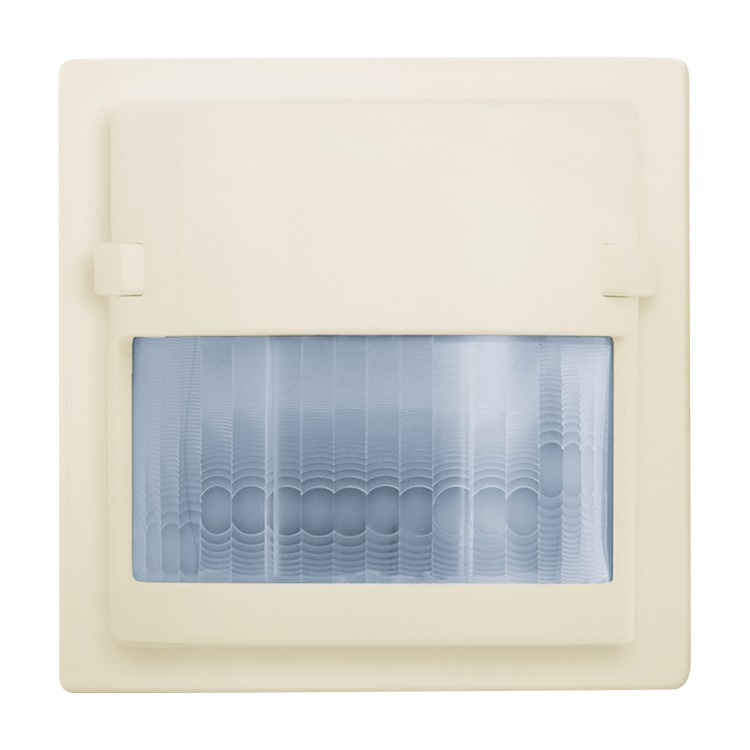

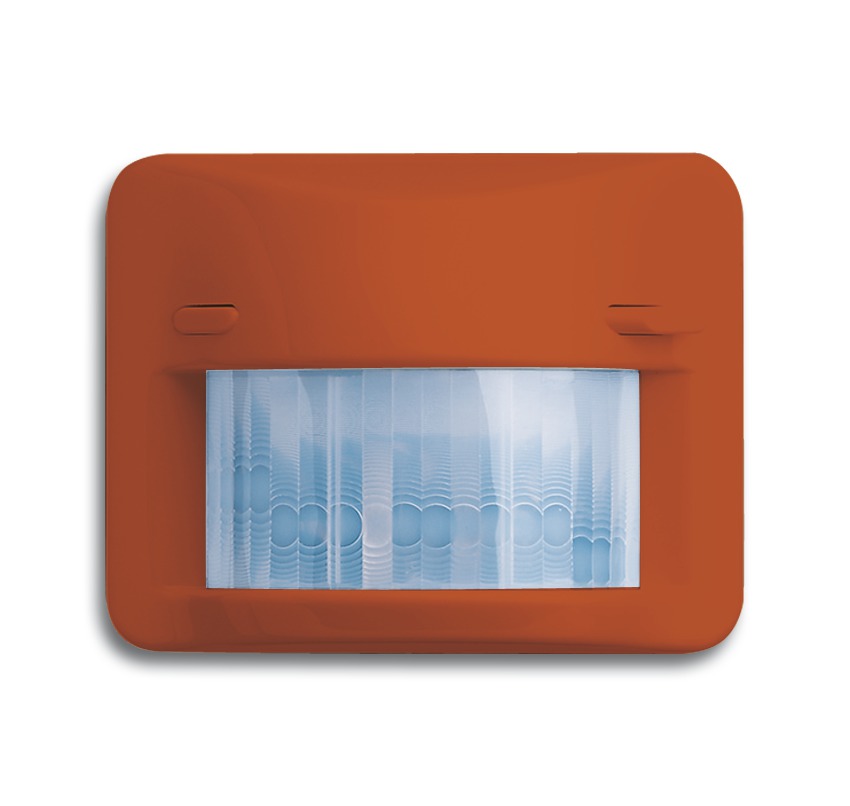

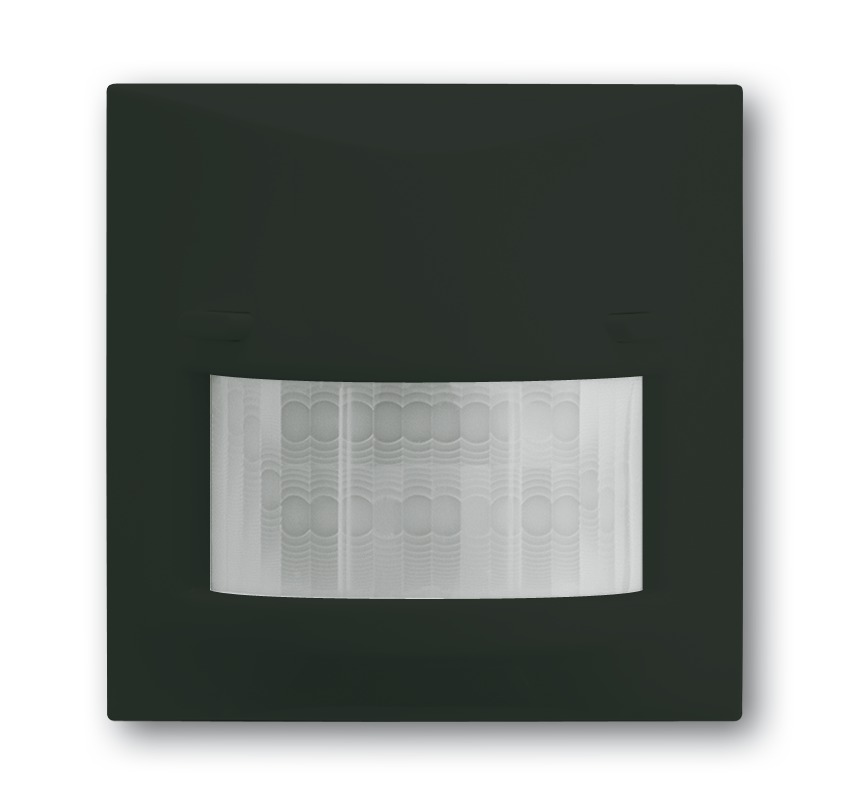

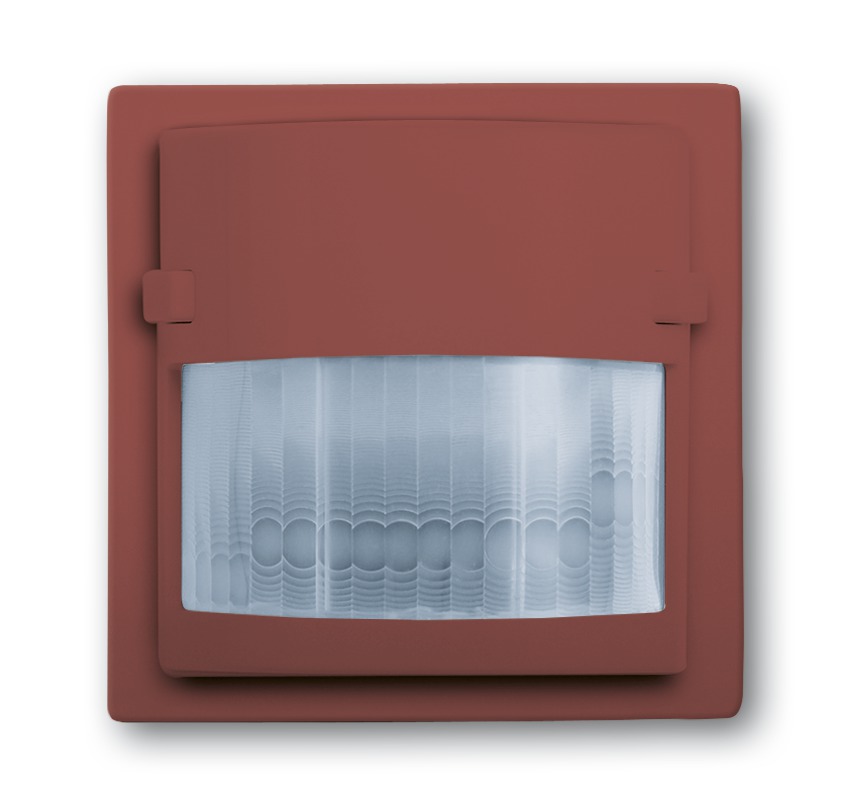

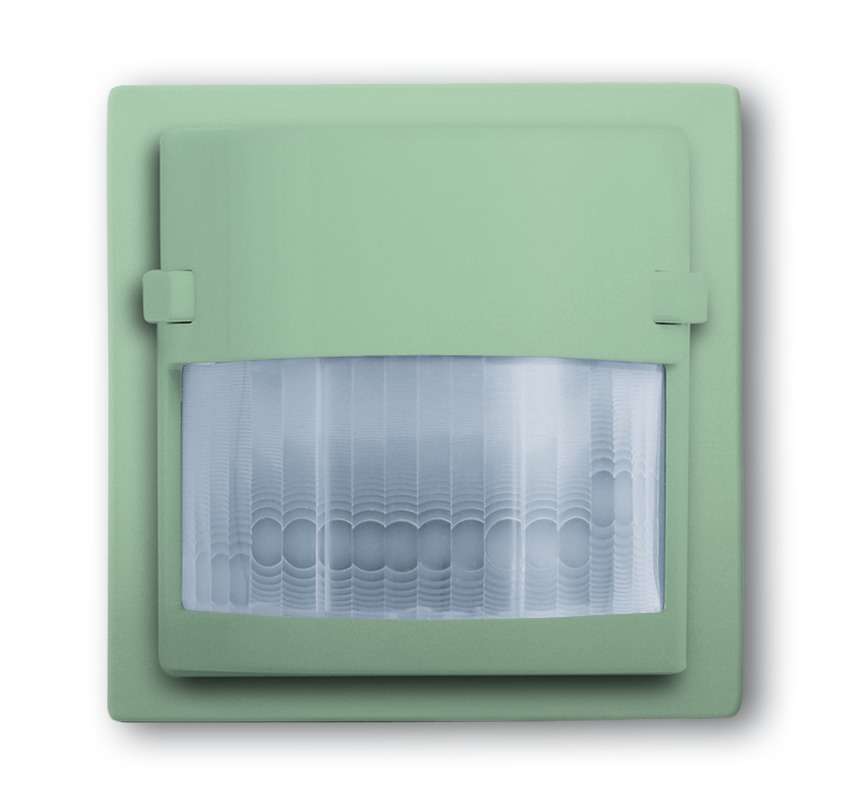

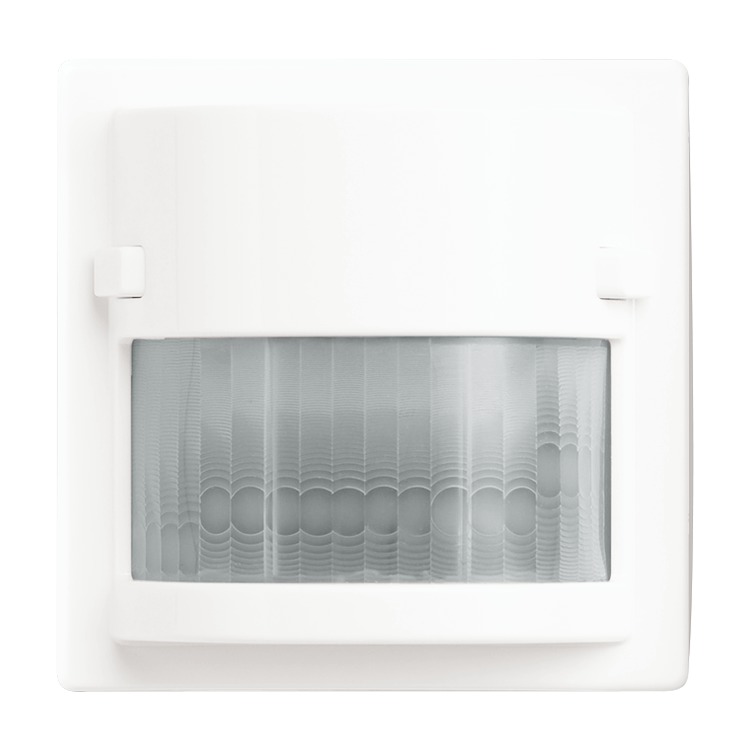

- For Busch-Watchdog 180 flush-mounted sensor Comfort II 6800-xxx-104 and 6800-xxx-104M.
- For Busch-Watchdog Presence tech 6813-xxx-101 und 6813/11-xxx.
- For Busch-Remote control IR control cover 6066-xxx-10x and 6067-xxx-10x.

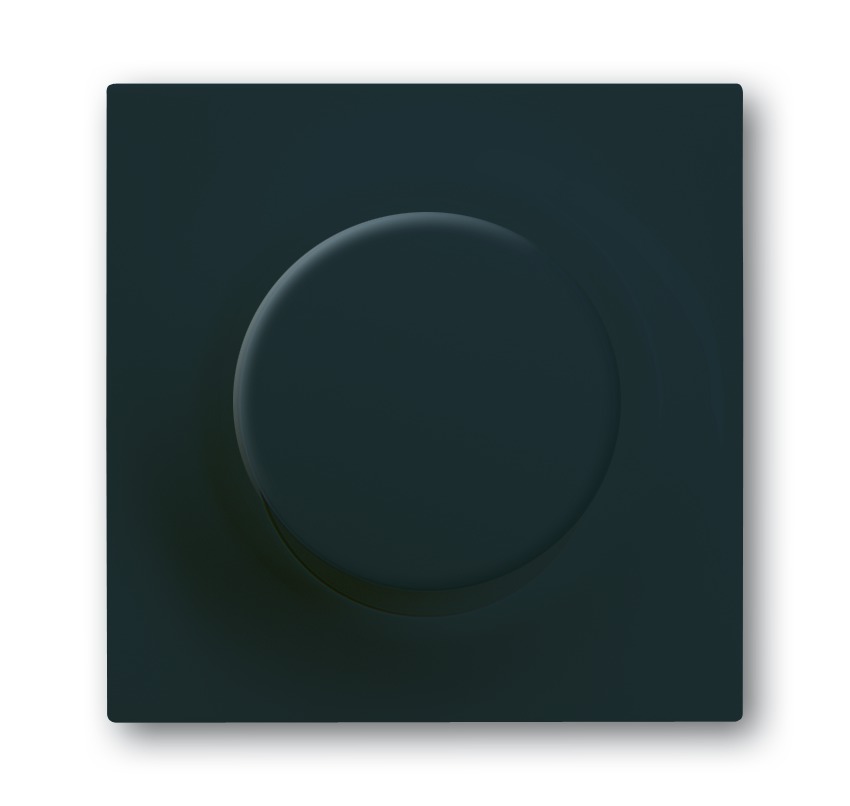

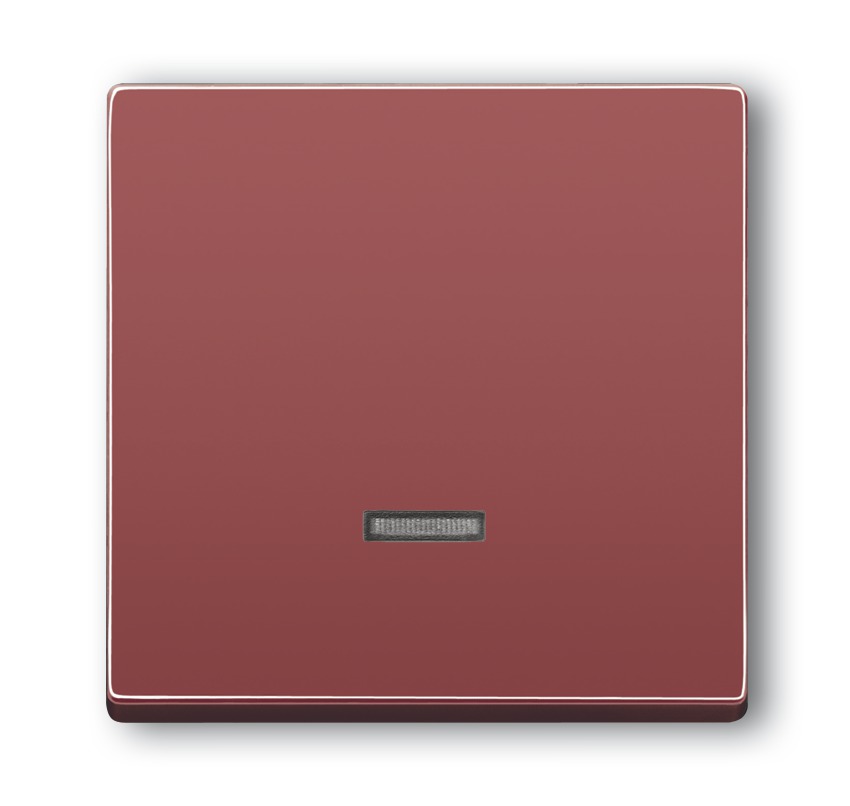

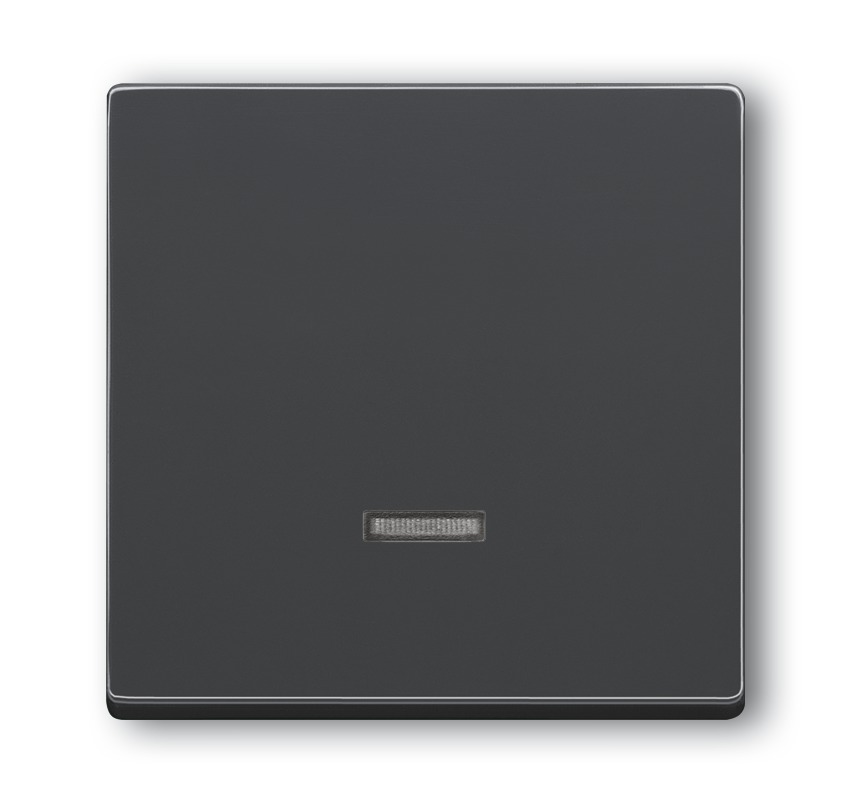

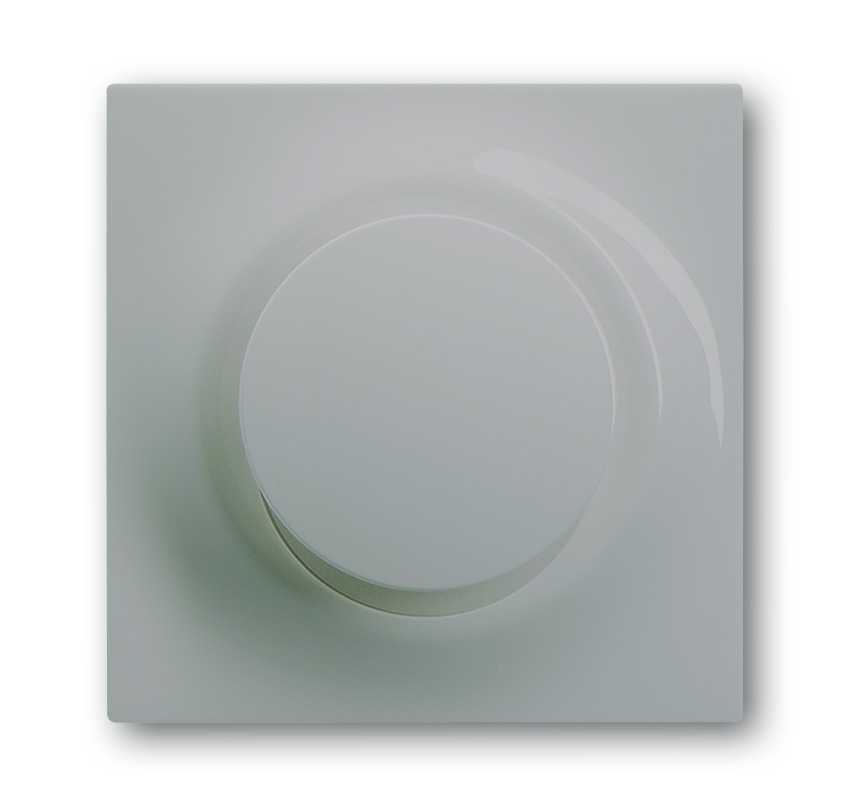

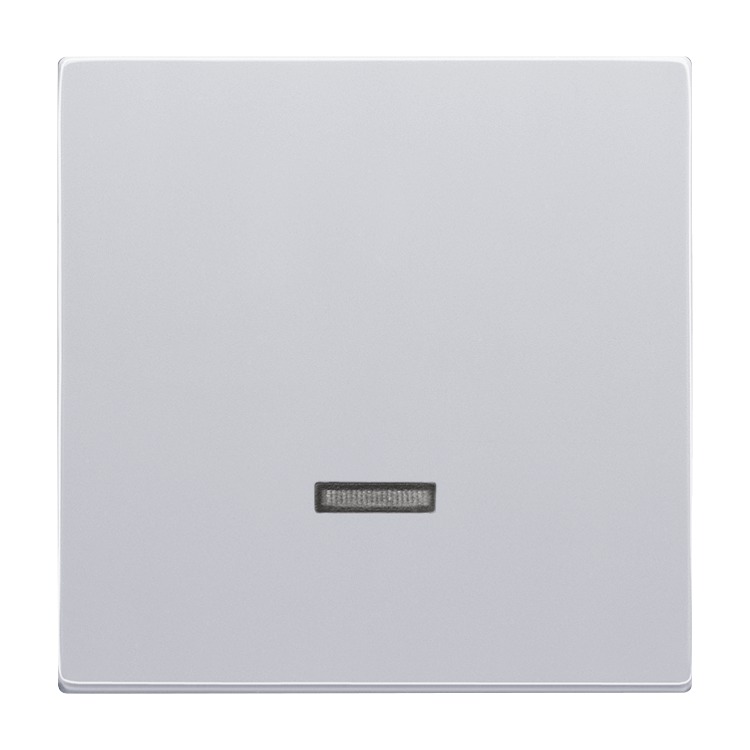

- For control cover 6430-xxx-10x and 6543-xxx-10x.
- Combinable with Busch-Watchdog extension insert 6805 U.
- Operation also possible via conventional push buttons (2020 US, 2021/6 UK).
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Outputs: 2 Normally open contact, potential-bound
- suitable for: 230 V incandescent lamps, 230 V halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are operated via transformers.
- Rated output: 2300 W/VA
- Rated current: 10 AX
- Temperature range (device): 0 °C - 35 °C
Order details
| Article No.: | 6402 U |
| Order No.: | 2CKA006401A0047 |
| EAN: | 4011395014134 |
| Customs tariff number: | 85365080 |
| Price group: | 19 |
| Price: | 162,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Dimensions
Wiring diagram

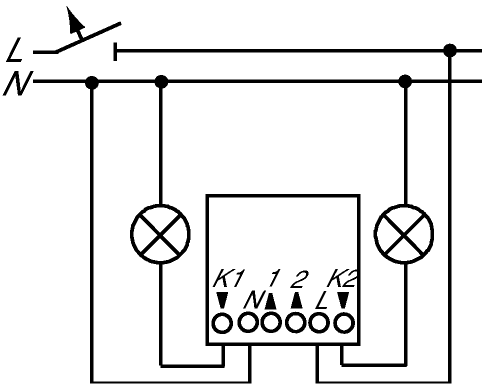

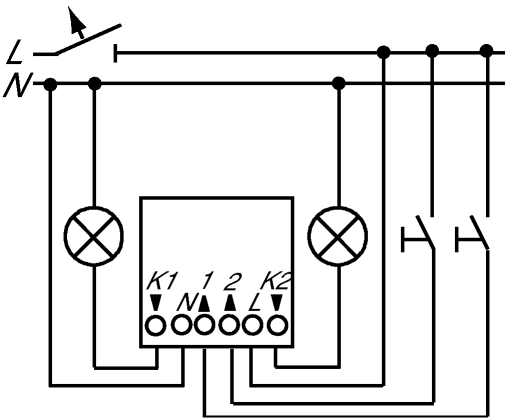

Actuation of two loads through Busch-Universal 2gang 1way insert 6402 U with 6430.... or 6066.... and parallel through push-switch (operating mode 1). This function is not possible in combination with a Busch-Watchdog Presence tech 6813 U-101.

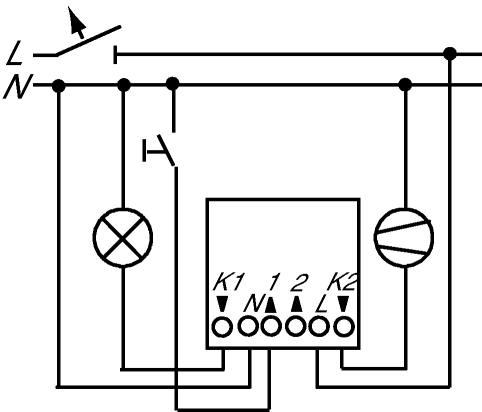

Actuation of a load through (Output 1) using Busch-Watchdog UP, which can also be controlled in parallel using a pushbutton. Output 2 (heating/cooling/ventilation) actuates in a delayed manner depending on Output 1 according to operation modes 2-5.
