Discontinuation type

Functions at a glance

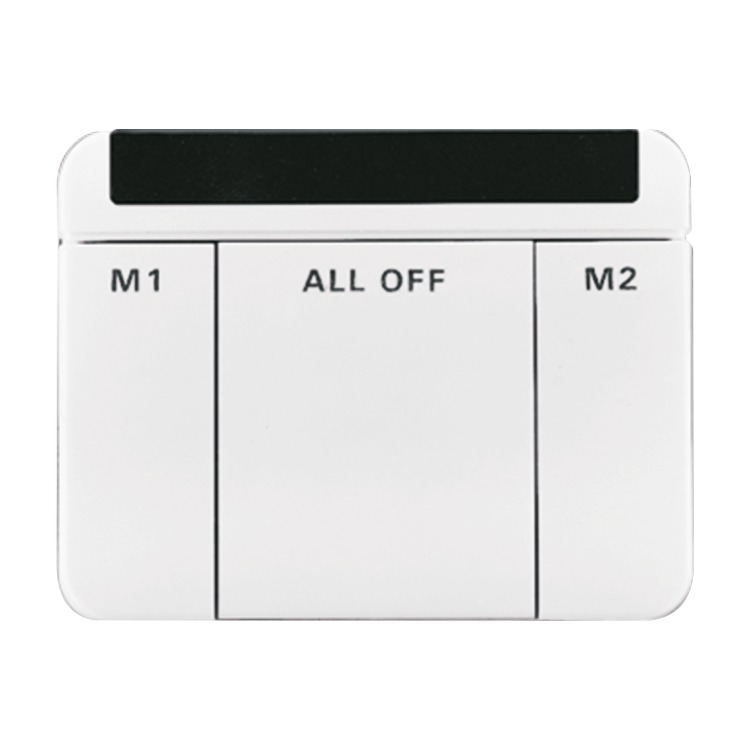

  • Battery-supplied infrared remote control.
  • For IR receiver and KNX flush-mounted IR interfaces (selection of 2 memo functions for each address group and ALL OFF).
  • Address group switch-over (1-5/6-10)
  • Supply: 6 V Flat-Pack battery (e.g. Duracell 7 K 67, not included in delivery)
  • Range: 15 m
    • For programming the memory M1 and M2 the IR Mobile Remote Control 6010-xx is required.
    • For function together with KNX flush-mounted, infrared interface, see Technical Manual.

      Order details

      Article No.:6020-24G
      Order No.:2CKA006020A0994
      EAN:4011395747902
      Customs tariff number:85176200
      Price group:19
      Price:134,00 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Technical manual
      Tips / Tricks
      Dimensions
      IR wall-mounted transmitters 6020-… and 6021-…
      Horizontal/vertical transmission range of wall-mounted transmitters 6020-... and 6021-...
      Transmission range of wall-mounted transmitters 6020-… and 6021-… (100% = 15 m)
      Reception range of flush-mounted receivers and socket receivers (100 % = 15 m)
      Horizontal detection of the flush-mounted and socket outlet receivers
      Compatible with
