Discontinuation type

Functions at a glance

  • Busch-AudioWorld® system amplifier.
  • For language announcements to 15 individual call zones.
  • With additional broadcast function
  • With 8 direct buttons for pre-selecting call zones
  • With gooseneck microphone.
  • For individual volume control.
  • For switching between Busch-AudioWorld® system channel 1 and 2.
  • For switching of the central radio channel.
  • Optional deactivation of announcements (do not disturb).
  • For mono/stereo operation.
  • With noise control function.
  • With time display.
  • With acoustic monitoring function (baby monitor).
  • Permitted speaker impedance: 8 - 16 Ohm
  • Rated voltage: 15 V-
  • Protection class (device): IP 20, SELV

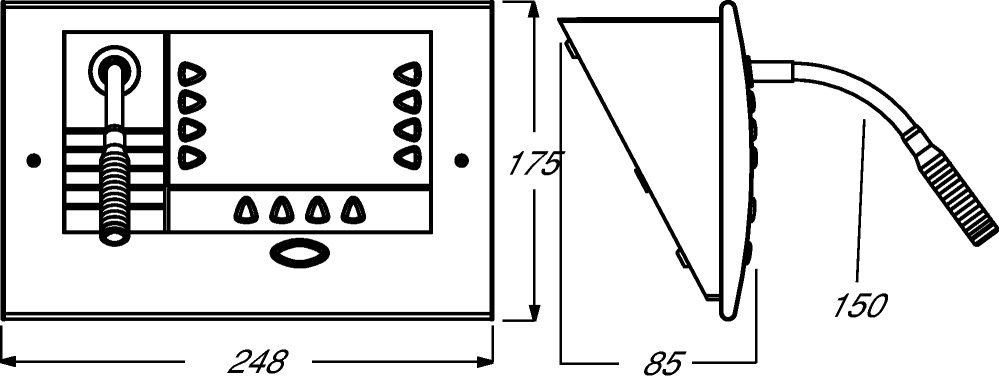

  • Dimensions: (L x W x D): 85 mm x 248 mm x 175 mm
  • Mounting depth: 85 mm

    Order details

    Article No.:8205
    Order No.:2CKA008200A0120
    Customs tariff number:85184000
    Price group:19
    Price:622,00 EUR plus VAT
    Info sheet:Download PDF

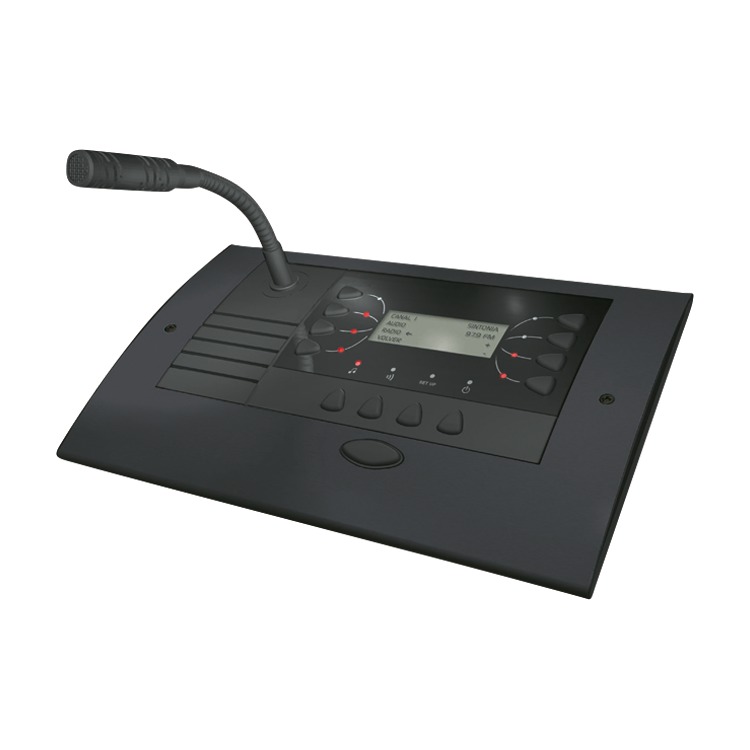

    Busch AudioWorld® microphone console 8205

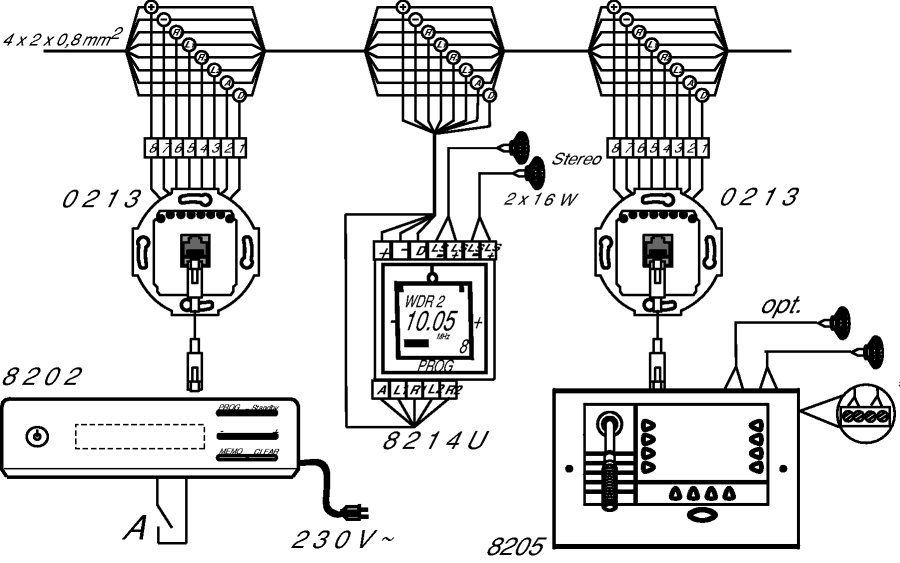

    Wiring diagram
