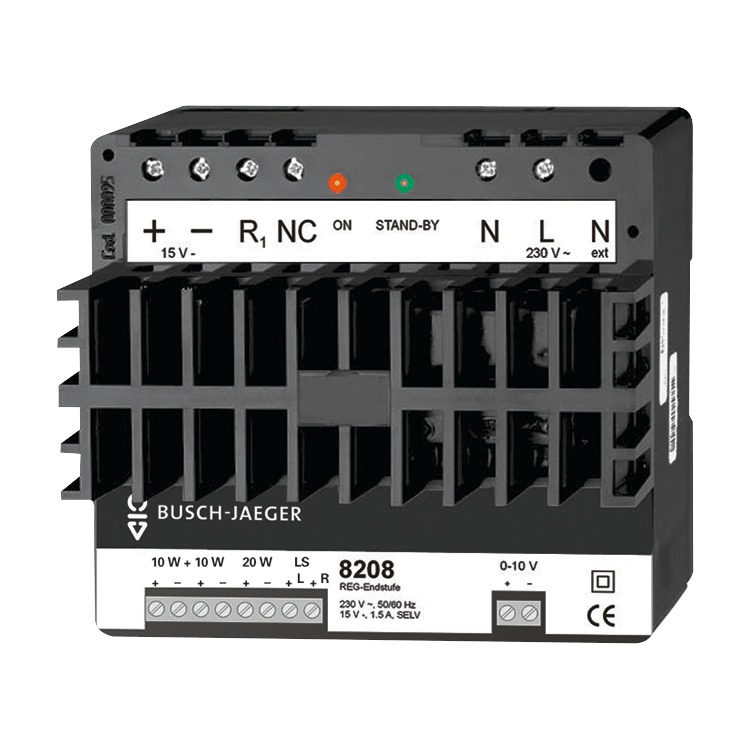

MDRC (modular DIN rail component) amplifier
Functions at a glance
- Busch-AudioWorld® system amplifier.
- Can be operated in >Booster< mode with system amplifier 8205, 8211 U, or 8214 U.
- Can be operated in "standalone" mode with one audio input 8210 U.
- For increasing the output power to 2 x 10 W.
- Can be used in bridge operation.
- For extending the number of speakers at one amplifier insert.
- For max. 16 Busch-AudioWorld® speakers.
- Permitted speaker impedance: 2 - 16 Ohm
- With integrated 1-10 V interface for volume control.
- Can be combined with Busch electronic potentiometer insert 2112 U-101.
- Rated voltage: 230 V~, +10 % / -10 %
- Output voltage: 15 V-
- Rated frequency: 50 Hz
- Rated current: 1.5 A
- Protection class (device): IP 20, SELV
- Dimensions: (L x W x D): 110 mm x 125 mm x 70 mm
- Module width: 7
- Division units: 7
Order details
| Article No.: | 8208 |
| Order No.: | 2CKA008200A0107 |
| EAN: | 4011395112427 |
| Customs tariff number: | 85184000 |
| Price group: | 19 |
| Price: | 310,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates

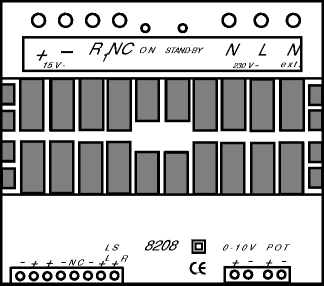

Dimensions
Wiring diagram

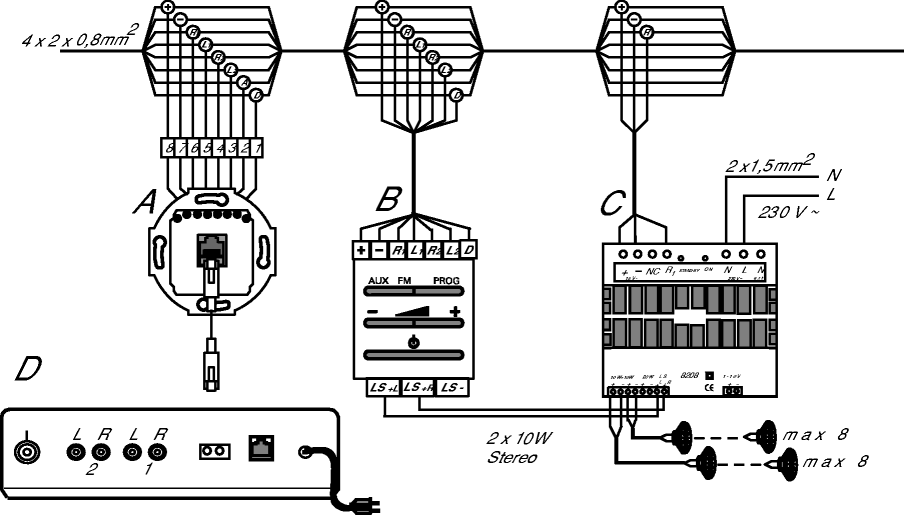

System diagram with base station D= 8202; A=0213; ; B =8211U; C=8208

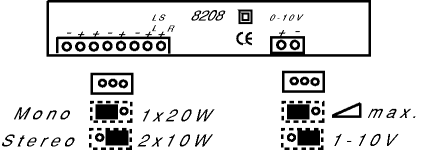

Area of application Setting Operating device
1 Stereo 2 x 10 W STEREO
2 Stereo left STEREO
2 x 8208

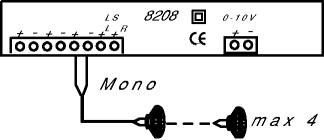

3 Bridge operation STEREO
2 x 20 W right
4 Mono 1 x 20 W MONO
Bridge operation

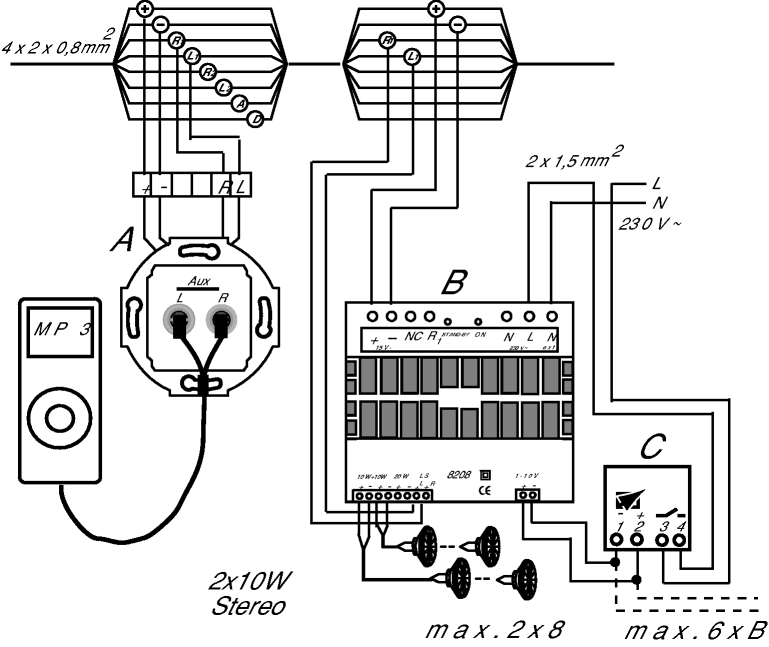

System diagram with external source; A=8210U; B=8208; C=Potentiometer 2112-xxx/6550-xxx
