Functions at a glance

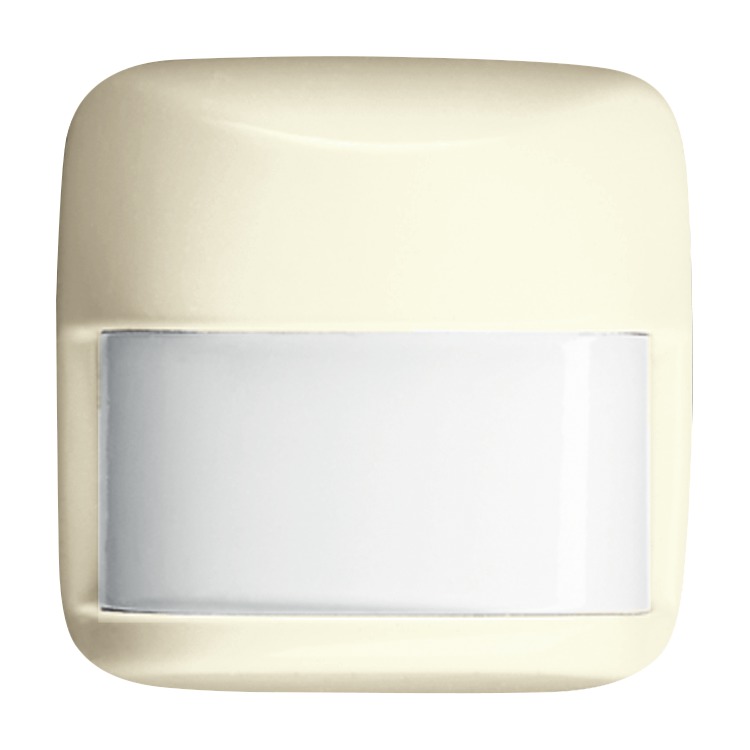

• For automatic switching of devices dependent on motion and brightness.
• For relay inserts 6401 U-102, 6402 U and 6812 U-101.
• For MOS-Fet insert 6804 U-101.
• For Dimmer insert 6593 U.
• For extension insert 6805 U.
• Surveillance density: 18 sectors with 72 switching segments.
• Switch-off delay: 80 sec.

• Protection class (sensor): IP 20
• Temperature range (device): 0 °C - 35 °C
• Detection range: frontal: 12 m, lateral: 8 m
• Detection range 2:
• Brightness limit value: 5 Lux - Up to daytime operation
• Detection angle: 180 °

• Mounting height: 0.8 m - 1.2 m

• Please order the respective flush-mounted insert separately.
