Functions at a glance

• 3 wire connection (neutral conductor required).
• For Busch-Comfort switch sensors 6815-xxx.
• Operation in 1gang 2way installations via push switch-unit for combination with flush-mounted units.

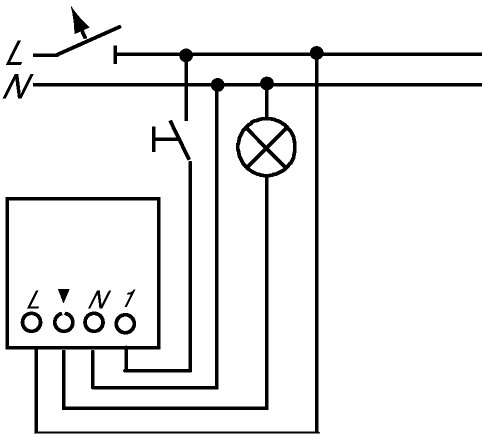

• Operation also possible via conventional push buttons (2020 US, 2021/6 UK).

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz

• suitable for: 230 V incandescent lamps and low-voltage halogen lamps with conventional transformers or electronic transformer.
  • Rated output: 2300 W/VA
• suitable for: 230 V halogen lamps
  • Rated output: 1200 W

• Temperature range (device): 0 °C - 35 °C

• In case of electronic transformers, 5 % transformer losses.
• In the case of conventional transformers, take ~20% transformer loss into account.

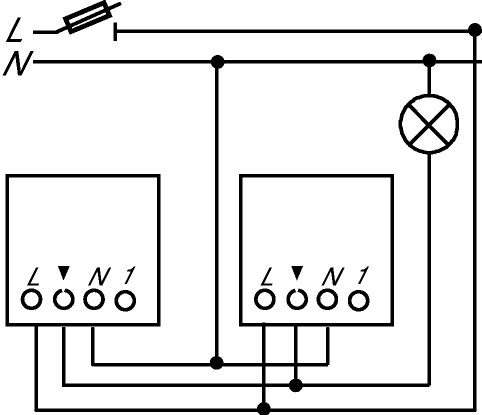

• Output can be connected in parallel.
