My parts list/tender specifications

Actions:
Discontinuation type

Switch sensor alpha
3gang switch sensor

platinum
bronze
studio white matt
6322-22G-101
obsidian
palladium
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Busch-triton®
  • With labelling field.
  • For ABB i-bus® KNX devices 6120 U-10x, 6110 U-10x, 6114 U .
  • Universal control cover with IR reception
  • Control element: rocker switch left/right
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C

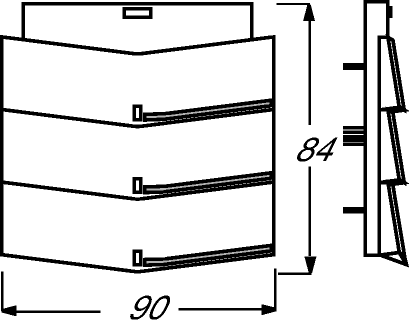

  • Dimensions: (L x W x D): 85 mm x 90 mm
  • Illumination according to Arb.Stätt.V (German Workplace Ordinance).
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • For software and description please check the current Online-Catalogue.

    Order details

    Article No.:6322-24G-101
    Order No.:2CKA006300A1121
    EAN:4011395944301
    Customs tariff number:85389099
    Price group:42
    Info sheet:Download PDF

    Downloads

    Technical manual
    Software
    Dimensions
    Wiring diagram

    Related products

    Compatible with
    Page 1 of 2
    Flush-mounted switch/dim actuator 1gang 6114 U
    2CKA006151A0176
    Flush-mounted switch actuator/sensor 1gang 6110 U-101
    2CKA006151A0186
    Flush-mounted network coupler 6920 U-102
    2CKA006900A1665
    Flush-mounted switch actuator/sensor 1gang 6931 U-101
    2CKA006900A1667
    Flush-mounted dimmer actuator/sensor 1gang 6932 U-101
    2CKA006900A1677
    flush-mounted blind actuator or 2gang switch actuator 2/1gang 6933 U
    2CKA006900A0641
