My parts list/tender specifications

Actions:
ARCHIVE
Discontinuation type

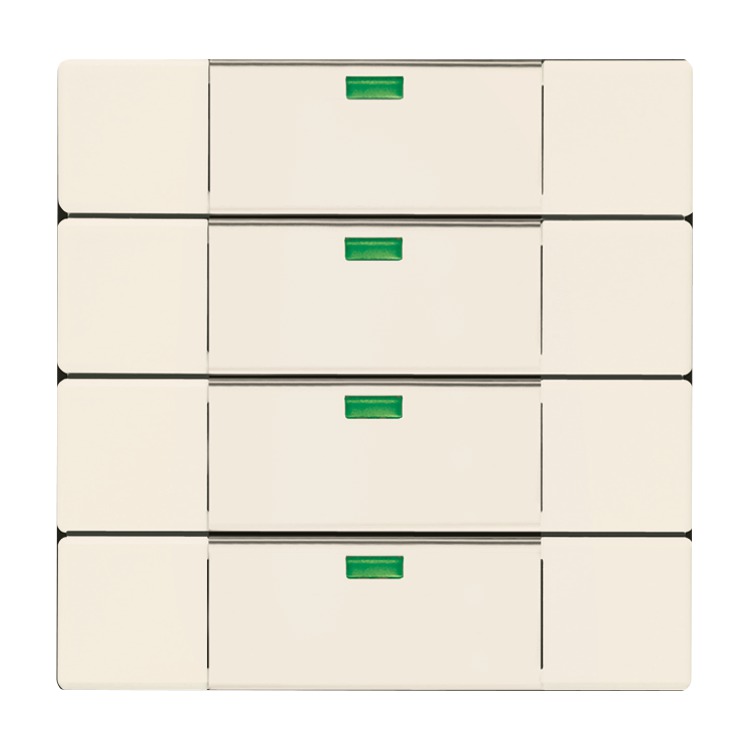

Switch sensor
4gang touch sensor

anthracite
aluminium silver
studio white
stone/light grey
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • With labelling field.
  • Control element: rocker switch left/right
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 63 mm x 63 mm
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • For compatible cover frames, see the following ranges: carat®, pure stainless steel, solo®, Busch-axcent® or future® linear.
  • For software and description please check the current Online-Catalogue.
  • RAL colour number: 1013

Order details

Article No.:6127-82-101
Order No.:2CKA006117A0166
EAN:4011395105788
Customs tariff number:85389099
Price group:42
Price:93,30 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual
Technical manual
Software
Dimensions
Wiring diagram
