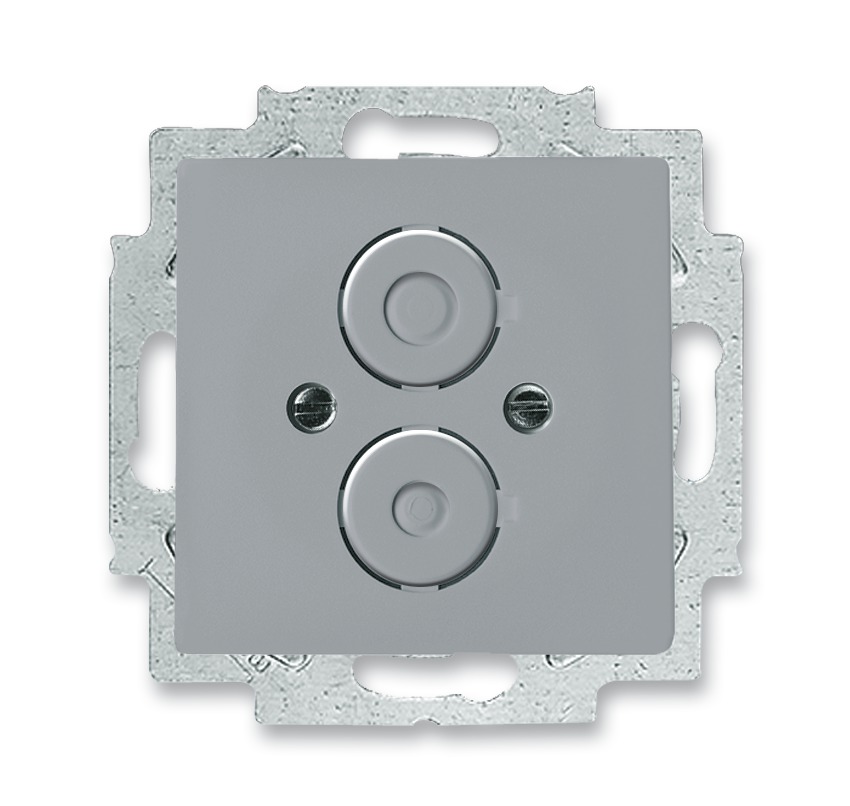

Cover plate
with metal mounting plate

Take over in my parts list / tender specifications

Functions at a glance

  • For covering universal data communication connectors and circular connectors with screwed plug M 16x0.75 (installable in insert) in accordance with DIN 41524, 41529, 45322, 45327, 45328 and 45329.
  • Knock-out openings 6, 8, 18 mm.
  • Protection class (device): IP 20

      Order details

      Article No.:1748-89
      Order No.:2CKA001710A3658
      EAN:4011395065815
      Customs tariff number:85389099
      Price group:04
      Price:12,60 EUR plus VAT
      Info sheet:Download PDF
      Dimensions
      Socket dimensions of cover plates with mounting plate for Left: Small sockets, 2530-… /1748-… Right: BNC /TNC jacks, 2529-… /1750-…
