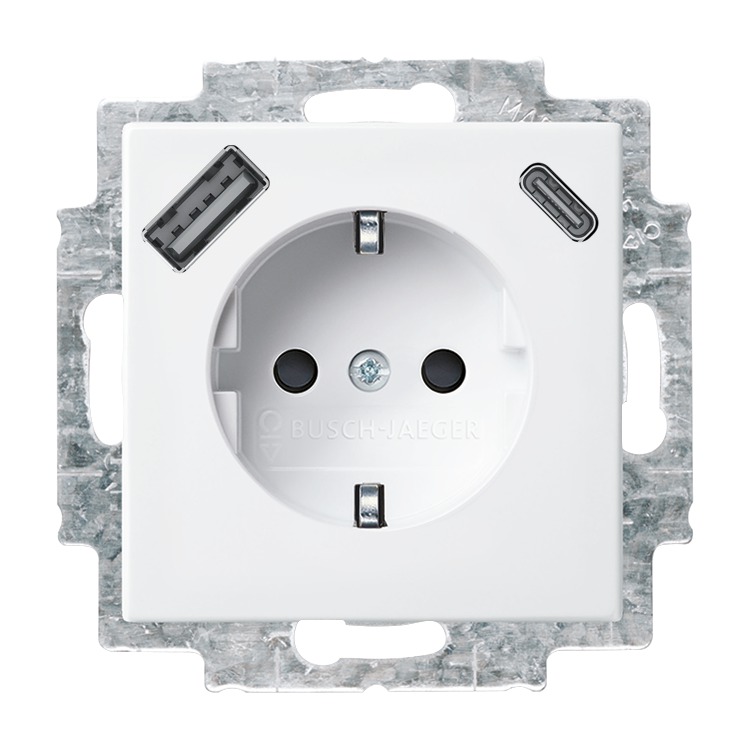

Functions at a glance

• For connecting electric loads.
• DP (2 P + E)
• With screwless terminals.
• For supply and support of mobile devices via USB-cable.
• Mit jeweils einer USB Typ A & Typ C Steckbuchse.
• Simultaneous charging via USB connection and use of the SCHUKO^® socket outlet.
• Unterstützung der Ladeprotokolle am USB-A/C Anschluss: Apple MFI mit 2,4 A und BC 1.2 mit 1,5 A
• Verlustleistung: < 75 mW
• With electronic short-circuit protection.
• With electronic overload protection.

• Rated voltage: 230 V~, +10 % / --10 %
• Secondary: 5 V-, +5 % / -5 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 75 mW

• Outputs: 2 USB charging interface
• suitable for: SCHUKO^® socket outlet
  • Rated current: 16 A
• suitable for: Eine Buchse Typ A belegt:
  • Rated current: 2.4 A
• suitable for: In case two output are used:
  • Rated current: 1.5 A

• Protection class (device): IP 20, SELV
• Temperature range (device): 5 °C - 35 °C
• Storage temperature range: -20 °C - 70 °C

• Mounting depth: 39.5 mm

• SCHUKO^® socket outlet Safety+ with shutter (integrated shutter according to VDE 0620).
• Connecting terminals approved in accordance with VDE 0620-1 as connectors.
• No data transfer.
• When cleaning the device, use dust cover 2098 for the USB-A connection.
• * 3 A @ 5 V DC ist limitiert durch das USB-Kabel
