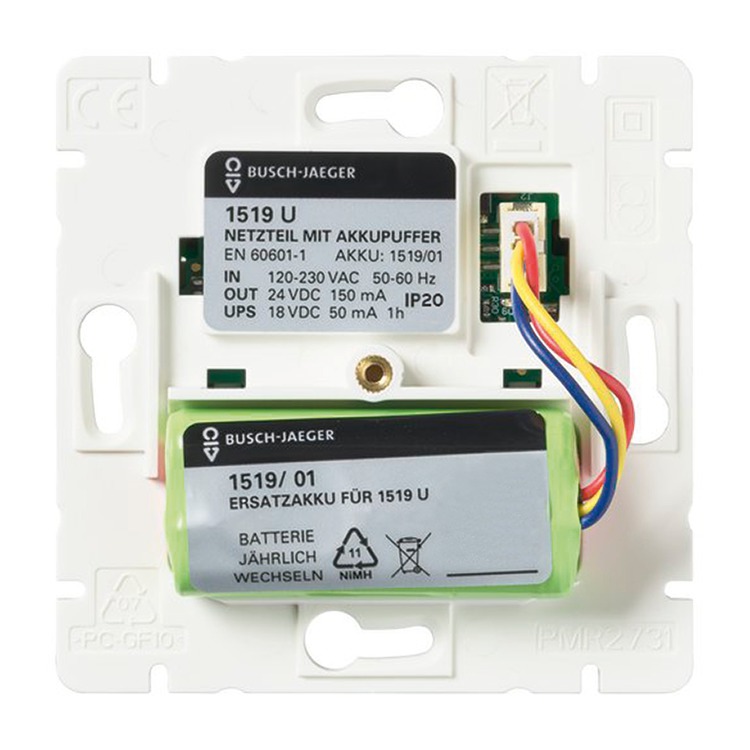

Netzteil mit Akkupuffer

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Als Unterbrechungsfreie Stromversorgung für Ruf-Set für Behinderten-WC
  • Akkupufferung eines Ruf-Sets für Behinderten-WC nach VDE 0834 für 1h
  • Akku im Lieferumfang enthalten
  • Nach DIN VDE 0834 ist die Batterie jährlich zu wechseln!
  • Akku nach Demontage der Abdeckung von vorne zugänglich
  • Akku wird vom Netzteil über Lademanagement geladen und Akkukapazität erhalten
  • Abdeckung ist nur mit Werkzeug zu öffnen und ist somit vor unbefugtem Zugriff geschützt
  • Betriebszustand kann über STATUS-Klemme signalisiert werden
  • Short-circuit-proof
  • Rated voltage: 230 V~, +10 % / -10 %
  • Secondary: 24 V-, +18 V / -35 V
  • Rated frequency: 50 Hz / 60 Hz
  • Rated current: 150 mA
  • Protection class (device): IP 20
  • Temperature range (device): 5 °C - 40 °C
  • Storage temperature range: -40 °C - 70 °C
    • No claw. Screw-fixing via keyholes.

      Order details

      Article No.:1519 U
      Order No.:2TKA00004530
      EAN:6438199008691
      Customs tariff number:85043180
      Price group:14
      Price:211,00 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Certificates

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.

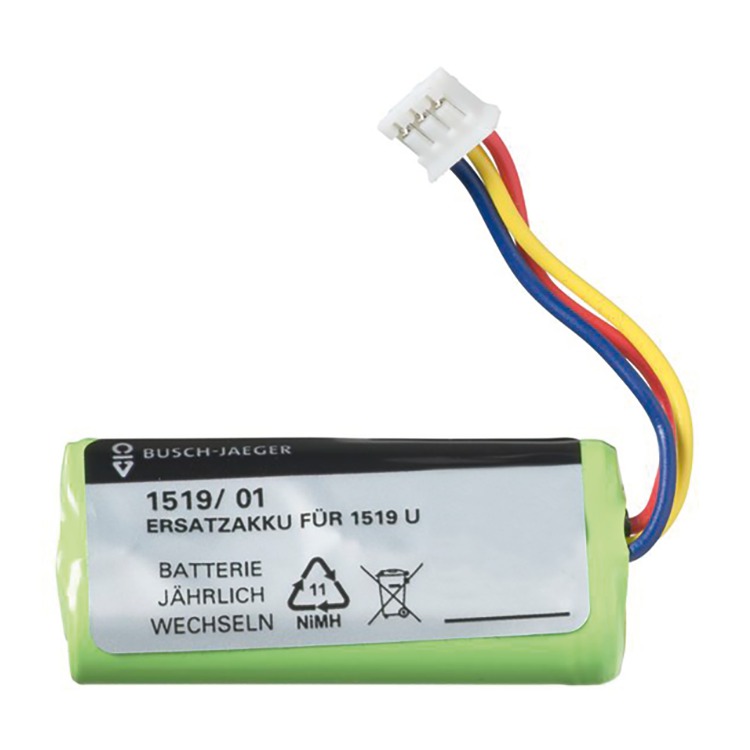

      Battery module 1519/01
      2TKA00004531

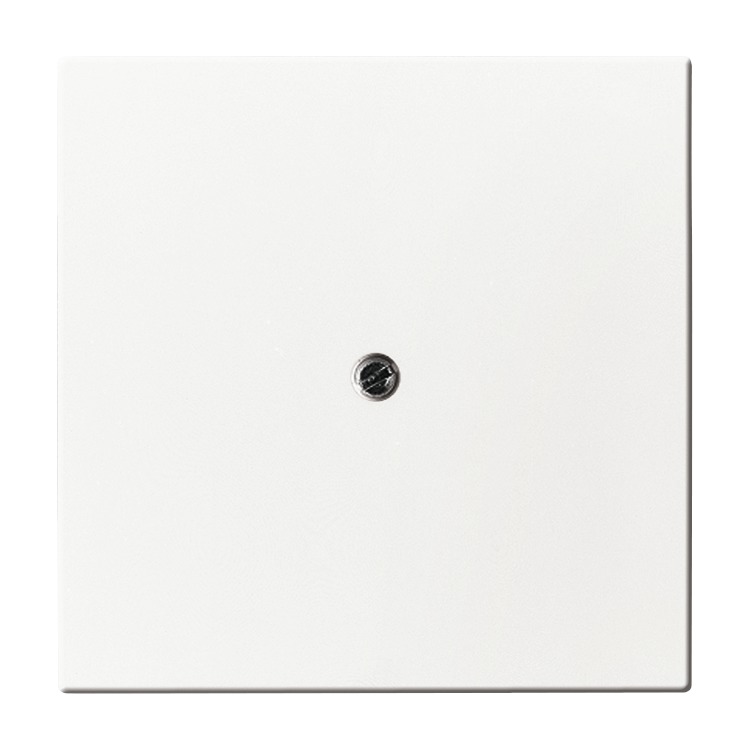

      Cover plate 1745-84
      2CKA001710A3173

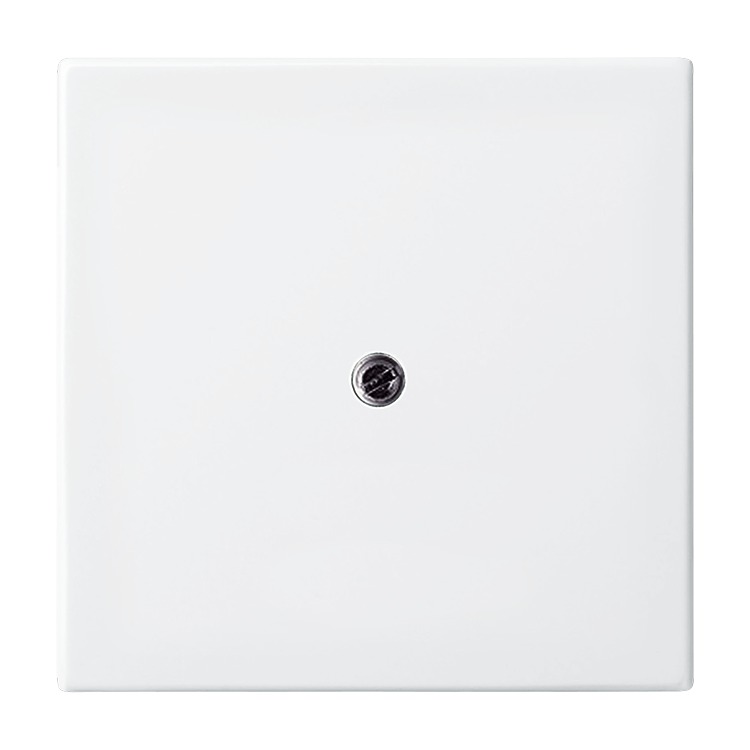

      Cover plate 2536-914
      2CKA001724A4338

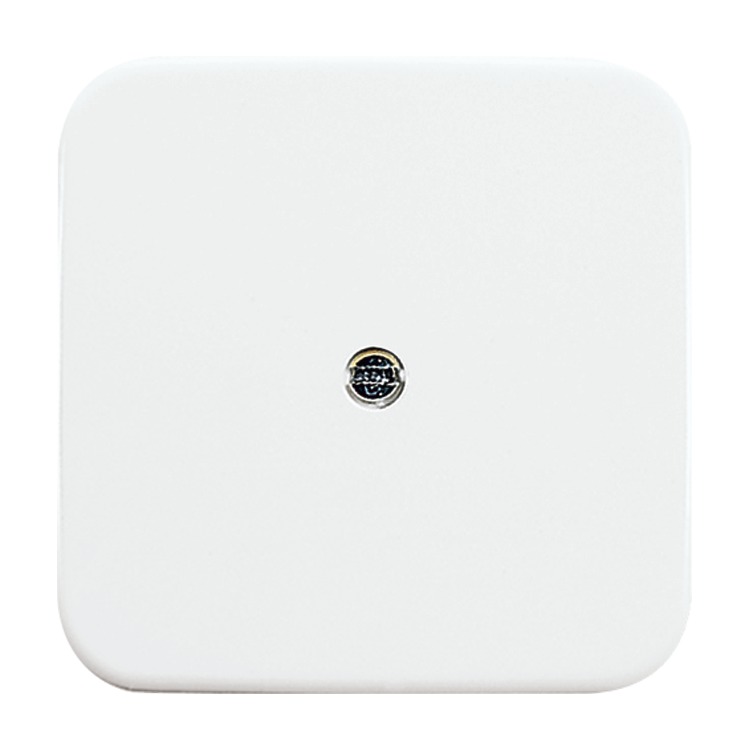

      Cover plate 2536-214
      2CKA001724A0921
