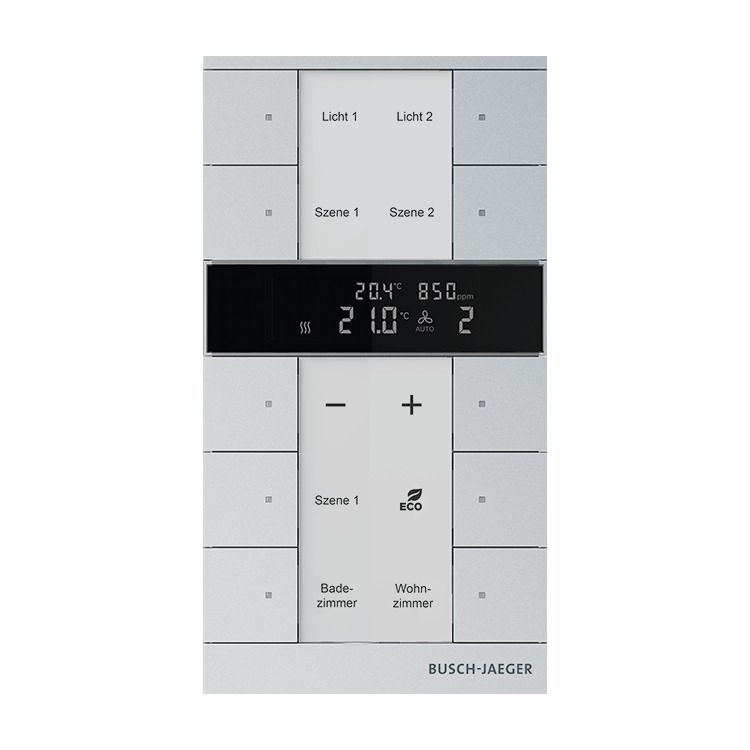

Raumtemperaturregler mit VOC/Feuchte-Sensor und Bedienfunktion 10-fach
ABB Tenton®

Functions at a glance

  • Bedienelement mit Raumtemperaturreglerfunktion und VOC-/Feuchtesensor
  • With integrated free@home bus connection.
  • With labelling field.
  • With integrated room temperature controller and temperature sensor.
  • Push switch function: switching / dimming / blind / sending values / scenes etc.
  • For activating heating, ventilation and fan coil actuators.
  • Master/slave configuration.
  • The fan stage can be switched manually or in automatic mode.
  • Class of temperature controller 1
  • Contribution to space heating energy efficiency 1,0%.
  • Spannungsversorgung über Bus-Klemmen (a,b).
  • Number of bus subscribers: 2
  • Control element: rocker switch left/right
  • Display elements: Anzeige der Betriebsart, Temperatur, FanCoil-Stufe, Feuchtigkeitswert, VOC-Wert, CO2-Wert
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 167.1 mm x 90.1 mm x 13.5 mm
  • As required, you can find the programmable functions in the current application description, which you can download in the Support Centre on our Internet page.
  • For compatible lettering software, visit
  • RAL colour number: Ähnlich 9006

Order details

Article No.:SBC-F-10.0.11-83
Order No.:2CKA006220A0885
Customs tariff number:90321020
Price group:24
Price:505,00 EUR plus VAT
Info sheet:Download PDF
