Functions at a glance

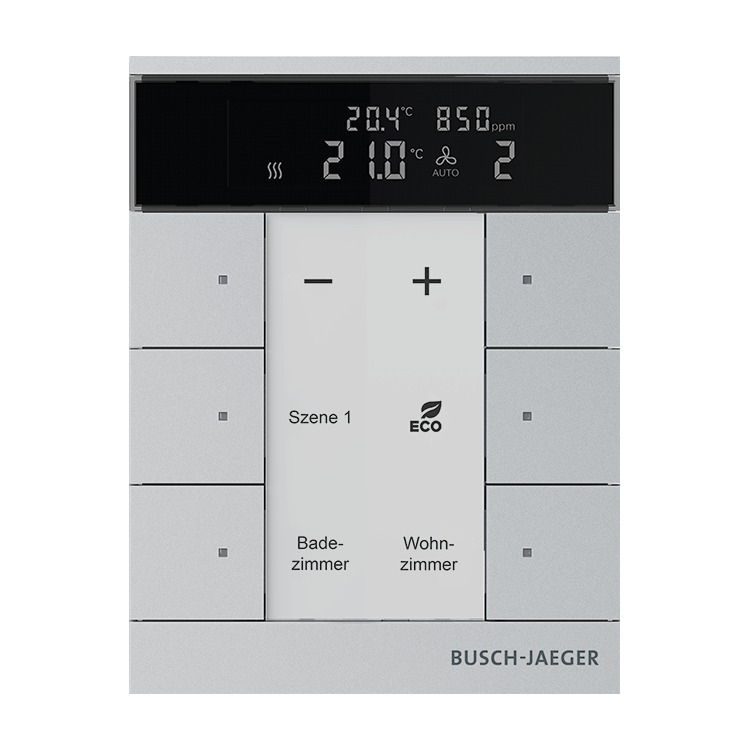

• Bedienelement mit Raumtemperaturreglerfunktion und VOC-/Feuchtesensor
• With integrated free@home bus connection.
• With labelling field.
• With integrated room temperature controller and temperature sensor.
• Push switch function: switching / dimming / blind / sending values / scenes etc.
• For activating heating, ventilation and fan coil actuators.
• Master/slave configuration.
• The fan stage can be switched manually or in automatic mode.
• Class of temperature controller 1
• Contribution to space heating energy efficiency 1,0%.
• Spannungsversorgung über Bus-Klemmen (a,b).
• Number of bus subscribers: 2

• Control element: rocker switch left/right
• Display elements: Anzeige der Betriebsart, Temperatur, FanCoil-Stufe, Feuchtigkeitswert, VOC-Wert, CO2-Wert

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 117.1 mm x 90.1 mm x 13.5 mm

• As required, you can find the programmable functions in the current application description, which you can download in the Support Centre on our Internet page.
• For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
