Functions at a glance

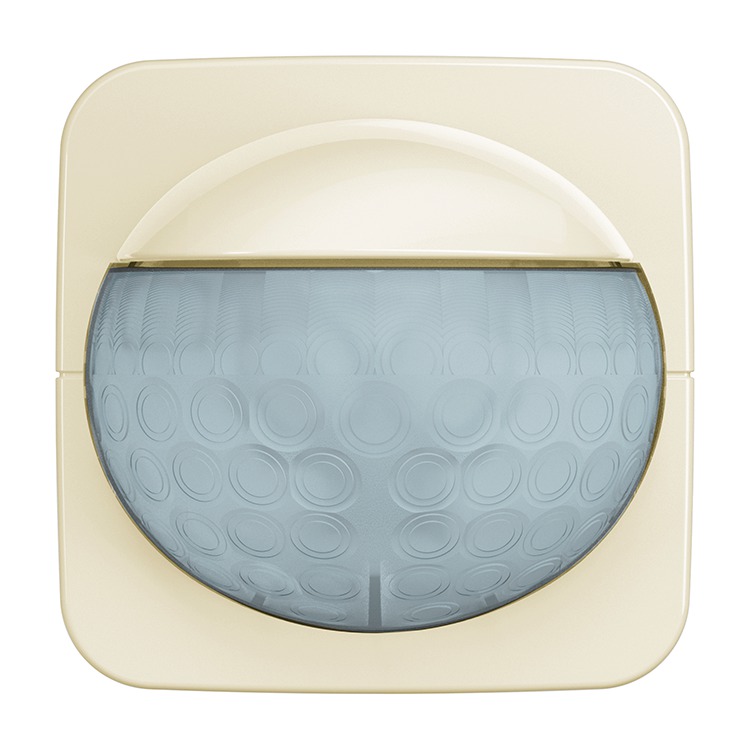

• Movement detector sensor with with measurement of ambient light.
• For automatic switching of devices dependent on motion and brightness.
• Push switch function possible at all times.
• For detection down to the floor.
• For detection in stairwells.
• With 4 detection levels.
• In combination with dimmer insert flex: dimming function of lighting and selectable light value storage.
• With time-controlled basic illumination function.
• With time-controlled night anti-glare function.
• With enabling of pre-warning of switch-off for stairwell operation.
• Compatible with all flexTronic inserts.
• Remote operation via the Bluetooth and smartphone/tablet app.
• Multi-lens: suitable also for mounting heights of 2.20 m.
• Extension of the detection range by means of master/slave combination.
• Additional activation option via push-button input on the flush-mounted insert.
• Timer with Astro function.
• Automatic switchover from summer time to winter time (switch-off function).
• With continuous light/continuous Off function.
• With brightness-independent test mode for evaluating the detection zone.
• With detection display in test mode.
• Surveillance density: 54 sectors with 224 switching segments.
• Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable.
• For relay insert flex, 1gang, 64811 U.
• For e-contact insert flex, 1gang, 64814 U.
• For relay insert flex, 2gang, 64821 U.
• For LED touch dimmer insert flex, 1gang, 64851 U.
• For extension insert flex, 64891 U.
• Mounting height: 31 mm.

• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 70 °C
• Detection range: frontal: 8 m, lateral: 7 m, at mounting height: 1.1 m
• Detection range 2: frontal: 8 m, lateral: 8 m, at mounting height: 2.2 m
• Brightness limit value: 5 Lux - Up to daytime operation
• Detection angle: 180 °

• Dimensions: (L x W x D): 55 mm x 55 mm x 45 mm
• Mounting height: 0.8 m - 1.2 m, alternatively: 2.2 m

• Please order the respective flush-mounted insert separately.
• The range specifications refer only to an ambient temperature of 21°C.
