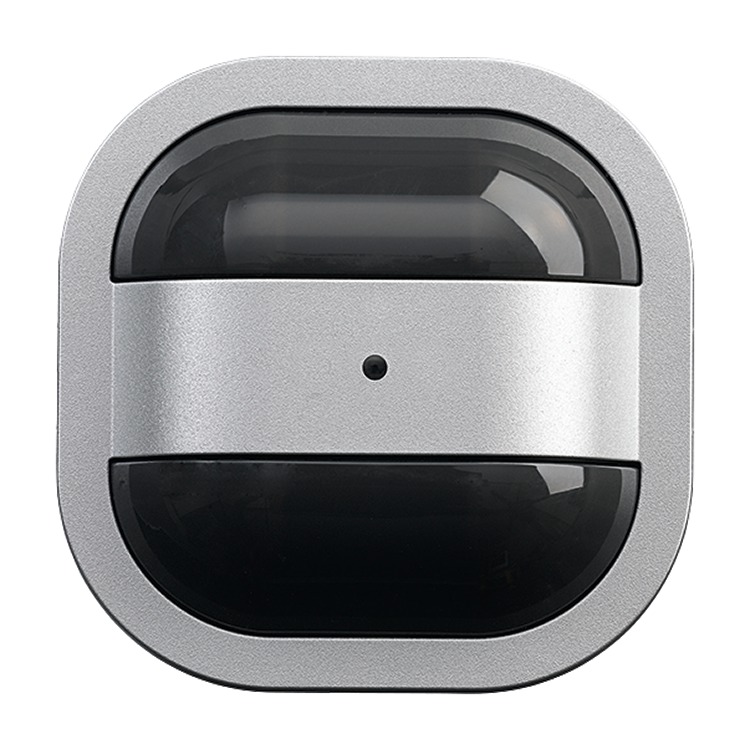

Functions at a glance

• Präsenzmelder mit Mischlichtmessung.
• For switching lighting systems that depend on brightness and movement.
• Zur Konstantlichtregelung in Kombination mit LED-Dimmer-Einsatz flex 64851 U.
• Zur Heizung-/Klima-/Lüftungsregelung in Kombination mit Relais-Einsatz flex, 2-fach, 64821 U.
• Detection range (for installation height of 3 m): circular
• Seated persons: up to Ø 10 m, walking persons: up to Ø 12 m.
• Extension of the detection range by means of master/slave combination.
• Mounting height: 35 mm
• For semiautomatic and fully automatic operation.
• Additional activation/deactivation possibility through pushbutton input.
• With continuous light/duration-off function (8 hrs), IR service remote control necessary.
• With teach-in function of the brightness switching threshold, IR service remote control required.
• With brightness-independent test mode for evaluating the detection zone.
• With detection display in test mode.
• Remote control possible via IR service remote control 6843.
• Adjustment elements accessible on the front side.
• Surveillance density: 72 sectors with 640 switching segments.
• Switch-off delay: approx. 1 min. - 30 min. or short-time pulse 1s adjustable.
• Compatible with all flexTronic inserts.
• For relay insert flex, 1gang, 64811 U.
• For relay insert flex, 2gang, 64821 U.
• For e-contact insert flex, 1gang, 64814 U.
• For LED touch dimmer insert flex, 1gang, 64851 U.
• For extension insert flex, 64891 U.

• Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.
• Display elements: LED for status display.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 70 °C
• Detection range: frontal: 6 m, lateral: 6 m, at mounting height: 3 m
• Brightness limit value: 5 Lux
• Detection angle: 360 °

• Dimensions: (L x W x D): 94 mm x 94 mm x 43 mm
• Mounting height: 2 m - 4 m

• The detection range with a central approach is reduced.
• The range specifications refer only to an ambient temperature of 21°C.
• Please order the respective flush-mounted insert separately.
