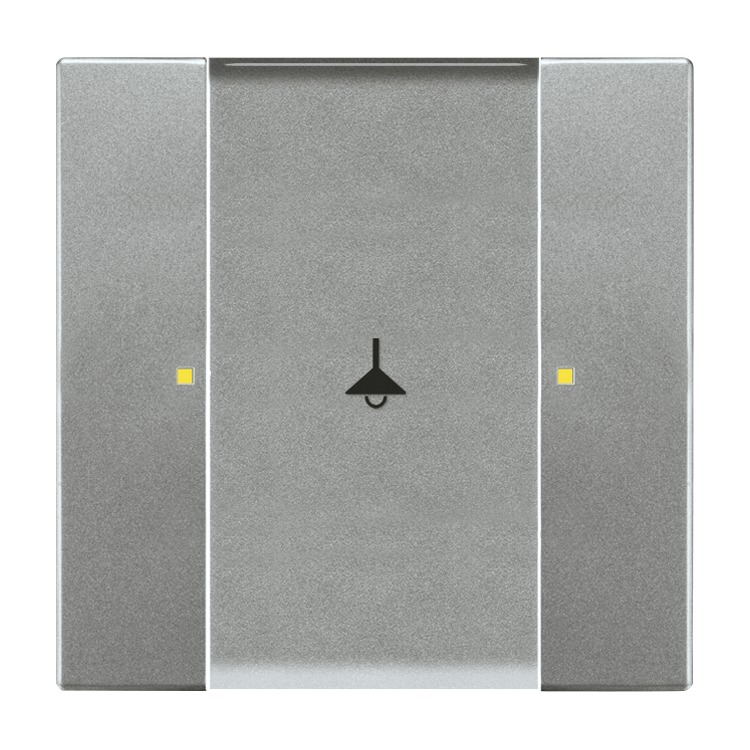

Control element, 1/2gang
multi-function/colour concept

anthracite
ivory white
studio white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For ABB i-bus® KNX 6120/12-101, 6120/13.
  • With labelling field.
  • Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
  • Push switch function: switching / dimming / blind / sending values / scenes etc.
  • Transparent labelling sheet with standard symbols included in delivery.
  • Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
  • Control element: rocker switch left/right
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 63 mm x 63 mm
  • For software and description please check the current Online-Catalogue.
  • For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
  • Surface painted.

Order details

Article No.:6125/02-803
Order No.:2CKA006115A0201
EAN:4011395139431
Customs tariff number:85389099
Price group:42
Price:71,80 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual
Certificates
Software
Dimensions
Wiring diagram
