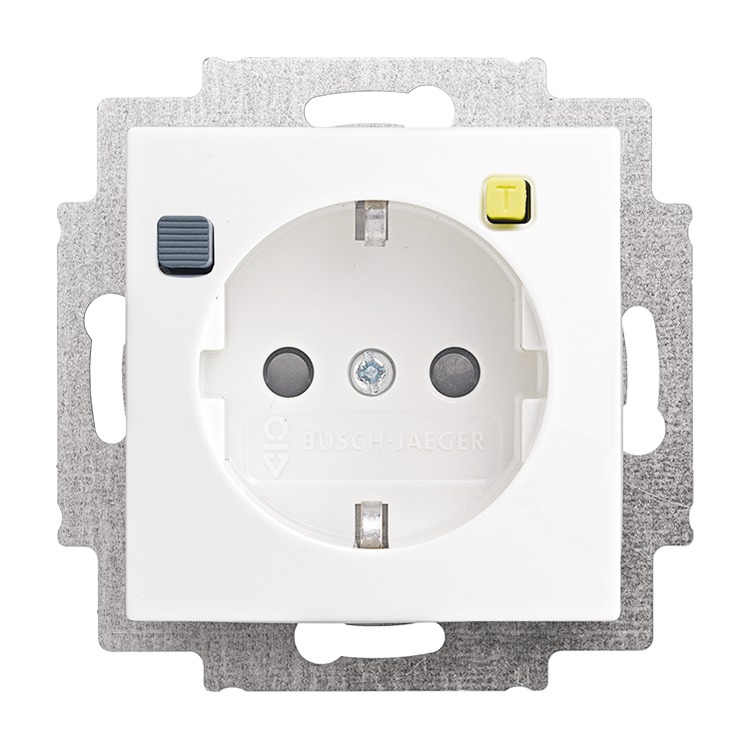

FI-SCHUKOMAT, SCHUKO® socket outlet (RCD)
with earth leakage circuit breaker

Take over in my parts list / tender specifications

Functions at a glance

  • Shuttered.
  • DP cut off (P,N)
  • Without PE monitoring.
  • With connecting conductor and protection of downstream socket outlets.
  • Rated actuating current: 30 mA. Release time: ≤ 30 ms. Short-circuit strength: 3000 A (with 25 A GL fuse). Current surge strength: 250 A (8/20) µs.
  • With fixing claws.
  • Rated frequency: 45-60 Hz.
  • Rated voltage: 230 V~
  • Rated current: 16 A
  • Protection class (device): IP 20
  • Temperature range (device): -25 °C - 40 °C
    • Connecting terminals approved in accordance with VDE 0620-1 as connectors.
    • Protective measure according to VDE 0100; can be proven or checked using the Profitest 0100S testing device, for example.
    • SCHUKO® socket outlet Safety+ with shutter (integrated shutter according to VDE 0620).
    • RAL colour number: Ähnlich 9010

    Order details

    Article No.:3120 EUCB-914
    Order No.:2CKA003116A0663
    EAN:4011395210192
    Customs tariff number:85366990
    Price group:14
    Price:188,00 EUR plus VAT
