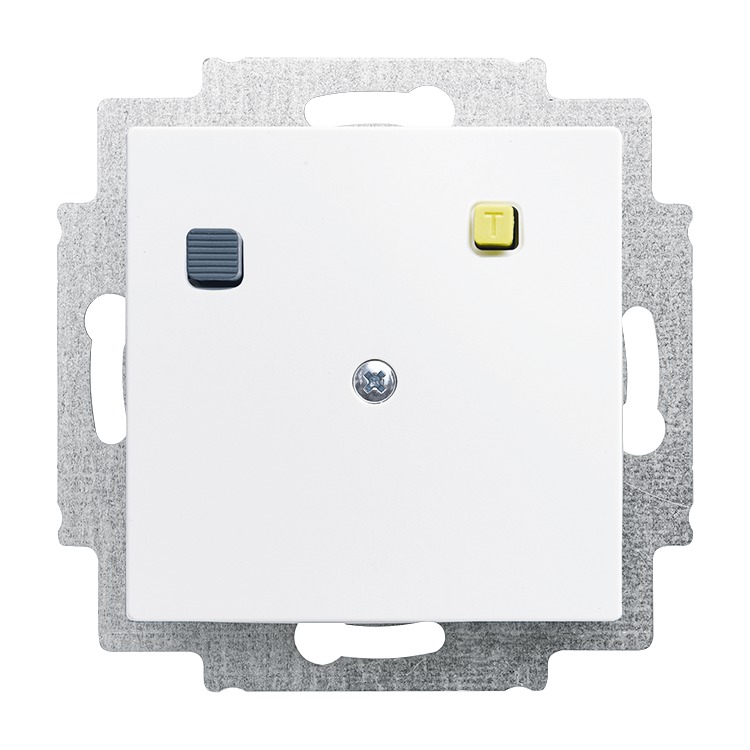

Buschmat® FI - Insert
with earth leakage breaker with connecting conductor

Take over in my parts list / tender specifications

Functions at a glance

  • Protection of downstream consumers.
  • Rated actuating current: 30 mA. Release time: ≤ 30 ms. Short-circuit strength: 3000 A (with 25 A GL fuse). Current surge strength: 250 A (8/20) µs.
  • Without claw fixation.
  • Rated frequency: 45-60 Hz.
  • Rated voltage: 230 V~
  • Rated current: 16 A
  • Protection class (device): IP 21
  • Temperature range (device): -25 °C - 40 °C
    • Protective measure according to VDE 0100; can be proven or checked using the Profitest 0100S testing device, for example.
    • RAL colour number: Ähnlich 9010

    Order details

    Article No.:3151 UC-914
    Order No.:2CKA003117A0007
    EAN:4011395210246
    Customs tariff number:85363010
    Price group:14
    Price:176,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Certificates
    Dimensions
