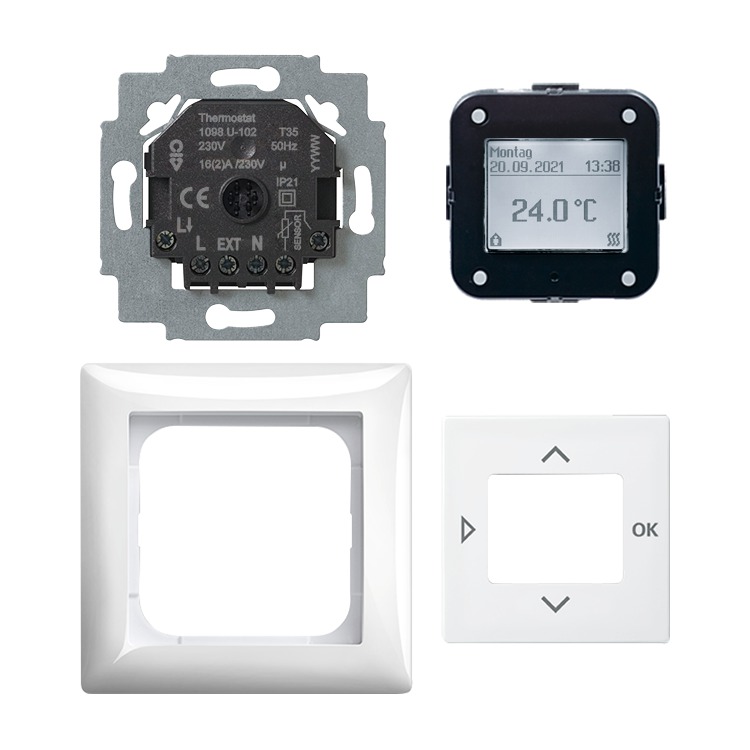

Room temperature controller timer, complete set

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Consisting of room temperature controller 1098 U-102.
  • Consisting of Busch-balance SI cover frame, 1gang 1721-914.
  • Consisting of the Busch-balance cover plate for timer control element 6435-914.
  • For floor heating.
  • Switch contact, non-floating - opens when the set temperature is reached.
  • Easy adjustment via illuminated menu and text-based display.
  • Up to 4 switching times per day can be freely adjusted for each day of the week.
  • Changeover of setpoint/actual temperature display possible.
  • With screw-type terminal.
  • Adjustable automatic summer/wintertime switch-over.
  • Power reserve > 10 years
  • Class of temperature controller: IV
  • Contribution to room heating efficiency: 2.0%.
  • Rated voltage: 230 V~
  • Rated current: 16 A
  • Temperature range (device): 5 °C - 30 °C
  • Dimensions: (L x W x D): 71 mm x 71 mm x 38 mm
  • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
  • Servo-valves, "closed when de-energized", are necessary for connection to thermostat. e.g. Article No. 6164/10-, see KNX chapter.

    Order details

    Article No.:1098 UJ-914
    Order No.:2CKA001032A0522
    EAN:4011395310991
    Customs tariff number:90321020
    Price group:19
    Price:306,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Certificates
    Wiring diagram
