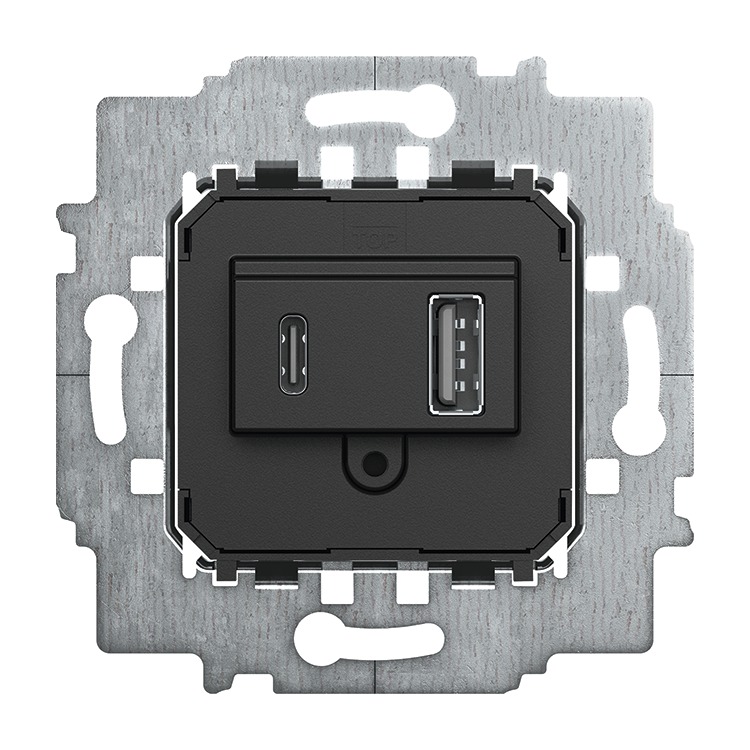

USB power adapter insert, flush-mounted
With USB-A & USB-C interface
Functions at a glance
- For supply and support of mobile devices via USB-cable.
- With USB type A and USB type C female connector.
- To support two devices at the same time.
- Supports automatic negotiating of optimum charging parameters for the shortest charging times.
- Support of loading protocol on the USB-A connection: Apple MFI with 2.4 A and BC 1.2 with 1.5 A.
- Support of the additional quick-charge protocols: USB-PD and quick-charge 3.0 & 4.0.
- With electronic short-circuit protection.
- With electronic overload protection.
- Rated voltage: 230 V~230 V~, +10 % / -10 %
- Rated frequency: 50 Hz / 60 Hz
- Power dissipation: 75 mW
- Outputs: 2 USB charging interface
- suitable for: Only USB-A bus occupied:
- Rated output: 12 W
- Rated current: 2400 mA
- suitable for: Only USB-C bus occupied:
- Rated output: 18 W
- Rated current: 3000 mA
- Protection class (device): IP 20, SELV
- Temperature range (device): 0 °C - 35 °C
- Storage temperature range: -20 °C - 70 °C
- Dimensions: (L x W x D): 71 mm x 71 mm x 43 mm
- Mounting depth: 32 mm
- No claw. Screw-fixing via keyholes.
- No data transfer.
- When cleaning the device, use dust cover 2098 for the USB-A connection.
Order details
| Article No.: | 6475 U |
| Order No.: | 2CKA006400A0398 |
| EAN: | 4011395303450 |
| Customs tariff number: | 85043180 |
| Price group: | 19 |
| Price: | 72,40 EUR plus VAT |
| Info sheet: | Download PDF |
