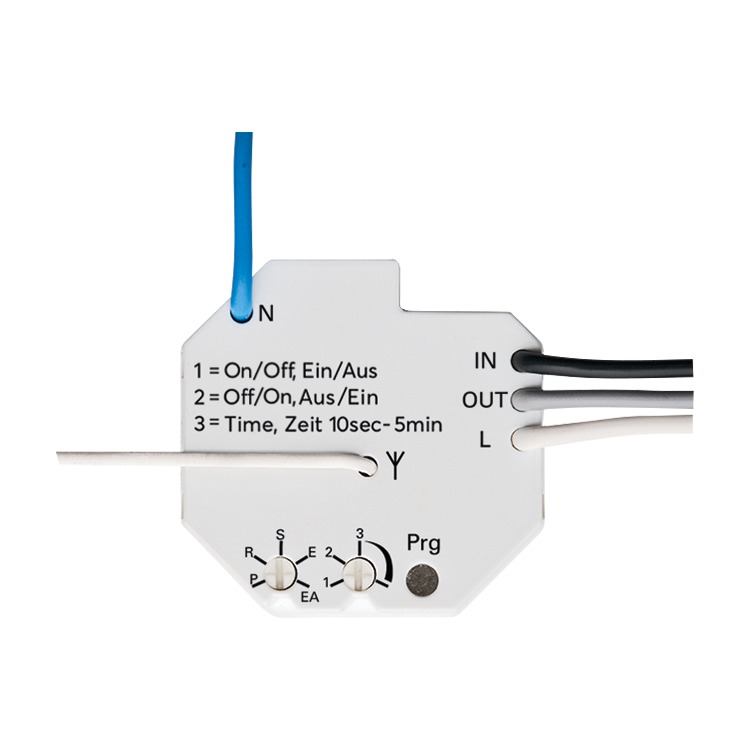

Switch actuator WaveLINE
Functions at a glance
- For wireless switching of electrical loads.
- For functions ON/OFF, timer and lightscene control.
- For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx.
- For remote control WaveLINE 6780.
- Switch-off delay: Adjustable between 10 s to 5 min.
- Repeater function can be activated for extended range.
- For universal attachment or installation.
- 3 wire connection (neutral conductor required).
- For installation in (deep) flush-mounted boxes to German Standard DIN 49073.
- Controllable up to 32 transmission addresses.
- Send/receive frequency: 868 MHz.
- Free-field range: approx. 100 m.
- Control element: Adjustable potentiometer
- Display elements: Status indication of output via LED.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Outputs: 1 1x Normally open or Normally closed contact, potential-free
- suitable for: Resistive load
- Rated output: 2300 W
- Rated current: 10 A
- suitable for: capacitive
- Rated output: 2300 VA
- Rated current: 10 AX
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Dimensions: (L x W x D): 47 mm x 48 mm x 22 mm
- Mounting depth: 25 mm
- For further information please check the current Online-Catalogue.
- RAL colour number: Ähnlich 9016
Order details
| Article No.: | 6702 |
| Order No.: | 2CKA006700A0027 |
| EAN: | 4011395150115 |
| Customs tariff number: | 85389091 |
| Price group: | 19 |
| Price: | 157,00 EUR plus VAT |
| Info sheet: | Download PDF |
