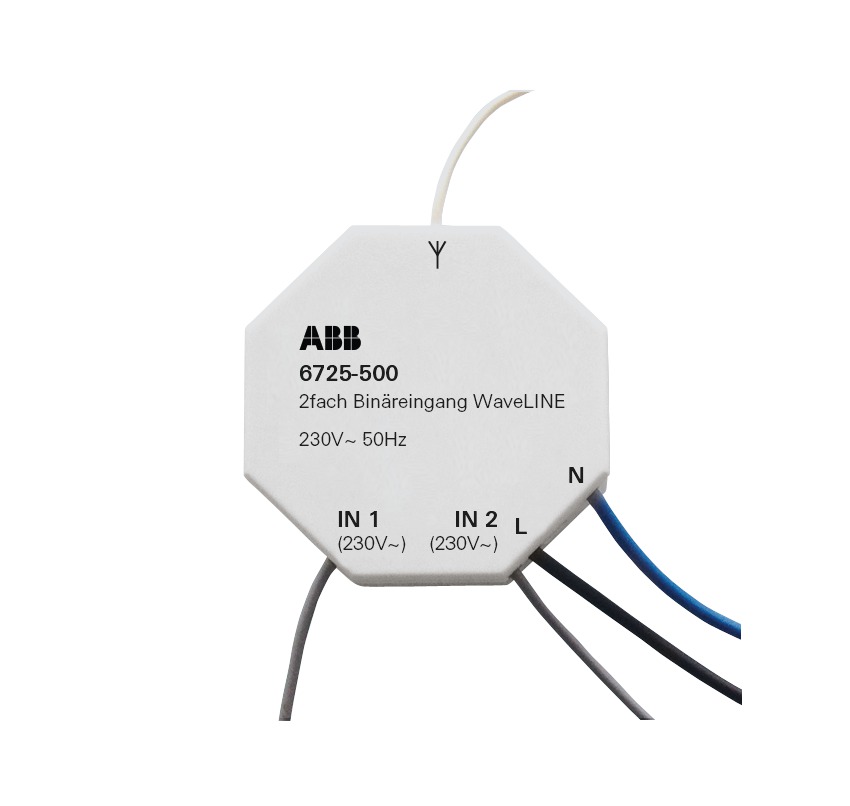

Functions at a glance

• Radio control telegrams are sent when the two extension units are activated with mains voltage (AC 230 V~).
• Operation via conventional push button (2020 US/2021/6 UK) possible.
• The 2gang binary input has 5 function modes:
• 1.) 2-channel switching: Connection of conventional push buttons. Alternately sends ON/OFF telegrams when actuated.
• 2.) 2-channel dimming: Connection of conventional push buttons. Sends dimming telegrams when actuated.
• 3.) 1 channel blind: Connection of a 2gang push-button or blind control insert II. Sends telegrams to control a blind when actuated (only movement command, no stop.
• 4.) Two-channel light scene control: Connection of conventional push-buttons. Light scenes are stored and started when actuated.
• 5.) Channel 1: Switching ON. Channel 2: Continuous switching ON/OFF: At >Switching ON< an ON telegram is sent with a brief actuation. At >Continuous switching< ON/OFF and actuated extension unit, an ON telegram is sent every minute, and an OFF telegram is sent every minute for a non-actuated extension unit.
• In dependence of the selected function, it can be combined with WaveLINE actuators 6701-101, 6702, 6703, 6704, 6705-101.
• Repeater function can be activated for extended range.
• For universal attachment or installation.
• Phase and neutral conductor required.
• For installation in (deep) flush-mounted boxes to German Standard DIN 49073.
• Send/receive frequency: 868 MHz.
• Free-field range: approx. 100 m.

• Control element: Adjustable potentiometer
• Display elements: LED for status display.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C

• Dimensions: (L x W x D): 47 mm x 48 mm x 14 mm
• Mounting depth: 15 mm

• For further information please check the current Online-Catalogue.
