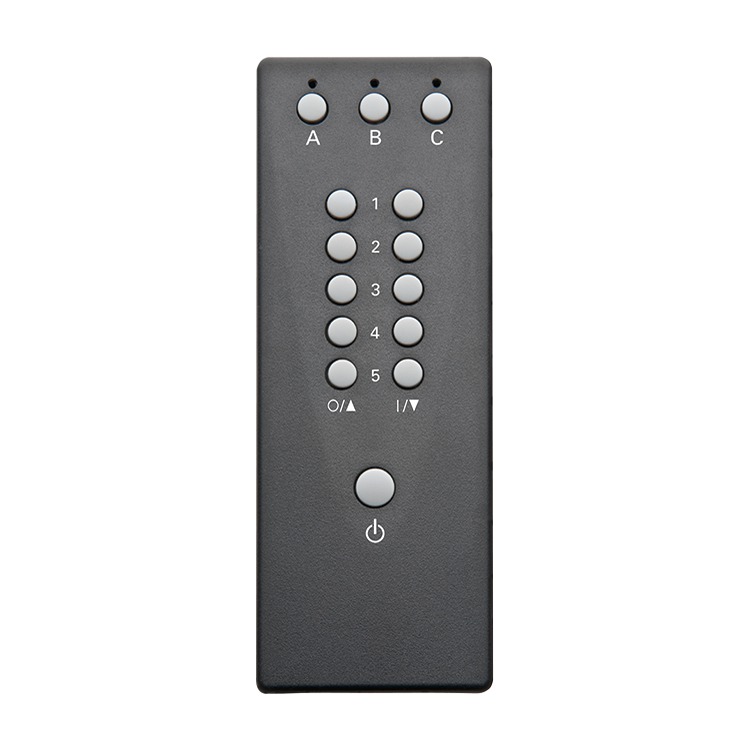

Handsender WaveLINE
Functions at a glance
- Network-independent radio control.
- For switching and dimming.
- For controlling blinds and light scenes.
- With 3 groups (A, B or C) with 5 pairs of channels.
- There are 15 radio channels operated singly or up to 30 light scenes can be called.
- With the >EVERYTHING-OFF< function for the allocated actuators.
- For flush-mounted WaveLINE actuators 6701-101, 6702, 6703, 6704 and 6705-101.
- Send frequency: 868 MHz.
- Free-field range: approx. 100 m.
- Power supply: lithium button cell battery Type CR2032.
- Battery service life: typically 5 years, therefore practically maintenance-free.
- Automatic monitoring of battery life.
- Control element: 3 group buttons, 10 channel buttons and "ALL OFF" button.
- Display elements: 3 LEDs for group selection display.
- Rated voltage: 3 V-
- Protection class (device): IP 40
- Temperature range (device): -5 °C - 45 °C
- Dimensions: (L x W x D): 135 mm x 50 mm x 16 mm
- Battery included in delivery.
- RAL colour number: Ähnlich 9004
Order details
Article No.: | 6780 |
Order No.: | 2CKA006780A0002 |
EAN: | 4011395150092 |
Customs tariff number: | 85176200 |
Price group: | 19 |
Price: | 135,00 EUR plus VAT |
Info sheet: | Download PDF |
