Functions at a glance

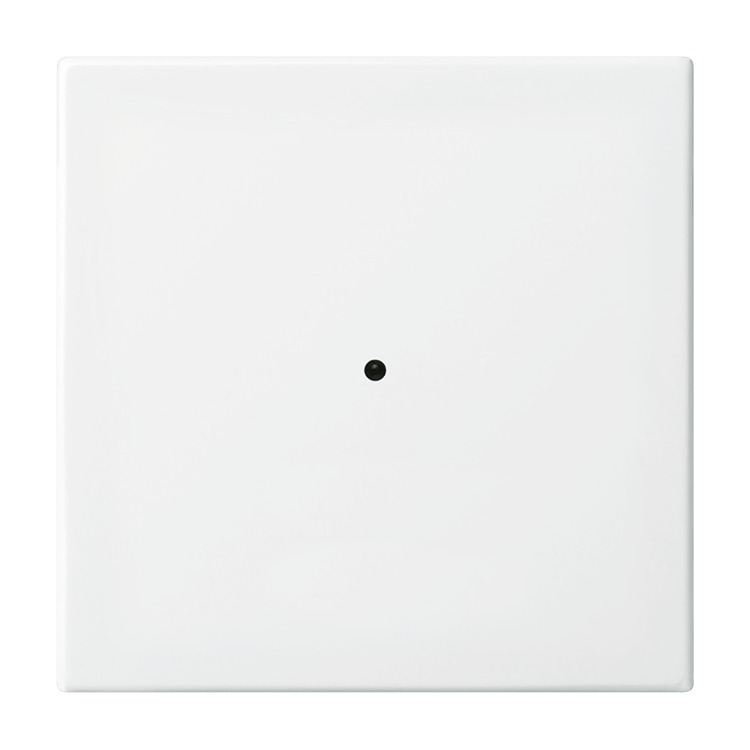

• 1gang wall-mounted transmitter independent of mains power supply.
• For switching and dimming.
• For controlling blinds and light scenes.
• 1 radio channel can be operated or up to 2 light scenes can be called up.
• For flush-mounted WaveLINE actuators 6701-101, 6702, 6703, 6704 and 6705-101.
• Send frequency: 868 MHz.
• Free-field range: approx. 100 m.
• Power supply: lithium button cell battery Type CR2032.
• Battery service life: typically 5 years, therefore practically maintenance-free.
• Automatic monitoring of battery life.
• Including fixing plate for mounting on smooth walls or on switch boxes.

• Control element: Switch contacts top/bottom
• Display elements: LED to indicate the transmission

• Rated voltage: 3 V-

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C

• Dimensions: (L x W x D): 55 mm x 55 mm x 18 mm

• Battery included in delivery.
