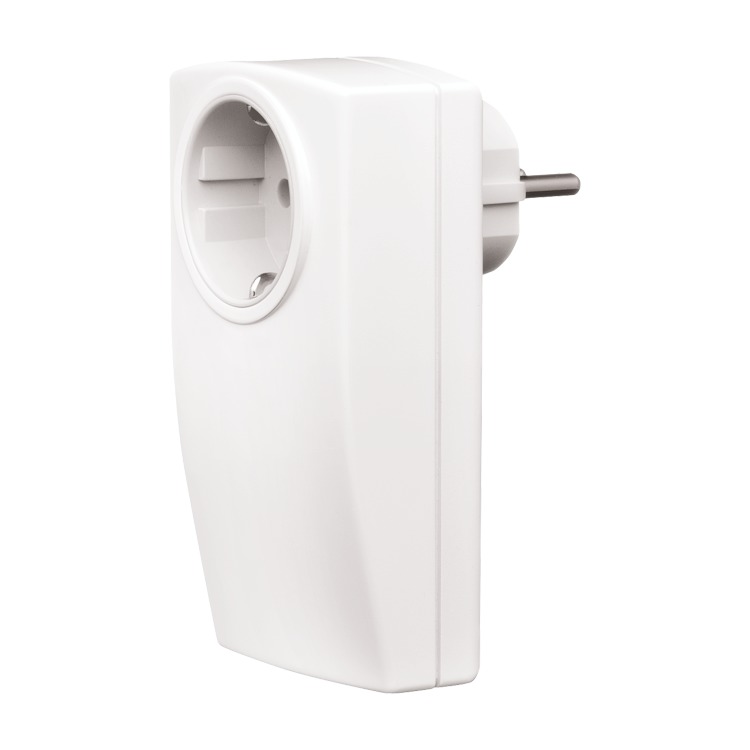

Adaptor plug, ZigBee Light Link switch
For switching of electrical loads via radio control.

Functions at a glance

  • Plug device for switching electric loads up to 1,380 W/VA.
  • Control of thermal positioners for heating control possible.
  • Not for electrical heating devices.
  • Connected load can be activated/deactivated via micro switch.
  • Send/receive frequency: 2.4 GHz.
  • Free-field range: approx. 100 m.
  • Rated voltage: 230 V~, + 10% / - 10%
  • Outputs: 1 (normally open contact), potential-bound.
  • Output voltage: 230 V~.
  • Nominal current: 6 AX
  • Nominal power: 1,380 W/VA (non-LED loads).
  • Nominal power: 100 W/VA (non-LED loads).
    • Rated voltage:
    • Rated frequency: 50 Hz / 60 Hz
    • Power dissipation: 1 W
      • Protection class (device): IP 20
      • Temperature range (device): -5 °C - 45 °C
      • Dimensions: (L x W x D): 122 mm x 65 mm x 77 mm
      • RAL colour number: Ähnlich 9016
      GluehlampeTrafoElektronisches-Trafo

      Order details

      Article No.:6717-84
      Order No.:2CKA006710A0004
      EAN:4011395200322
      Customs tariff number:85365080
      Price group:19
      Price:153,00 EUR plus VAT
      Info sheet:Download PDF
