Discontinuation type

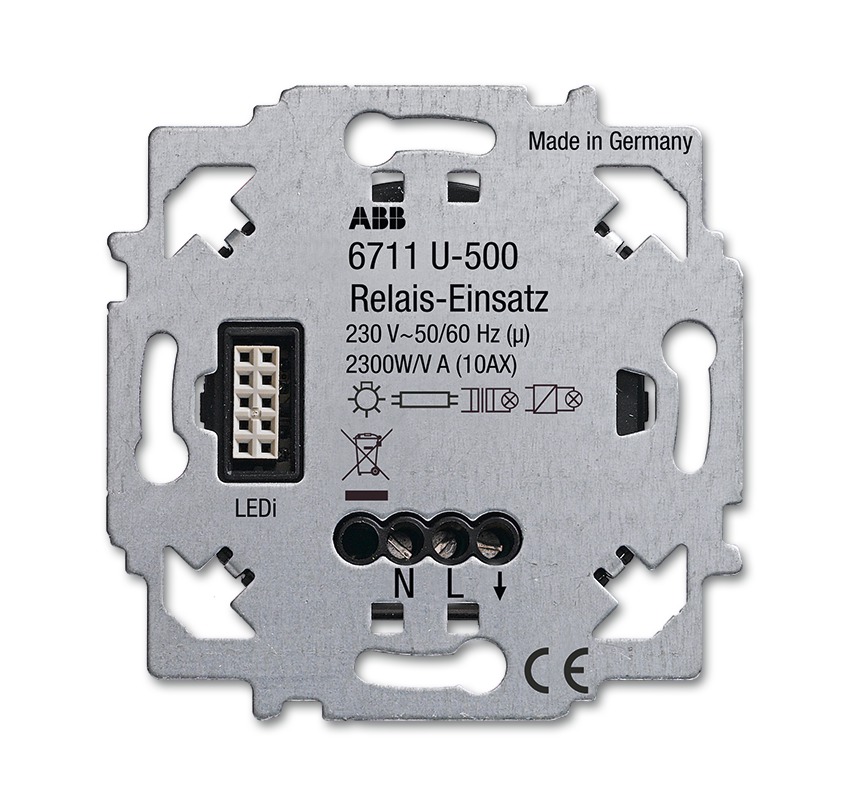

ZigBee Light Link universal relay insert
For switching of electrical loads via radio control.
Functions at a glance
- 3 wire connection (neutral conductor required).
- For switching retrofit LED lamps (LEDi).
- For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and low-voltage halogen lamps, that are actuated via transformers.
- Without control cover.
- For ZigBee Light Link control element 6735-xxx, 6736-xxx and 6737-xxx.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz / 60 Hz
- Power dissipation: 0.5 W
- Outputs: 1 Normally open contact, potential-bound
- suitable for: ohmic, capacitive and inductive loads
- Rated output: 2300 W/VA
- Rated current: 10 AX
- suitable for: LEDi and energy-saving bulbs; typical
- Rated output: 100 VA
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Mounting depth: 33 mm
- To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073 > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
Order details
| Article No.: | 6711 U |
| Order No.: | 2CKA006710A0002 |
| EAN: | 4011395189214 |
| Customs tariff number: | 85389099 |
| Price group: | 19 |
| Price: | 82,80 EUR plus VAT |
| Info sheet: | Download PDF |
