Discontinuation type

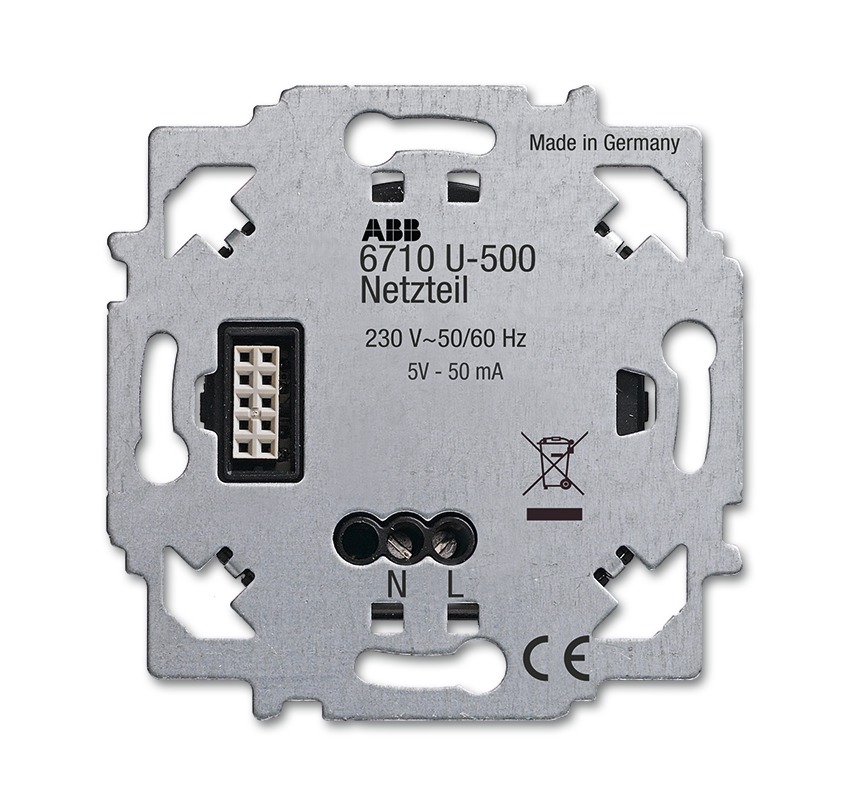

ZigBee Light Link power supply insert
For the power supply of ZigBee Light Link control elements.
Functions at a glance
- With electronic short-circuit protection.
- With electronic overload protection.
- For ZigBee Light Link control element 6735-xxx, 6736-xxx and 6737-xxx.
- Without control cover.
- Rated voltage: 230 V~, +10 % / -10 %
- Secondary: 5 V-, +5 % / -5 %
- Rated frequency: 50 Hz / 60 Hz
- Power dissipation: 0.5 W
- Rated current: 50 mA
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Mounting depth: 33 mm
- To be mounted only in connection with commercially available flush-mounted installation boxes according to DIN 49073 > 40 mm depth gauge or Busch-Jaeger art. no. 3040, 3050 or 3060.
Order details
| Article No.: | 6710 U |
| Order No.: | 2CKA006710A0001 |
| EAN: | 4011395189207 |
| Customs tariff number: | 85043180 |
| Price group: | 19 |
| Price: | 62,30 EUR plus VAT |
| Info sheet: | Download PDF |
