Discontinuation type

Functions at a glance

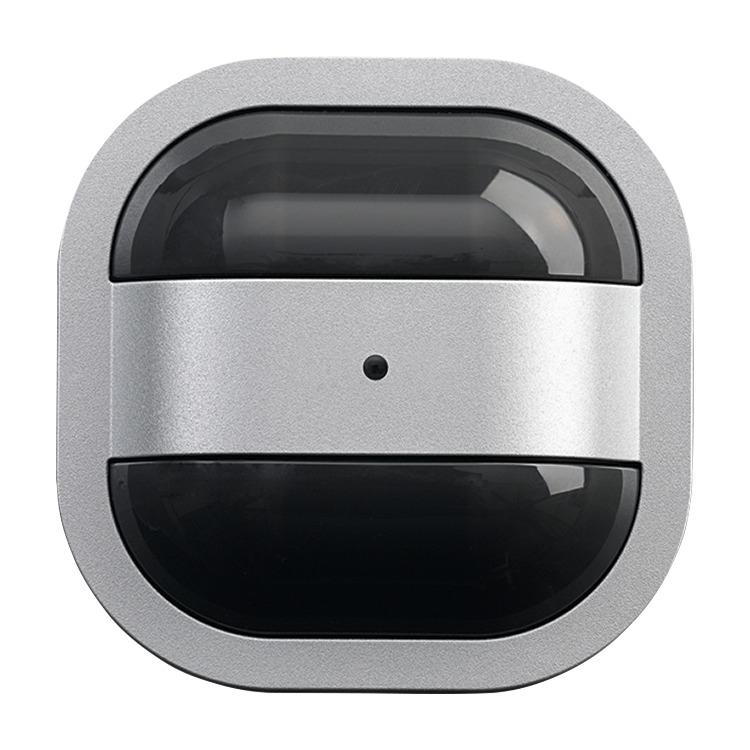

  • Master presence detector with mixed light measurement.
  • For switching lighting systems that depend on brightness and movement.
  • Detection range (for installation height of 3 m): circular
  • Seated persons: up to Ø 10 m, walking persons: up to Ø 12 m.
  • Extension of the detection range by means of master/slave combination.
  • Mounting height: 35 mm
  • For semiautomatic and fully automatic operation.
  • Additional activation/deactivation possibility through pushbutton input.
  • With continuous light/duration-off function (8 hrs), IR service remote control necessary.
  • With teach-in function of the brightness switching threshold, IR service remote control required.
  • With brightness-independent test mode for evaluating the detection zone.
  • With detection display in test mode.
  • Remote control possible via IR service remote control 6843.
  • Adjustment elements accessible on the front side.
  • Surveillance density: 72 sectors with 640 switching segments.
  • Switch-off delay: approx. 1 min. - 30 min. or short-time pulse 1s adjustable.
  • For Universal relay insert 6440/01 U.
  • For Universal e-contact insert 6440/04 U.
  • For Universal slave insert 6440/05 U.
  • Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.
  • Display elements: LED detection and status indication.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Brightness limit value: 5 Lux
  • Detection angle: 360 °
  • Dimensions: (L x W x D): 94 mm x 94 mm x 43 mm
  • Mounting height: 2 m - 4 m
  • The detection range with a central approach is reduced.
  • The range specifications refer only to an ambient temperature of 21°C.
  • Please order the respective flush-mounted insert separately.
  • RAL colour number: Ähnlich 9006

Order details

Article No.:6813-183-102
Order No.:2CKA006800A2862
Customs tariff number:85389099
Price group:29
Price:115,00 EUR plus VAT
Info sheet:Download PDF
