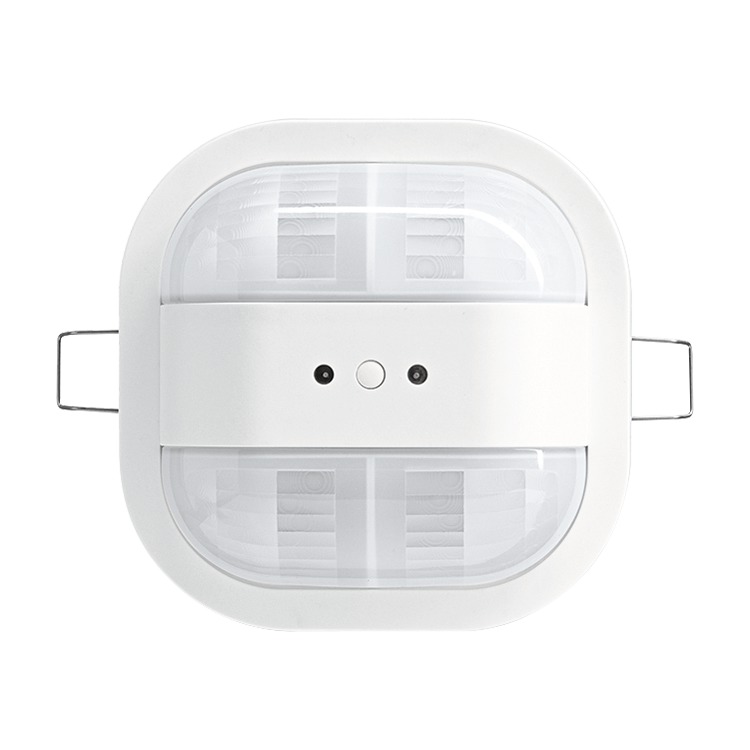

Functions at a glance

  • Detection range: rectangular.
  • For mounting height of 3 m: frontal toward the detector at a max. of 20 m x 3 m (at a max. of 10 m x 3 m per side). Crosswise toward the detector at a max. of 30 m x 3 m (max. of 15 m x 3m per side).
  • With integrated KNX bus coupler.
  • Mounting height 27 mm.
  • With 2 channels.
  • Targeted for connection and disconnection of lights bands depending on the room brightness.
  • Regulation in response to the movement possible.
  • Using the device as presence and/or movement detectors.
  • Detectors application with 2 power off stages.
  • Detectors application with integrated monitoring function.
  • Constant light switch with up to two independent channels.
  • Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area.

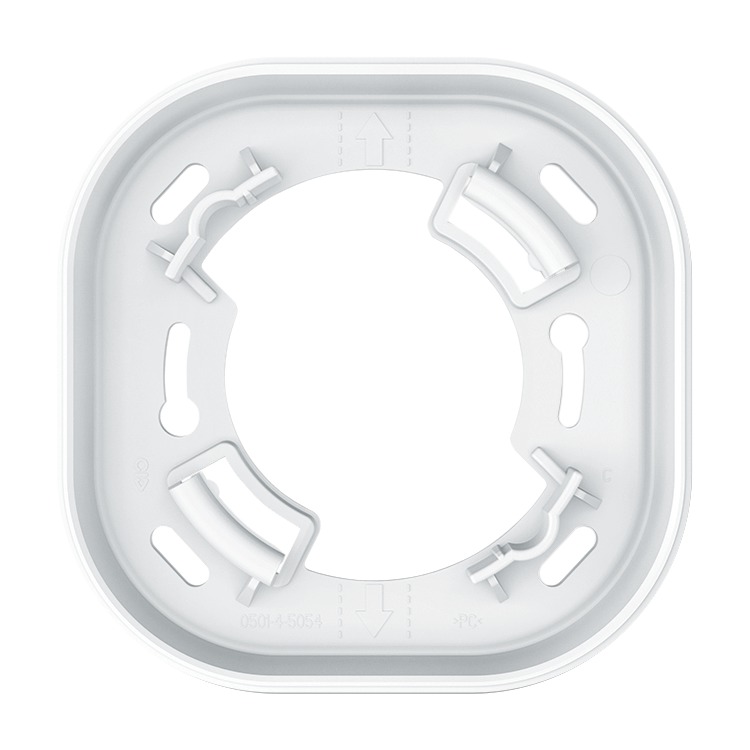

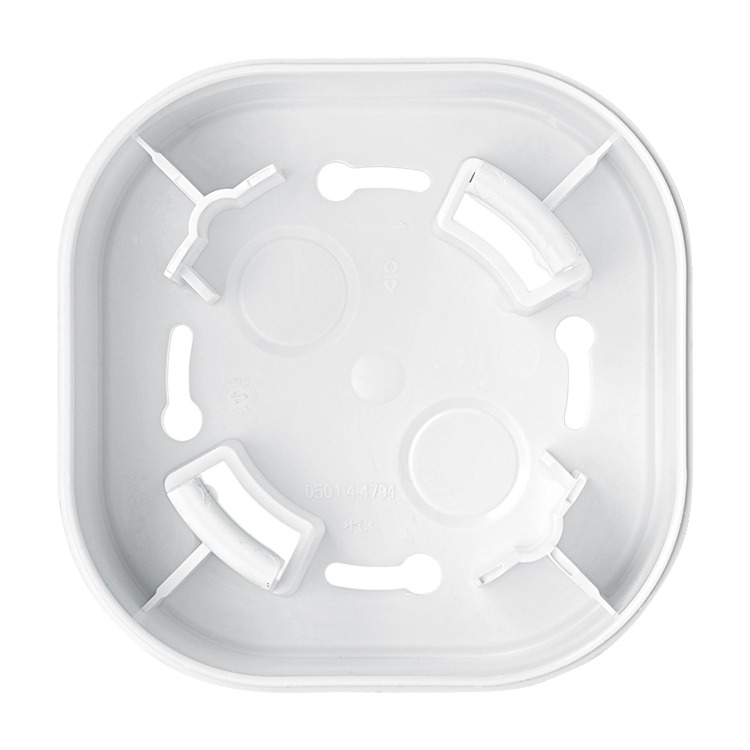

  • Ceiling mounting on suspended ceilings with spring clamps, on solid ceilings in surface-mounting boxes 6131/39-xxx(-500) or on VDE flush-mounted boxes with intermediate ring for VDE flush-mounted boxes 6131/38-xxx(-500).
  • Suitable for false ceilings with a board thickness from 9 to 25 mm.
  • Hole size: Ø 68 mm.
  • Cannot be installed in British Standard or VDE flushmounted box.
  • Recommendation: HaloX® 100 from Kaiser (article no. 1281-00) with corresponding cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg (article no. 97600501).
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Brightness limit value: 1 Lux
  • Dimensions: (L x W x D): 91 mm x 91 mm x 49 mm
  • Mounting depth: 22 mm
  • Mounting height: 2 m - 4 m
  • For software and description please check the current Online-Catalogue.

    Order details

    Article No.:6131/50-24
    Order No.:2CKA006132A0397
    Customs tariff number:85365080
    Price group:42
    Price:201,00 EUR plus VAT
    Info sheet:Download PDF
