Functions at a glance

• For switching lighting systems that depend on brightness and movement.
• Detection range (for installation height of 2.5 m, circular, up to 24 m in diameter).

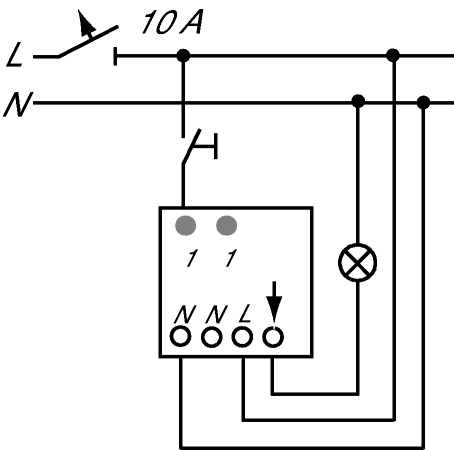

• Additional activation/deactivation possibility through pushbutton input.
• Adaptation of the detection range possible using the included masking elements.
• With brightness-independent test mode for evaluating the detection zone.
• With detection display in test mode.
• With automatic motion detection.
• With automatic sensitivity adaptation.
• Mounting possibility in combination with built-in installation boxes and device sockets.
• Ceiling installation using included dust protection socket.
• Adjustment elements accessible on the front side.
• Surveillance density: 215 sectors with 860 switching segments.
• Switch-off delay: approx. 10 sec - 30 min or short-time pulse adjustable.
• Remote control possible via IR service remote control 6843.
• Use outdoors possible due to combination with surface-mounted housing 6888.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 1 W

• Outputs: 1 Normally open contact, potential-bound
• suitable for: 230 V incandescent lamps
  • Rated output: 2000 W
• suitable for: Energy-saving bulbs
  • Rated output: 7 - 400 W

• Protection class (device): IP 40
• Temperature range (device): -20 °C - 45 °C
• Brightness limit value: 10 Lux
• Detection angle: 360 °

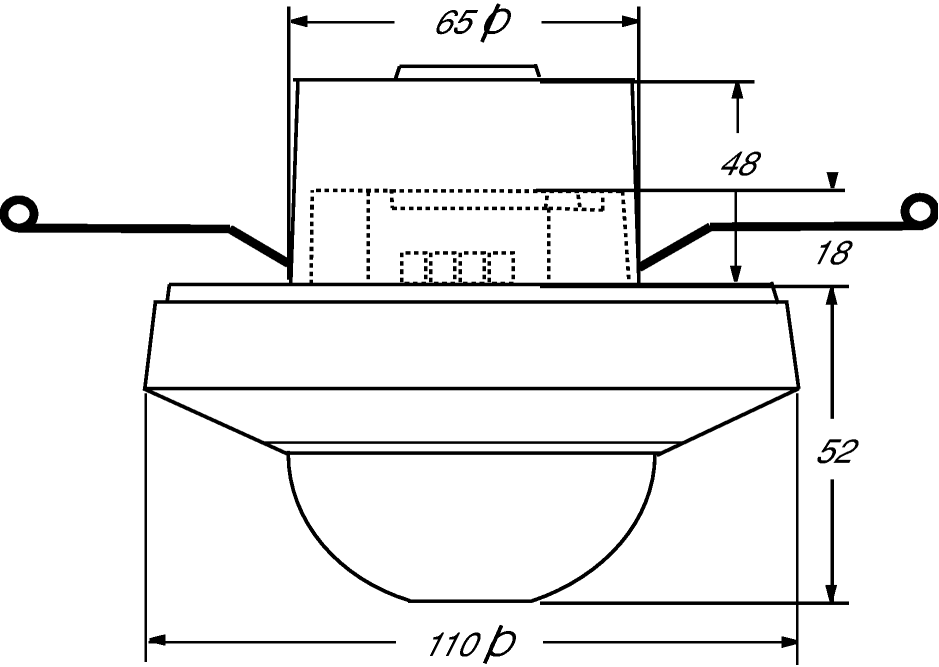

• Dimensions: (L x W x D): 110 mm x 110 mm x 70 mm
• Mounting depth: 48 mm
• Mounting height: 2 m - 3 m

• The maximum detection range depends on the mounting site and ambient conditions.
• The detection range with a central approach is reduced.
• In combination with a relay/contactor, an RC suppressor 6899 has to be used.

• RAL colour number: Ähnlich 9010
