Functions at a glance

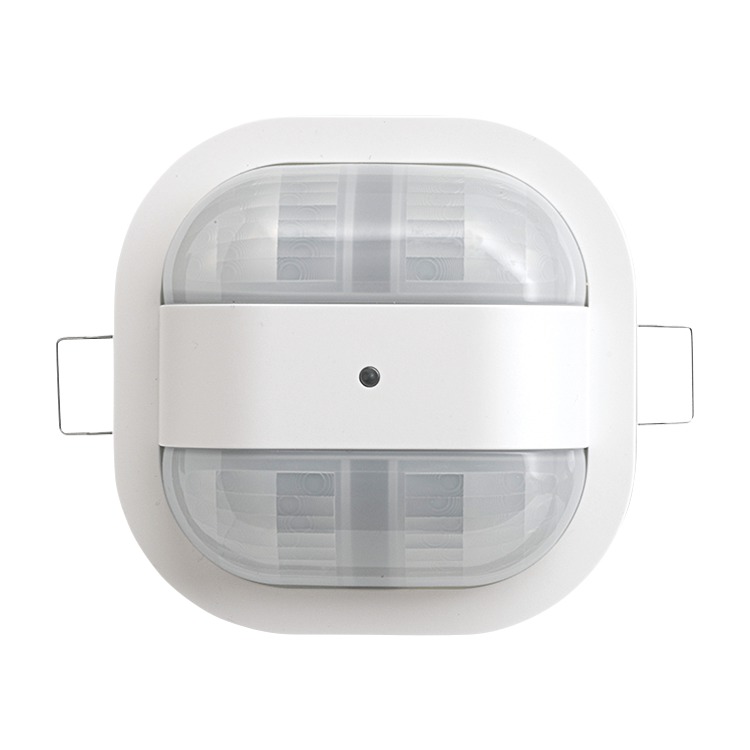

• Slave presence detector for extension of the detection range of master presence detectors.
• Detection range (for installation height of 3 m): rectangular
• Walking persons: crosswise to the detector 24 m x 3 m, frontal/lengthways to the detector 14 m x 3 m.
• Mounting height 27 mm.
• Ceiling installation using integrated spring bracket.
• Twist protection via additional quick tensioning.
• Surveillance density: 92 sectors with 368 switching segments.
• Suitable for false ceilings with a board thickness from 9 to 25 mm.
• Hole size: Ø 68 mm.

• Rated voltage: 110 V~230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 0.3 W

• Protection class (device): IP 40
• Temperature range (device): -5 °C - 45 °C
• Detection angle: 360 °

• Dimensions: (L x W x D): 94 mm x 94 mm x 76 mm
• Mounting depth: 49 mm
• Mounting height: 2 m - 4 m

• Recommendation: HaloX^® 100 from Kaiser (article no. 1281-00) with corresponding cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg
