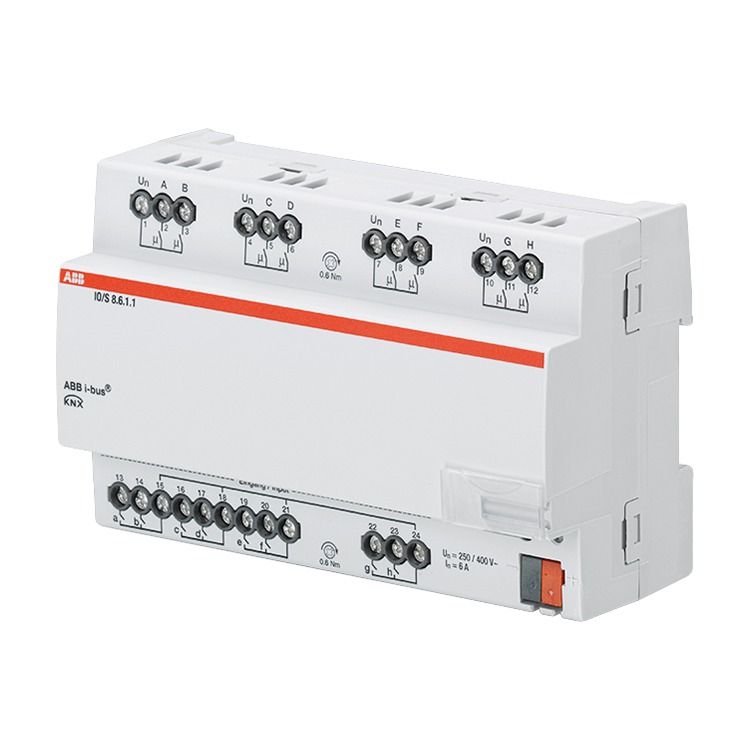

I/O actuator, 8gang, MDRC

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • The IO actuator open up new possibilities for objects that are to be used efficiently. The device was developed for these rooms, which can be typically found in hotels, hospitals, sheltered housing for senior citizens, and student dormitories. It covers all requirements for the electrical installation of this application and offers the following functions in compact form: • Switching the lighting • Switching of loads Due to the communication of the devices via the KNX bus, the centralised control functions and emergency calls from the rooms to a central unit can be realised.
  • Rated voltage: 230 V~, +10 % / -15 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 8 Normally open contact
  • suitable for: AC1
    • Rated current: 6 A
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
  • Module width: 8

    Order details

    Article No.:IO/S8.6.1.1
    Order No.:2CDG110169R0011
    EAN:4016779881081
    Customs tariff number:85371091
    Price group:44
    Price:449,00 EUR plus VAT
    Info sheet:Download PDF

    Related products

    Alternativ Product
    Page 1 of 2
    Item was added to the parts list.

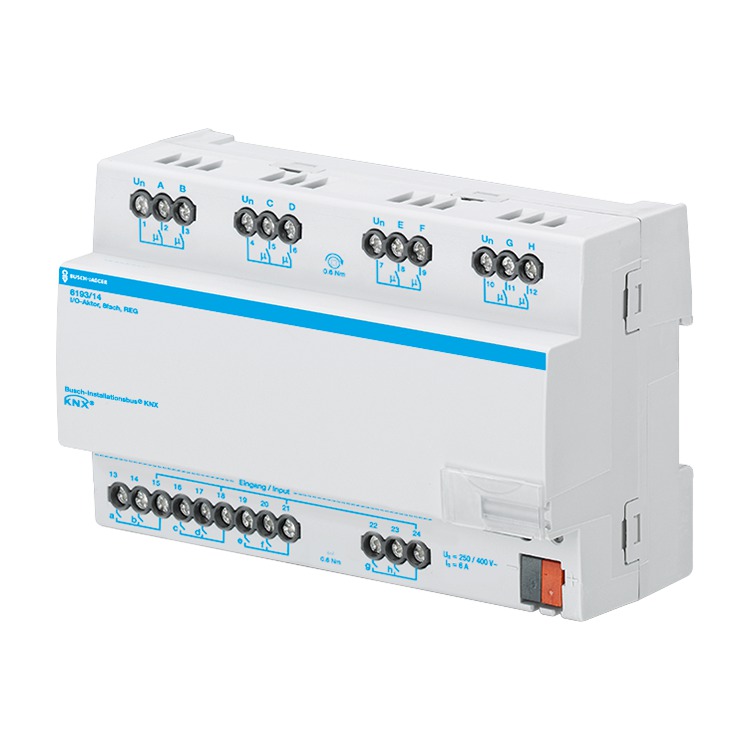

    I/O actuator, 8gang, MDRC 6193/14
