Functions at a glance

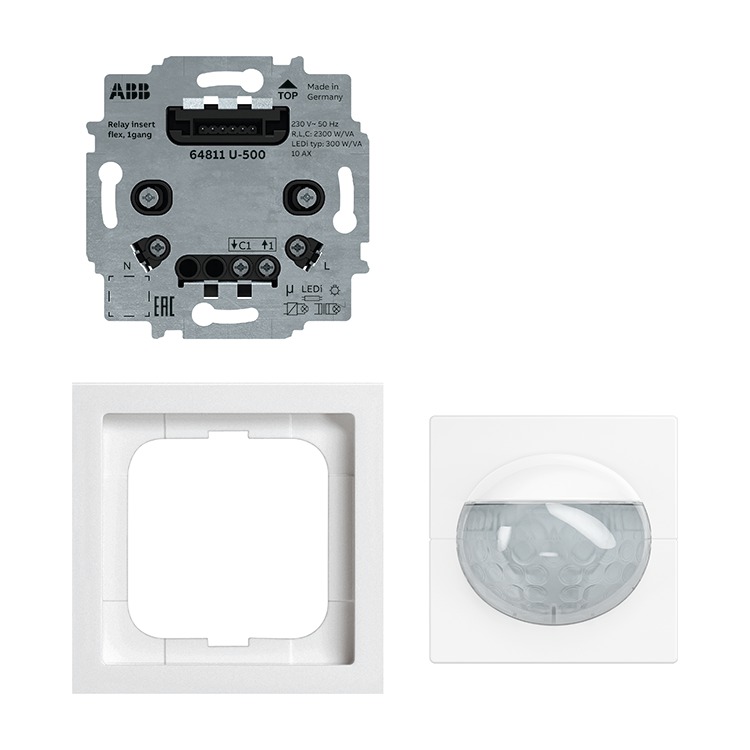

• Ready-to-install movement detector for flush-mounted installation (set packaged).
• Consisting of Busch-Watchdog 180 flex comfort sensor with multi-lens, 64764-84.
• Consisting of relay insert flex, 1gang, 64811 U.
• Consisting of future^® linear cover frames, 1gang 1721-184K.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz
• Power dissipation: 0.3 W

• Outputs: 1 Normally open contact, potential-bound
• suitable for: 230 V- LEDi, typical.
  • Rated output: 300 VA
• suitable for: 230 V incandescent lamps/230 V halogen lamps
  • Rated output: 2300 W
• suitable for: Fluorescent lamps
  • Rated output: 2300 VA
  • Rated current: 10 AX, cos φ0.9

• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C
• Detection range: frontal: 8 m, lateral: 7 m, at mounting height: 1.1 m
• Detection range 2: frontal: 8 m, lateral: 8 m, at mounting height: 2.2 m
• Brightness limit value: 5 Lux - Up to daytime operation
• Detection angle: 180 °

• Dimensions: (L x W x D): 80 mm x 80 mm x 57 mm
• Mounting depth: 25 mm
• Mounting height: 0.8 m - 1.2 m, alternatively: 2.2 m

• The range specifications refer only to an ambient temperature of 21°C.
• Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

• RAL colour number: Ähnlich 9016
