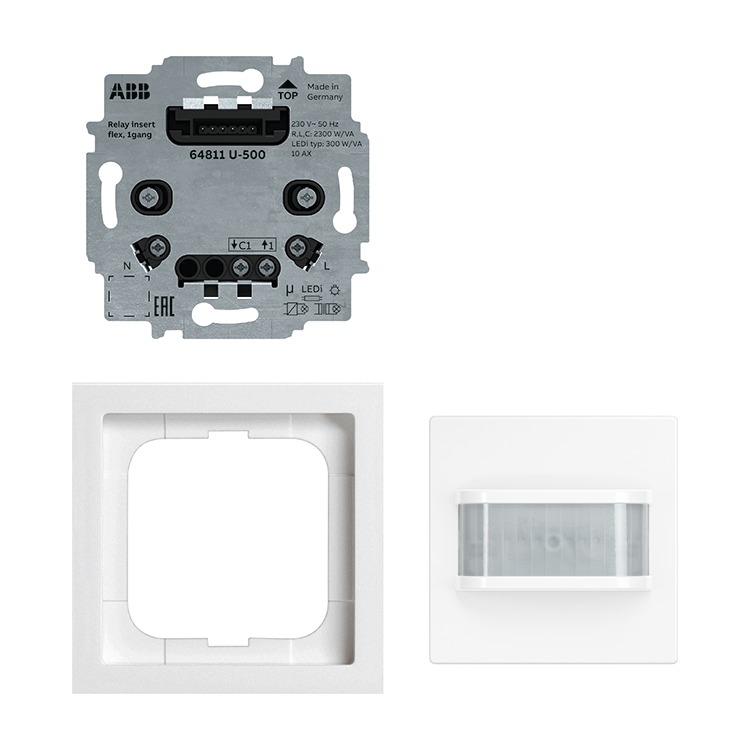

Busch-Watchdog 180 flex Complete set with Basic sensor multi-lens and relay insert

Available from May 2021

Functions at a glance

  • Ready-to-install movement detector for flush-mounted installation (set packaged).
  • Consisting of Busch-Watchdog 180 flex, basic sensor.
  • Consisting of relay insert flex, 1gang, 64811 U.
  • Consisting of future® linear cover frames, 1gang 1721-184K.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Power dissipation: 0.3 W
  • Outputs: 1 Normally open contact, potential-bound
  • Lastart: 230 V- LEDi, typical.
  • Rated output: 300 VA
  • Lastart: 230 V incandescent lamps/230 V halogen lamps
  • Rated output: 2300 W
  • Lastart: Fluorescent lamps
  • Rated output: 2300 VA
  • Rated current: 10 AX, cos φ0.9
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Detection range: frontal: 12 m, lateral: 12 m, at mounting height: 1.1 m
  • Brightness limit value: 5 Lux - Up to daytime operation
  • Detection angle: 180 °
  • Dimensions: (L x W x D): 80 mm x 80 mm x 48 mm
  • Mounting depth: 25 mm
  • Mounting height: 0.8 m - 1.2 m
  • The range specifications refer only to an ambient temperature of 21°C.
  • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
  • RAL colour number: 9016
  • Available from May 2021

Order details

Article No.:64761 UJ-84
Order No.:2CKA006800A2950
EAN:4011395295014
Customs tariff number:85365080
Preisgruppe:19
Preis:137,00 EUR plus VAT
Info sheet:Download PDF
