Room outdoor sensor
Premium customization

Functions at a glance

  • Ordering possible only in connection with the design ID.
  • Makes possible the individual configuration via a web configuration tool: tacteo-configurator.my.busch-jaeger.de.
  • Individual configuration with logos and/or ICONs and/or colours according to customer specifications.
  • Freely programmable function >Do not disturb<, >Bell< and >Make up room<.
  • Push switch function: switching / dimming / blind / sending values / scenes etc.
  • Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
  • With integrated KNX bus coupler.
  • With integrated temperature sensor.
  • With integrated proximity function.
  • The bus connection is provided via the enclosed bus terminal.
  • Number of bus subscribers: 1
  • Control element: freely programmable touch surfaces
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 86 mm x 86 mm
  • These tailor-made devices are excluded from being exchanged.

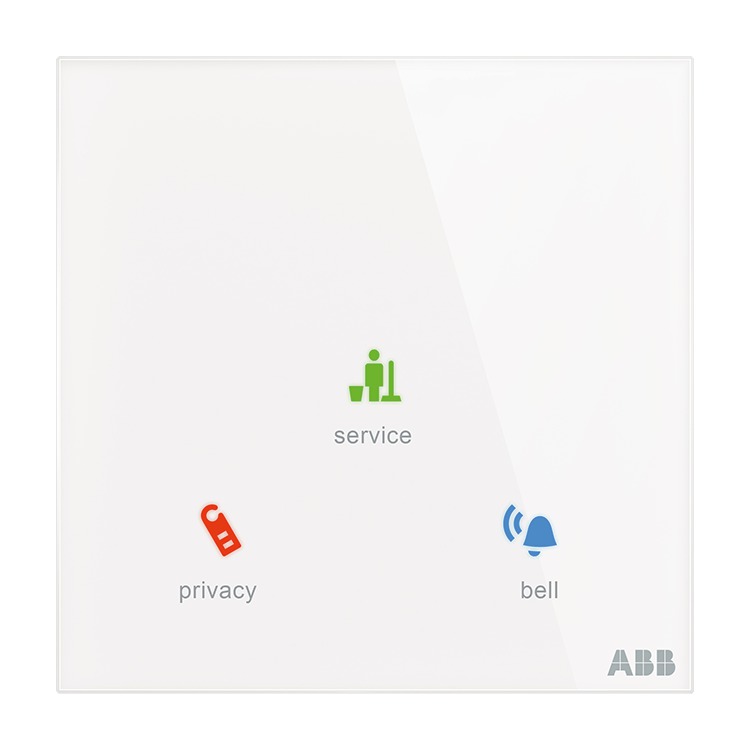

  • Figure shows the configured device.
  • Ordering possible only in connection with the specified design ID or the design ID received via the configurator.
  • For software and description please check the current Online-Catalogue.
  • Mounting is done in common standard flush-mounted device boxes, e.g. according to DIN49073, part 1
  • Delivery date upon request.

    Order details

    Article No.:TA/U3-CG
    Order No.:2CKA006300A1646
    EAN:4011395297308
    Customs tariff number:85365080
    Price group:42
    Price:267,00 EUR plus VAT
    Info sheet:Download PDF
