Functions at a glance

• Ordering possible only in connection with the design ID.
• Movement detector with up to 4 channels.
• The bus can be connected via enclosed terminal block.
• With integrated temperature sensor.
• With integrated KNX bus coupler.
• Number of bus subscribers: 1

• Control element: Setting via ETS application.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C
• Transport temperature range: -25 °C - 70 °C
• Detection range: frontal: 6 m, lateral: 6 m
• Detection range 2:
• Brightness limit value: 1 Lux
• Detection angle: 180 °

• Dimensions: (L x W x D): 86 mm x 86 mm x 30 mm
• Position for installation: vertical
• Mounting height: 1.1 m - 1.3 m

• These tailor-made devices are excluded from being exchanged.

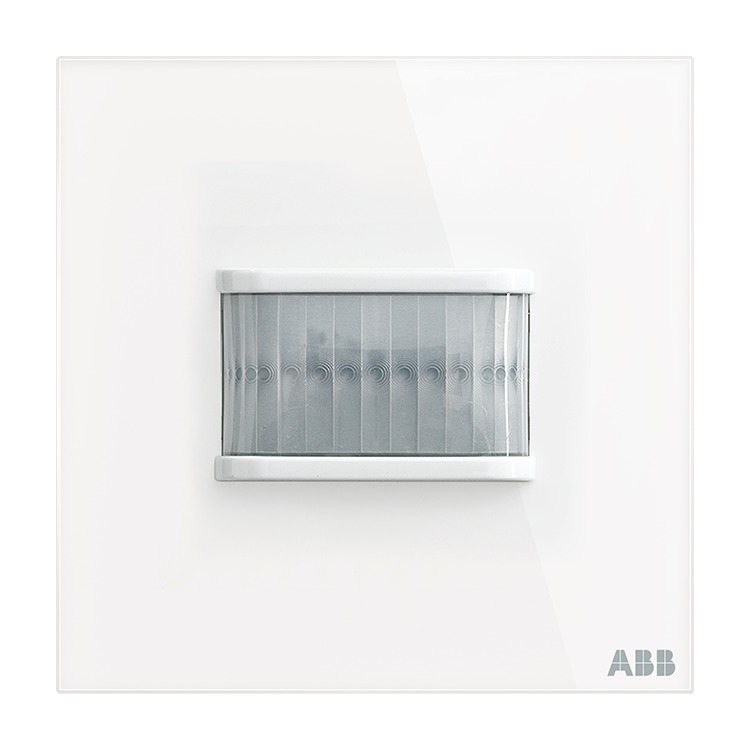

• Figure shows the configured device.
• Ordering possible only in connection with the specified design ID or the design ID received via the configurator.
• For software and description please check the current Online-Catalogue.
• Mounting is done in common standard flush-mounted device boxes, e.g. according to DIN49073, part 1
• Delivery date upon request.
