Touch control element, 4gang with room temperature controller
Premium customization

Functions at a glance

  • Freely configurable multifunction control element.
  • Makes possible the individual configuration via a web configuration tool:
  • Individual configuration with logos and/or ICONs and/or colours according to customer specifications.
  • With integrated proximity function.
  • Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
  • Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).
  • The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems.
  • The fan stage can be switched manually or in automatic mode.
  • Class of temperature controller 1
  • Contribution to space heating energy efficiency 1,0%.
  • With integrated KNX bus coupler.
  • Number of bus subscribers: 1 with separate 24 V auxiliary power supply
  • Control element: freely programmable touch surfaces
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Transport temperature range: -25 °C - 70 °C
    • These tailor-made devices are excluded from being exchanged.

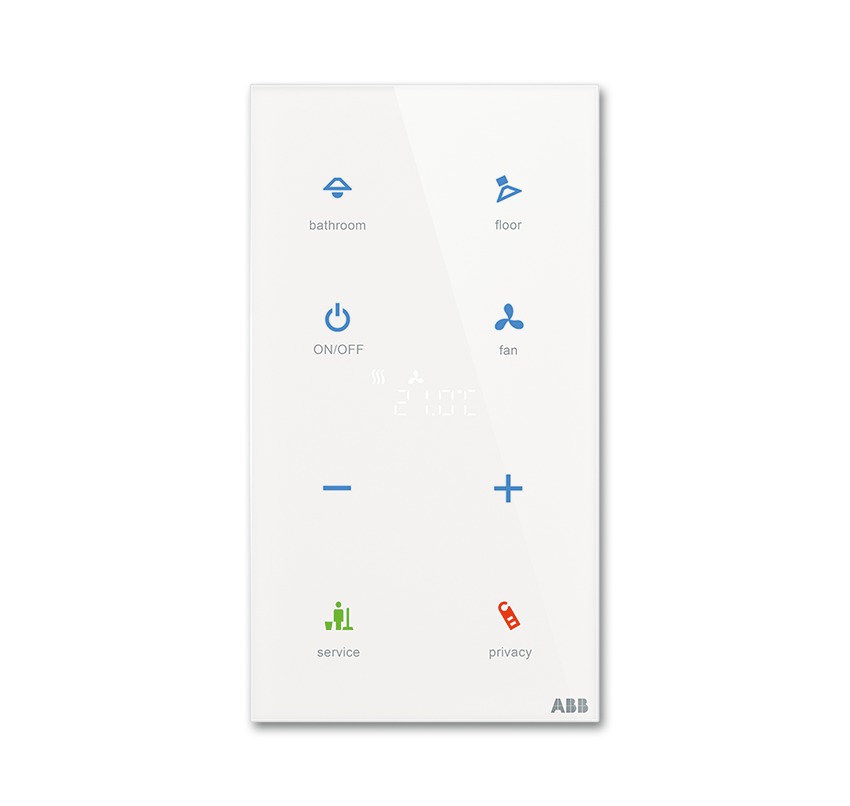

    • Figure shows the configured device.
    • Ordering possible only in connection with the specified design ID or the design ID received via the configurator.
    • For software and description please check the current Online-Catalogue.
    • Mounting is done in common standard flush-mounted device boxes, e.g. according to DIN49073, part 1
    • Delivery date upon request.

      Order details

      Article No.:TBR/U4-CG
      Order No.:2CKA006300A1648
      Customs tariff number:90321020
      Price group:42
      Price:500,00 EUR plus VAT
      Info sheet:Download PDF
