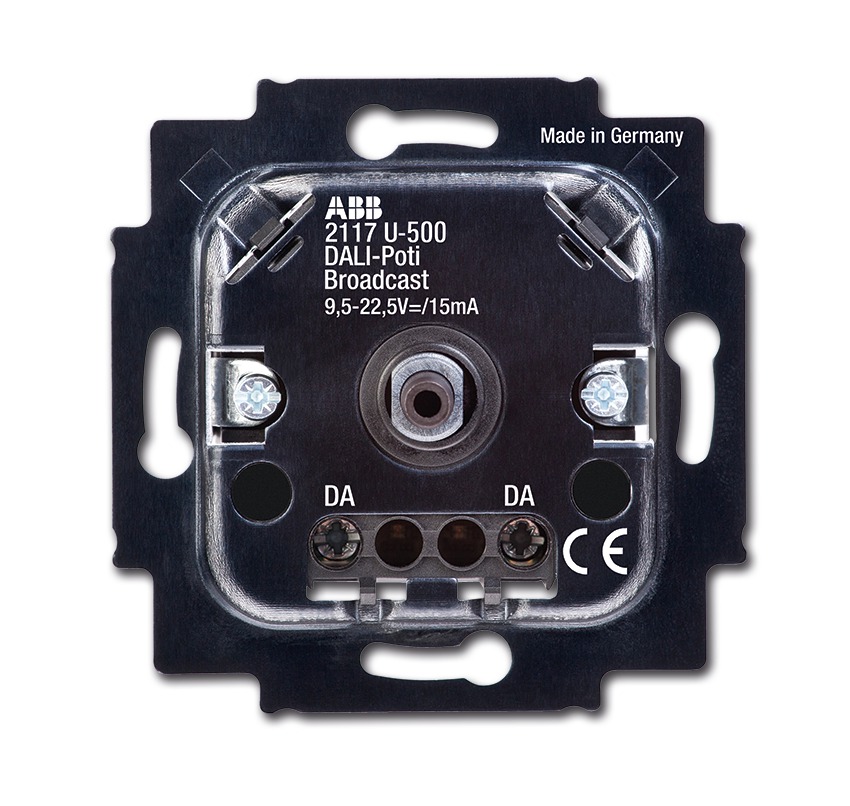

Functions at a glance

  • For DALI broadcast service (via central telegram).
  • For switching and dimming up to 64 DALI- devices like electronic ballasts and transformers with DALI-interface.
  • With rotary control and ON/OFF push operation.
  • Fool proved.
  • Brightness power-on level and backround brightness level adjustable, buffered.
  • With integrated LED illumination for orientation.
  • Color of orientation light adjustable (18 presets and OFF).
  • Up to 5 potentiometers are connectable in parallel.
  • Max. current consumption: 15 mA.
  • Not suitable for combining with other DALI sensors or central units of other manufacturers.
  • An additional DALI power supply is needed, e.g. by Tridonic, Philips, Helvar or 2117/11 U.
  • Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
  • Without cover plate.
  • Protection class (device): IP 20
  • Temperature range (device): 0 °C - 35 °C
    • Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)

      Order details

      Article No.:2117 U
      Order No.:2CKA006599A2985
      Customs tariff number:85334090
      Price group:19
      Price:61,40 EUR plus VAT
      Info sheet:Download PDF
