Functions at a glance

• 3 wire connection (neutral conductor required).
• For switching lighting systems.
• For Busch-Comfort switch control element 6815-to-101.
• For Busch-Presence detector sensors 6813- to -102.

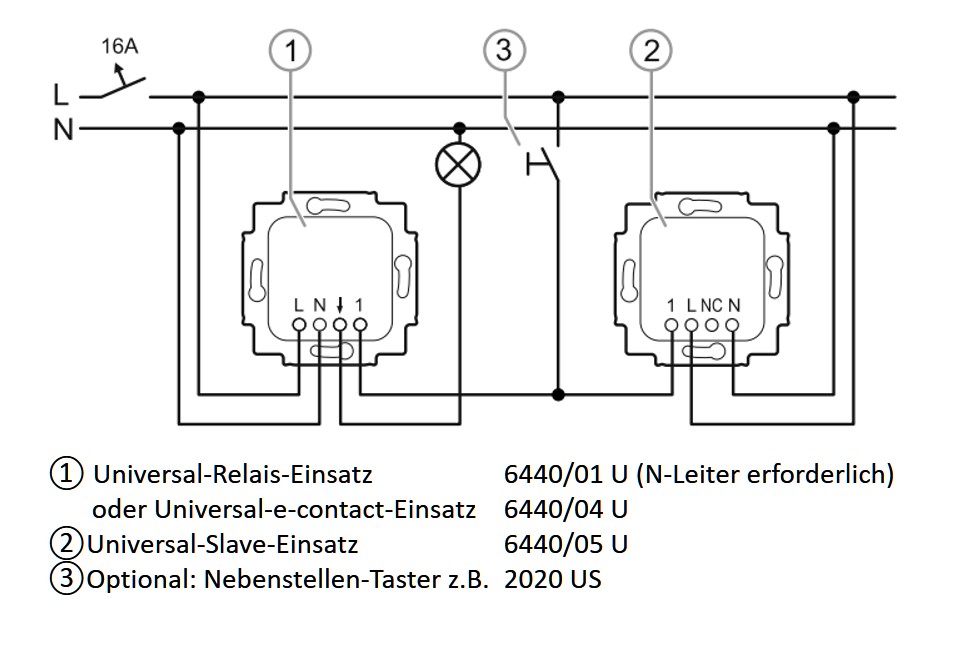

• Combinable with Universal slave insert 6440/05 U.
• Operation in 1gang 2way installations via push switch-unit for combination with flush-mounted units.
• Operation also possible via conventional push buttons (2020 US, 2021/6 UK).

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 0.3 W

• Outputs: 1 Normally open contact, potential-bound
• suitable for: 230 V- LEDi, typical.
  • Rated output: 100 W/VA
• suitable for: 230 V incandescent lamps/230 V halogen lamps
  • Rated output: 2300 W
  • Rated current: 10 A
• suitable for: Fluorescent lamps
  • Rated output: 2300 VA
  • Rated current: 10 AX, cos φ0.9

• Temperature range (device): -5 °C - 45 °C

• Dimensions: (L x W x D): 71 mm x 71 mm x 33 mm
• Mounting depth: 32 mm

• Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
