Functions at a glance

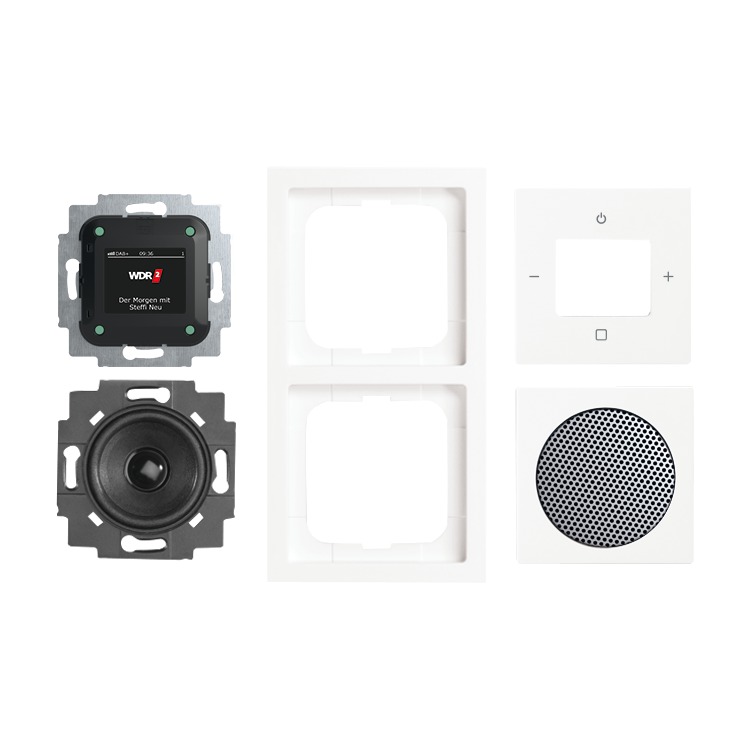

• Ready-to-install DAB+ radio alarm clock for mono operation (set packaged).
• With high-resolution colour display for showing additional information.
• With Bluetooth interface for music replay of mobile devices.
• Connection of external Bluetooth loudspeakers possible.
• Consisting of the Busch-Radio BTconnect DAB+ 8217 U-101.
• Consisting of speaker insert 8223 U.
• Consisting of the cover plate for Busch-Radio 8252-84-101.
• Consisting of the cover plate for the loudspeaker insert 8253-84.
• Consisting of 2gang future^® linear cover frames 1722-184K.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 0.4 W

• Protection class (device): IP 20
• Temperature range (device): 5 °C - 40 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 150 mm x 80 mm x 49 mm
• Mounting depth: 32 mm

• No claw. Screw-fixing via keyholes.
