Functions at a glance

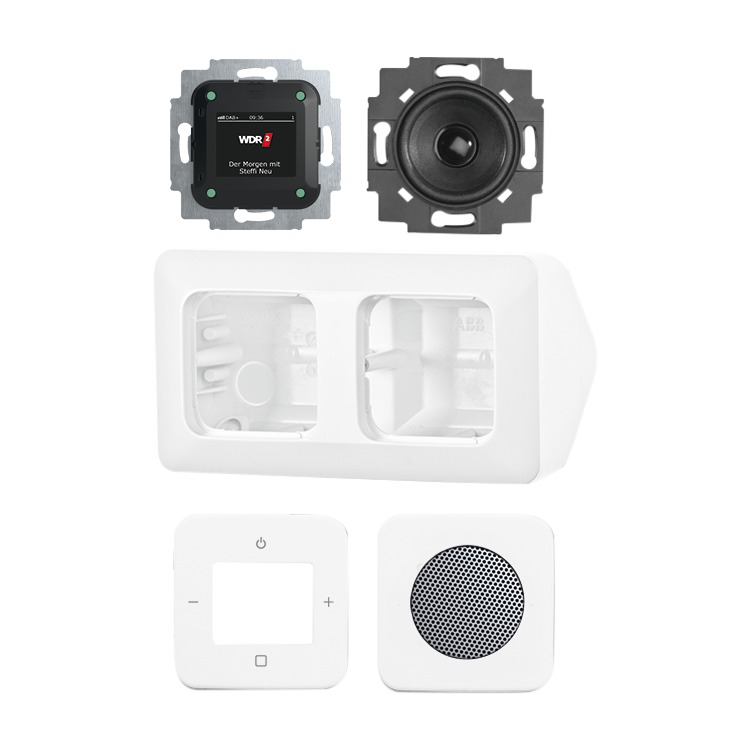

• Ready-to-install DAB+ radio alarm clock for mono operation (set packaged).
• With high-resolution colour display for showing additional information.
• Consisting of the Busch-Radio DAB+ 8215 U-101.
• Consisting of speaker insert 8223 U.
• Consisting of the cover plate for Busch-Radio 8252-214-101.
• Consisting of the cover plate for the loudspeaker insert 8253-214.
• Consisting of surface-mounted housing for corner mounting 1708-214 including 2gang cover frame.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 0.4 W

• Protection class (device): IP 20
• Temperature range (device): 5 °C - 40 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 156 mm x 85 mm x 70 mm

• No claw. Screw-fixing via keyholes.
