Busch-Radio DAB+, complete set

Lieferbar ab Januar 2022

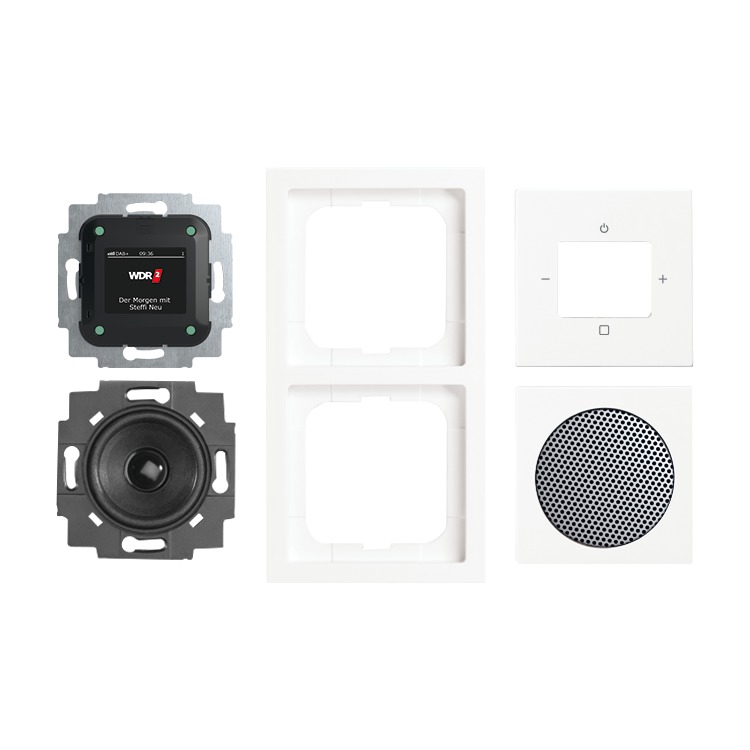

Functions at a glance

  • Ready-to-install DAB+ radio alarm clock for mono operation (set packaged).
  • With high-resolution colour display for showing additional information.
  • Consisting of the Busch-Radio DAB+ 8215 U-101.
  • Consisting of speaker insert 8223 U.
  • Consisting of the cover plate for Busch-Radio 8252-84-101.
  • Consisting of cover plate for speaker insert 8253-84.
  • Consisting of 2gang future® linear cover frame 1722-184K.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 0.4 W
  • Protection class (device): IP 20
  • Temperature range (device): 5 °C - 40 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 150 mm x 80 mm x 49 mm
  • Mounting depth: 32 mm
  • No claw. Screw-fixing via keyholes.
  • RAL colour number: 9016
  • Lieferbar ab Januar 2022

Order details

Article No.:8220 UJ-84-101
Order No.:2CKA008200A0233
EAN:4011395304464
Customs tariff number:85279200
Price group:19
Price:200,00 EUR plus VAT
Info sheet:Download PDF
