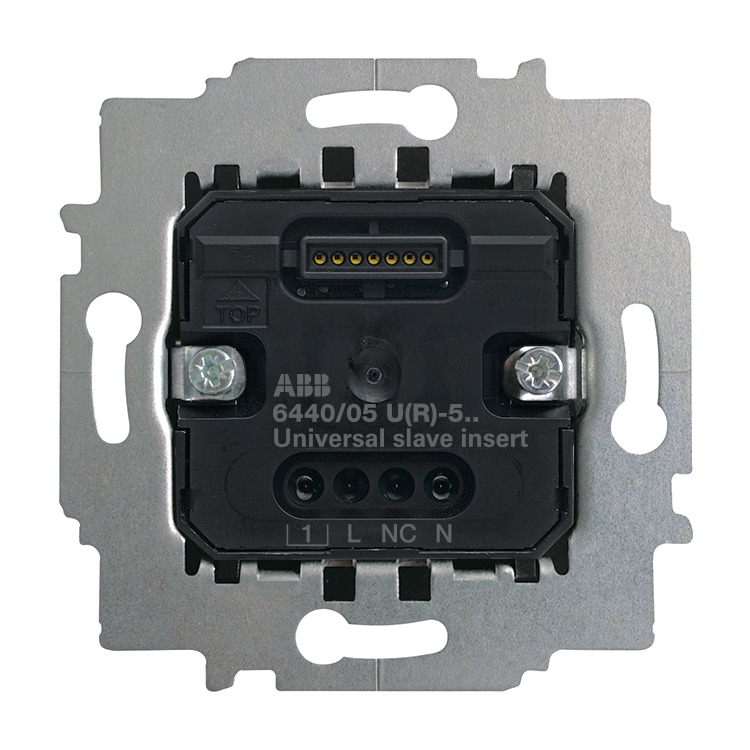

Functions at a glance

• 3 wire connection (neutral conductor required).
• For the extension of the Busch-Comfort switch or presence detector installations.
• For communication with Universal relay insert 6440/01 U.
• For communication with Universal e-contact insert 6440/04 U.
• For Busch-Comfort switch control element 6815-to-101.
• For Busch-Presence detector sensors 6813- to -102.

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 0.3 W

• Control/Signal outputs: 1 electronic output, potential-bound

• Temperature range (device): -5 °C - 45 °C

• Dimensions: (L x W x D): 71 mm x 71 mm x 33 mm
• Mounting depth: 32 mm

• Only in conjunction with standard flush-mounting boxes according to DIN 49073, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall or 3060 wallbox concrete)
