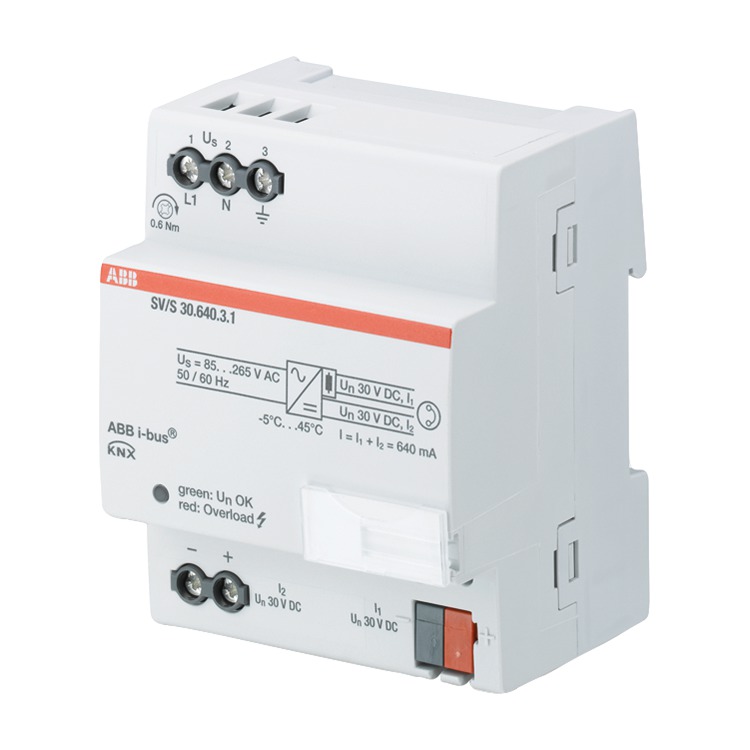

Power supply standard, 640 mA, MDRC

Take over in my parts list / tender specifications

Functions at a glance

  • The KNX power supply creates and monitors the KNX system voltage (SELV). The integrated choke disconnects the bus line from the power supply. The voltage output is short-circuit-proof and overload-protected. The two-colour LED indicates the status of the device. The device has an additional short-circuit-proof and overload-protected 30 V DC power output. This can be used to feed additional bus lines (in connection with a separate choke). The power supply has a wide-range input for the supply voltage in the range of 85 to 265 V AC, 50/60 Hz.

      Order details

      Article No.:SV/S 30.640.3.1
      Order No.:2CDG110167R0011
      EAN:4016779906210
      Customs tariff number:85044095
      Price group:45
      Price:352,00 EUR plus VAT
      Info sheet:Download PDF
