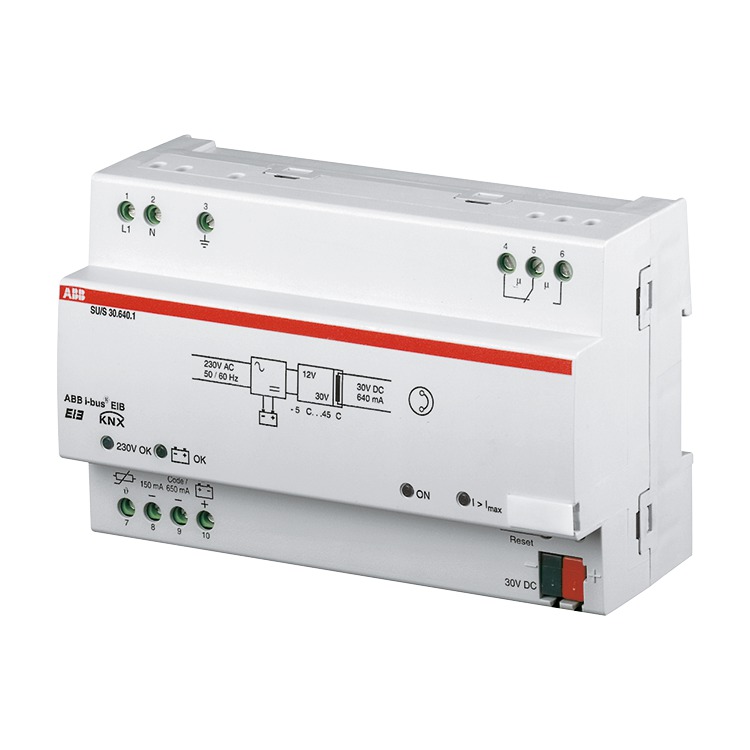

Functions at a glance

• With integrated choke for the generation and monitoring of the ABB i-bus^® KNX system voltage.
• Up to 2 batteries that buffer the power supply in case of a mains failure can be connected.
• In normal operation, the battery is charged by the power supply.
• With floating contact for the indication of faults.
• The bus can be connected via enclosed terminal block.

• Control element: Reset switch
• Display elements: Status indication via LEDs

• Rated voltage: 230 V~, +10 % / -15 %
• Secondary: 30 V, +2 V / -2 V
• Rated frequency: 50 Hz / 60 Hz
• Power dissipation: 6 W

• Outputs: 1 short-circuit-proof
• Rated current: 640 mA

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 108 mm x 64 mm
• Module width: 8

• 1 MW ≙ 18 mm.
• For software and description please check the current Online-Catalogue.
