Functions at a glance

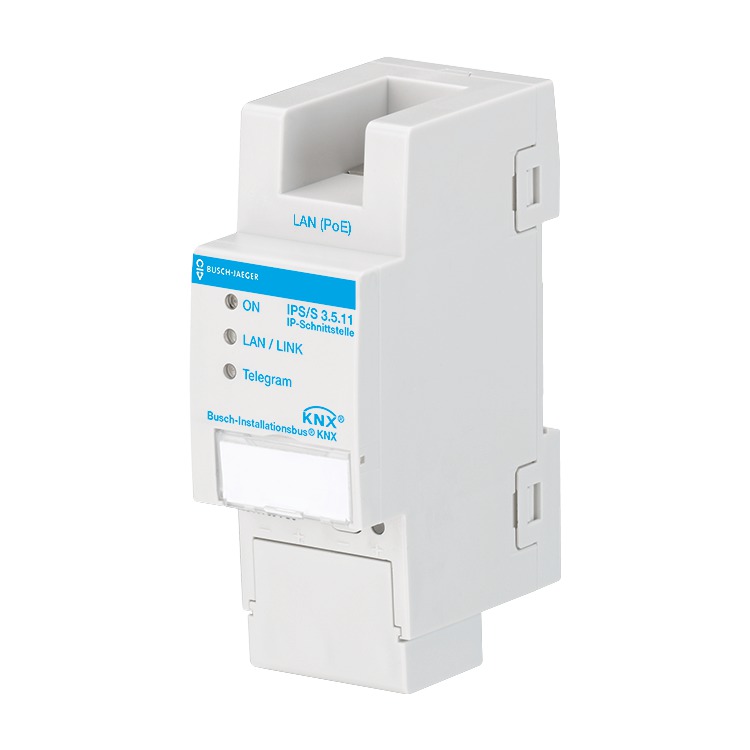

• The IP interface is the interface between KNX installations and IP networks and operates according to KNXnet/IP specifications (tunelling).
• The IP secure protocol is supported.
• With the ETS, KNX devices can be programmed via LAN.
• For this and for further clients 5 tunnelling servers are available.
• The IP address of the 6186/35 can be permanently assigned or received by a DHCP server.
• The power is supplied via 12 - 30 V DC or alternatively via Power-over-Ethernet (poE).

• Display elements: Status/control display via LEDs

• Rated voltage: 24 V-, +30 V / -12 V

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 36 mm x 64 mm
• Module width: 2
• Division units: 2
• Mounting depth: 68 mm
