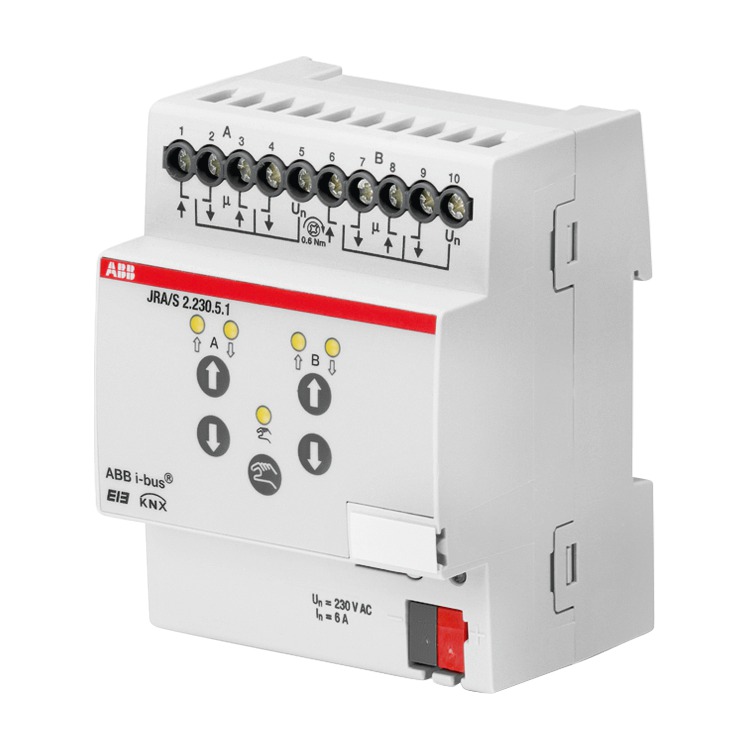

Blind/roller blind actuator with determination of movement time and manual control, 2gang, 230 V AC, MDRC

Take over in my parts list / tender specifications

Functions at a glance

  • are used to control independent 230 V AC drives via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the drive are detected automatically via current detection. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.
  • The outputs are inversely blocked.
  • Rated voltage: 230 V~, +10 % / -15 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 4 Change-over switch
  • suitable for: AC1/AC3
    • Rated current: 6 A
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
  • Module width: 4

    Order details

    Article No.:JRA/S 2.230.5.1
    Order No.:2CDG110124R0011
    EAN:4016779698436
    Customs tariff number:85371091
    Price group:44
    Price:243,00 EUR plus VAT
    Info sheet:Download PDF
