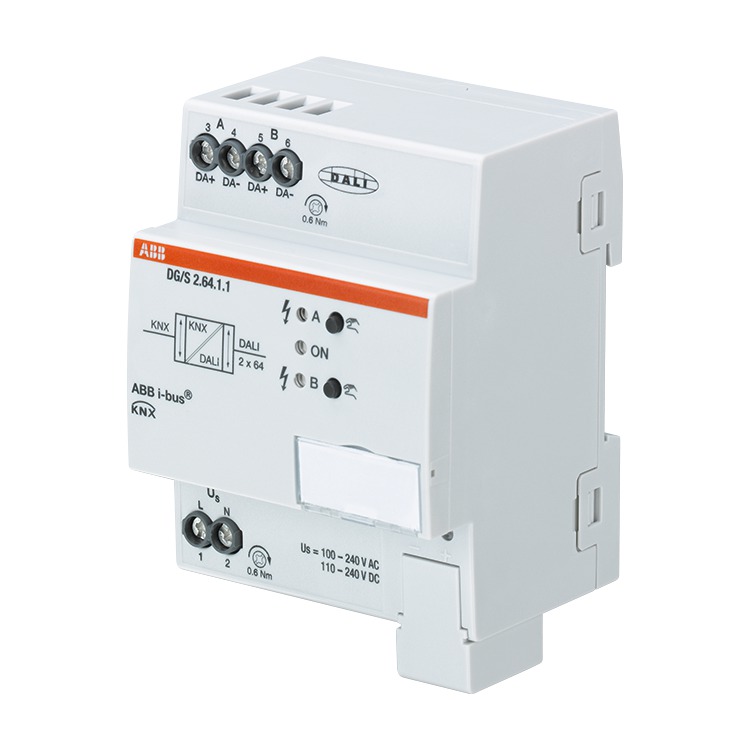

DALI gateway, basic, 1gang, MDRC

Functions at a glance

  • For activating DALI participants via ABB i-bus®. Two DALI outputs for a max. of 2 x 64 DALI participants. The DALI power supply is integrated. The activation per DALI participant (2 x 64) can be carried out via lamp groups (2 x 16) jointly in broadcast or via scenes (2 x 16). Extensive error and fault messages are available. DALI emergency light converters according to EN 62386-202 are supported. The emergency light converter can be used to trigger the function test and continuous test via KNX and the results made available on the KNX. Slave, staircase lighting, disabling and forced operation functions are integrated. The DALI telegram rate can be changed. For individual readdressing of DALI participants or group assignment a separate diagnostics and commissioning tool is available.

      Order details

      Article No.:DG/S
      Order No.:2CDG110198R0011
      Customs tariff number:85176200
      Price group:45
      Price:547,00 EUR plus VAT
      Info sheet:Download PDF
