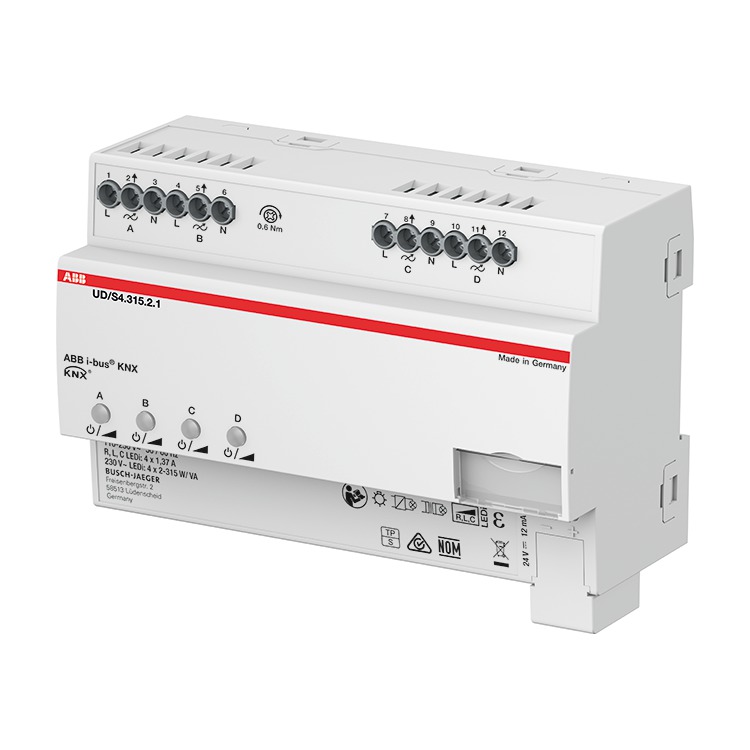

LED dimmer 4 x 315 W/VA
4/2gang

UD/S4.315.2.1
Take over in my parts list / tender specifications

Functions at a glance

  • Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi).
  • Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps.
  • Automatic load detection (can be deactivated).
  • Separate N-connection per channel.
  • Parallel connection of the outputs possible to increase the output power.
  • Outputs can be connected in parallel in groups.
  • Minimum load: 2 W.
  • Manual operation on device also possible without bus voltage or in an unprogrammed status.
  • Programming of the device also possible without applied 230V supply voltage.
  • Extensive test and diagnosis functions for the i-Bus tool.
  • Fast parameter setting in ETS using copyable channel templates.
  • With integrated bus coupler.
  • Nominal power at 230 V~ mains voltage:
  • 230 V~ incandescent and halogen lamps: 4 x 315 W/VA to 2 x 500 W/VA in trailing edge control, 4 x 120 W/VA to 2 x 200 W/VA in leading edge control.
  • Dimmable 230 V~ LEDi: 4 x 315 W/VA to 2 x 500 W/VA in trailing edge control, 4 x 120 W/VA to 2 x 200 W/VA in leading edge control.
  • Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA.
  • Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA.
  • Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 120 W/VA to 2 x 200 W/VA.
  • Control element: One LED button per channel (including a colour status indication) for switching ON and OFF, as well as dimming up and down.
  • Rated voltage: 110 V~230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 4
  • Protection class (device): IP20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
  • Module width: 8
  • Division units: 8
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.
  • Recommendation: Always use lamps of the same type and manufacturer.

    Order details

    Article No.:UD/S4.315.2.11
    Order No.:2CKA006197A0056
    EAN:4011395251959
    Customs tariff number:85389091
    Price group:45
    Price:628,00 EUR plus VAT
    Info sheet:Download PDF
